Docking
Docking

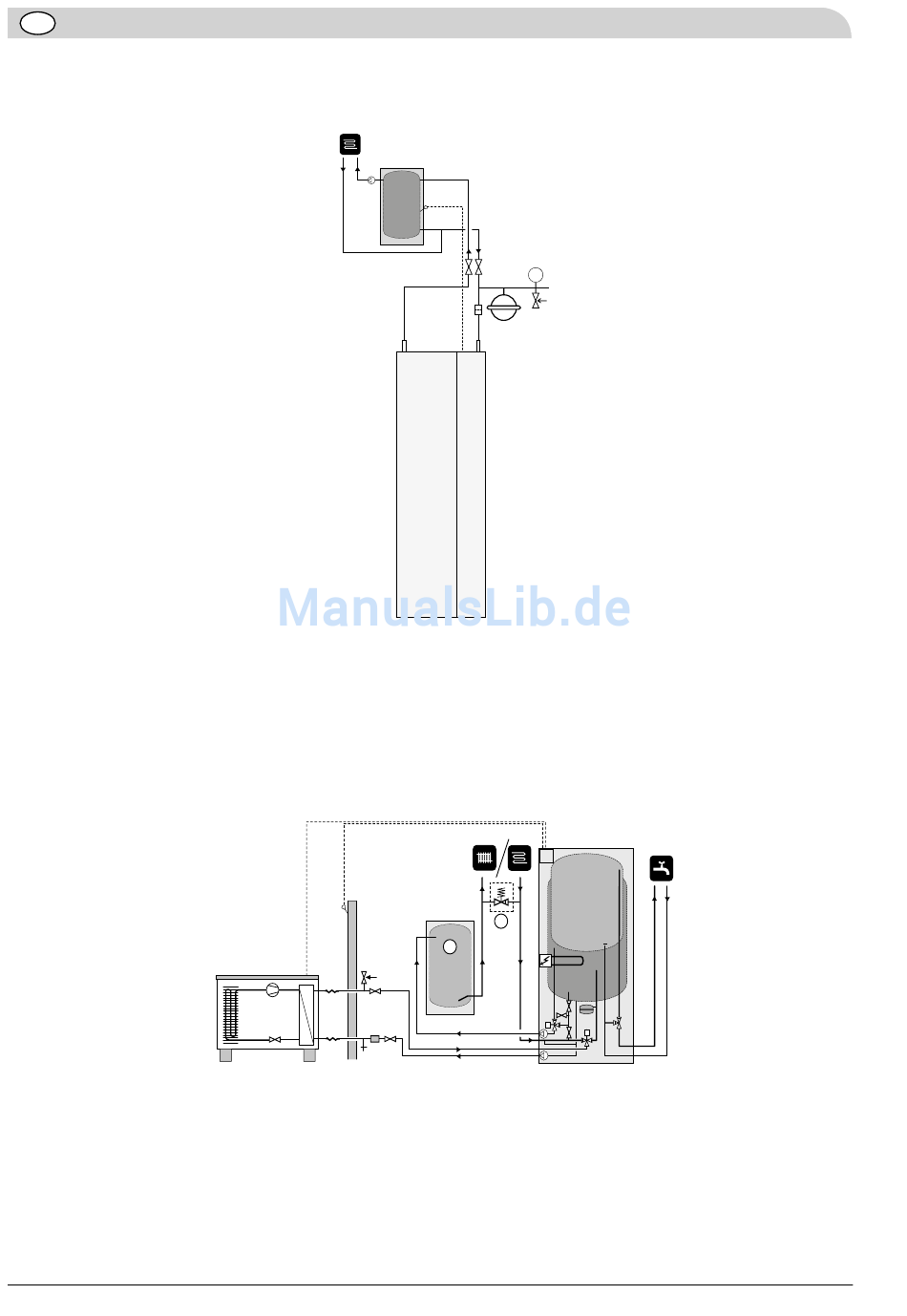

Volume increasing and reducing of heat spikes
This docking is used when the system volume is insufficient or to reduce heat spikes in the heating system. Select dia-
gonal connections (e.g. left up and right down). Plug any connections that are not used. An automatic by-pass valve
must be installed if there is a risk of potential 0-flow.
Volume increasing and reducing of heat spikes
In cases where the system volume in the heating system is below 20 l/kW (heat pump output at 7/45°C) and/or the
flow is choked uncontrolled, a UKV tank (120) is installed as a volume and flow increaser. Plug any connections that are
not used. An automatic by-pass valve must be installed if there is a risk of potential 0-flow.
Note! These are outline diagrams. Actual installations must be planned according to applicable standards.
8
UG
VP1
TV
15
VP1
76
UG
VP1
SÄV
AV
SF
TV
VP1
UKV 200-300 / COOLING
VP1
UKV
SÄV
AV
UKV
SF AV
P
52
120
35
44
63
44
RC
UKV
AV
49
120
49
120
RC
VVM 300
RC
99
VVM 300
VVM 300
RC
VVM 300
RC
SIT 2020
UKV 200-500
MAV UKV 200-500
MAV UKV 100
