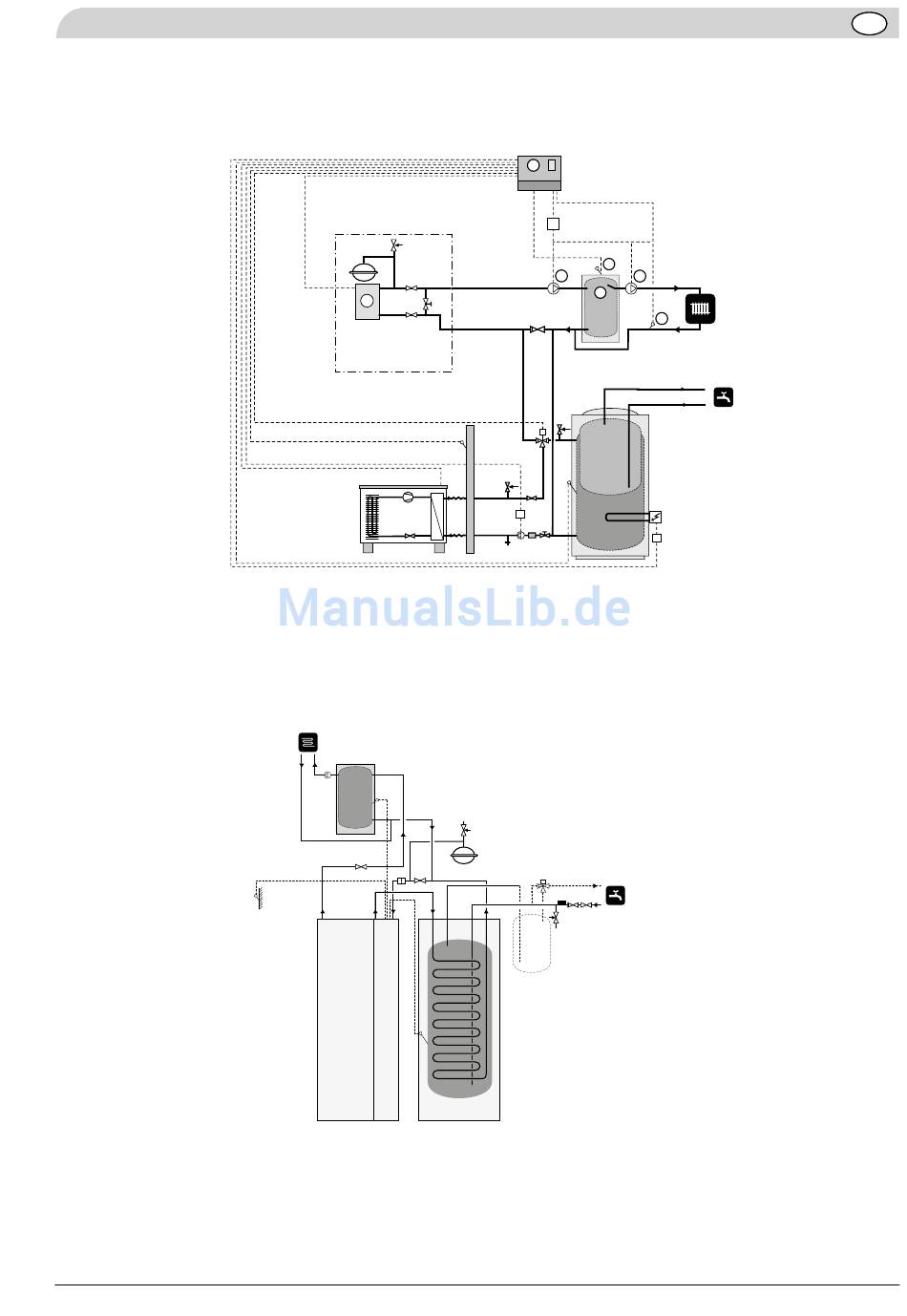

Volume and flow increaser
UKV:erna är inritade på olika vis i PBD och MAV. Dubbelkolla att det verkligen ska vara så.
In cases where the system volume in the radiator circuit is below 20 l/kW (heat pump output at 7/45 °C) and/or the
radiator flow is choked uncontrolled, a UKV tank (120) is installed as a volume and flow increaser. Plug any connections
that are not used. The T-coupling must be positioned as close to the UKV tank as possible.
Volume and flow increaser
For large houses and apartment buildings, industrial premises or similar with supply air batteries.
The accumulator tank is used as a buffer for the supply air coil. Plug any connections that are not used. The T-coupling
must be positioned as close to the UKV tank as possible. When you want to use external control for the heating sys-
tem, HP will charge UKV by means of floating condensing. The external control function manages the system from UKV
onwards.
Note! These are outline diagrams. Actual installations must be planned according to applicable standards.
15
52
VP1
38
76
99
VP1
UKV
99
VP1
UKV 200-300 / COOLING
95
44
88
31
31
63 81
SMO 10
93
89
35 35
120
94
SMO 10
93
FG
35 35
89
120
94
T
Docking GB
MAV UKV 200-500
MAV UKV 100
