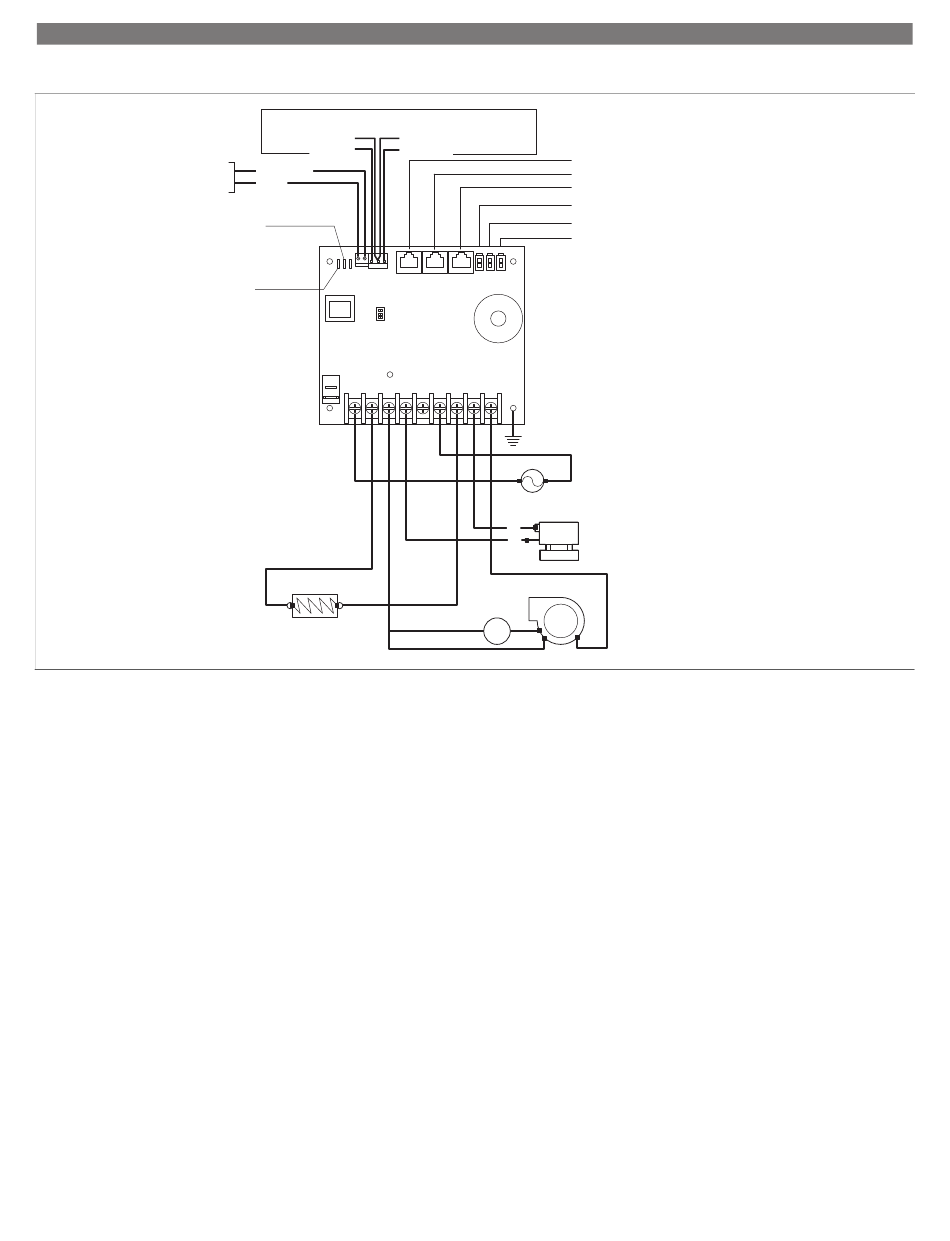

Förstå CW-kopplingsschemat

Optional
DC Blower
JP1 System Selection Jumper
JP5 Temperature Sensor Selection
Jumper
288
SMX DISPLAYS ONLY
COM
COM
For Humidistat
For Changeover Switch
0-10 VDC
GND
L2
L1
Electric Heat Strip
Display Cable Location
6-Pin Cable Location
Optional Inside Air Temperature Sensor Jack
Required Water Inlet Temperature Sensor
Optional Water-Out Temperature Sensor
Optional Outside Air Temperature Sensor
Ground
L2 L1
AC
L1
Water Valve
L2
Fan Run
Capacitor
Fan
L2 L1
