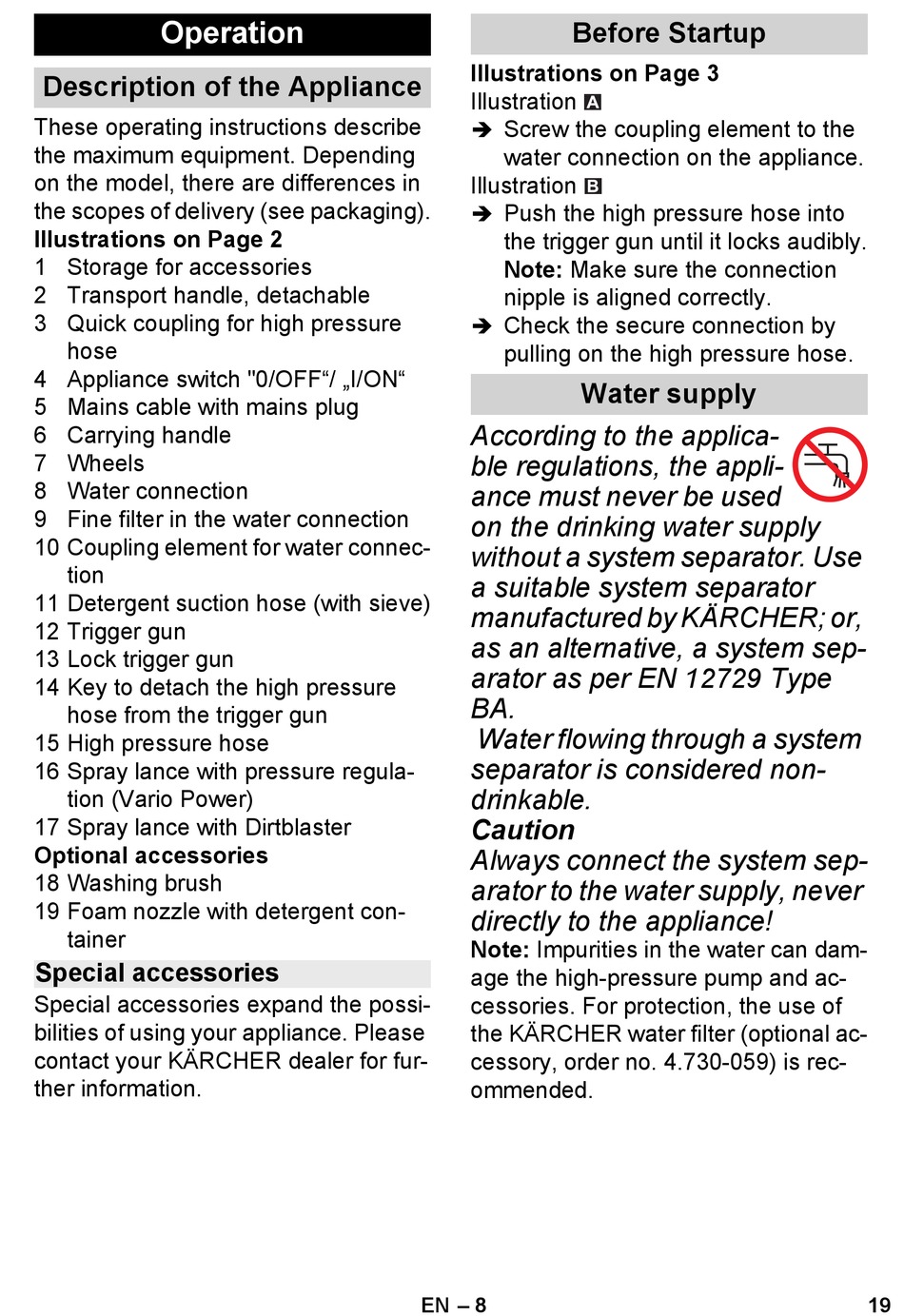

Operation

Description of the Appliance

These operating instructions describe
the maximum equipment. Depending
on the model, there are differences in
the scopes of delivery (see packaging).
Illustrations on Page 2
1 Storage for accessories
2 Transport handle, detachable
3 Quick coupling for high pressure
hose
4 Appliance switch "0/OFF"/ „I/ON"
5 Mains cable with mains plug
6 Carrying handle
7 Wheels
8 Water connection
9 Fine filter in the water connection
10 Coupling element for water connec-
tion
11 Detergent suction hose (with sieve)
12 Trigger gun
13 Lock trigger gun
14 Key to detach the high pressure
hose from the trigger gun
15 High pressure hose
16 Spray lance with pressure regula-
tion (Vario Power)
17 Spray lance with Dirtblaster
Optional accessories
18 Washing brush
19 Foam nozzle with detergent con-
tainer
Special accessories
Special accessories expand the possi-
bilities of using your appliance. Please
contact your KÄRCHER dealer for fur-
ther information.

Before Startup

Illustrations on Page 3
Illustration
Screw the coupling element to the

water connection on the appliance.
Illustration
Push the high pressure hose into

the trigger gun until it locks audibly.
Note: Make sure the connection
nipple is aligned correctly.
Check the secure connection by

pulling on the high pressure hose.

Water supply

According to the applica-
ble regulations, the appli-
ance must never be used
on the drinking water supply
without a system separator. Use
a suitable system separator
manufactured by KÄRCHER; or,
as an alternative, a system sep-
arator as per EN 12729 Type
BA.
Water flowing through a system
separator is considered non-
drinkable.
Caution
Always connect the system sep-
arator to the water supply, never
directly to the appliance!
Note: Impurities in the water can dam-
age the high-pressure pump and ac-
cessories. For protection, the use of
the KÄRCHER water filter (optional ac-
cessory, order no. 4.730-059) is rec-
ommended.
