4.0 OPERATION

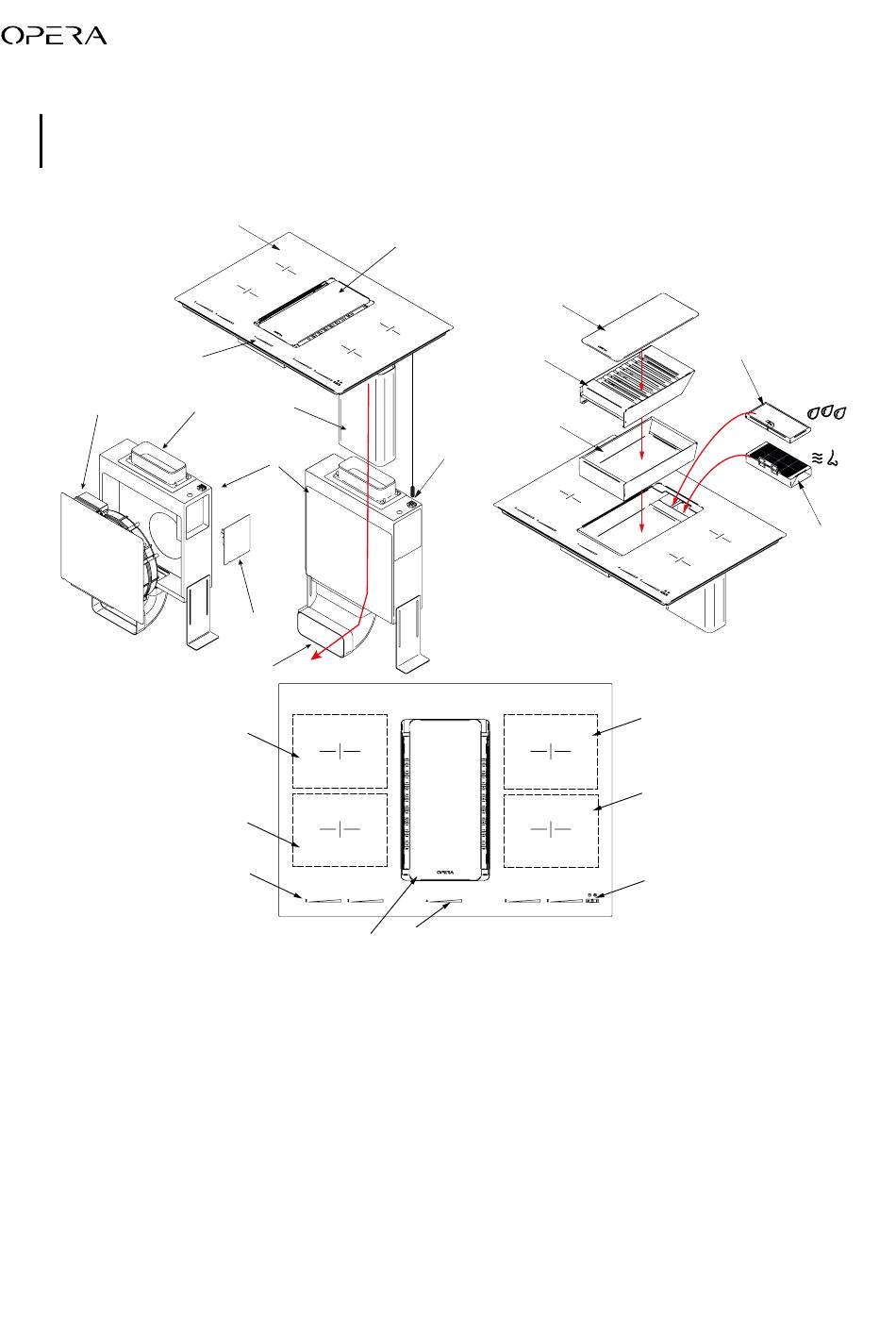

4.1 SYSTEM DESCRIPTION
7
1.
Downdraft hob
2.
Touch control panel
3.
Air inlet glass
4.
Naber canal
5.
Blower housing for B/C version
6.
Blower housing outlet nozzle
7.
Blower panel
8.
Motor Control Unit (MCU)
9.
Blower housing inlet nozzle
10.
Fan-cooking hob connection cable
Filter installation sequence: 11 - 12 - 13 - 14 - 3
44 | ASPIRATION HOB
1
2
9
4
5
8
6
Airflow
16
15
17
3
10
18
20
11.
Carbon filter (only in recirculation mode)
12.
Grease filter
13.
Water collector
14.
Condensation filter
15.
Front induction cooking zone
16.
Rear induction cooking zone
17.
Left operating panel (touch control)
18.
Fan operating panel (touch control)
19.
Right operating panel (touch control)
20.
Fan
3
14
13
16
15
19
12
11
