HOMCOM 824-122V90 Bedienungsanleitung Seite 5

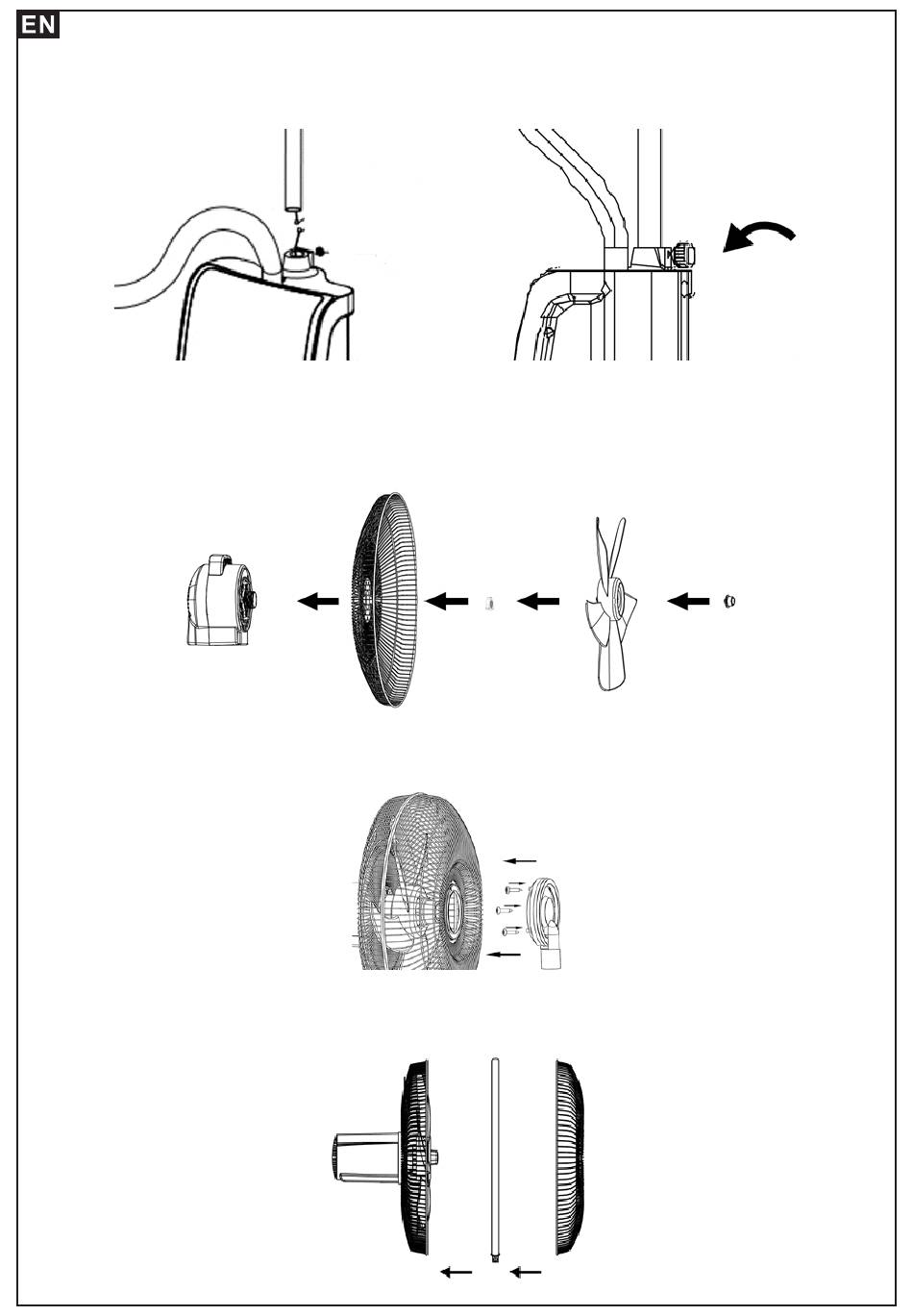

• Connect power connection plug-in terminals (15), and put it into the motor holder part
(14) in main body (17), and tight up by holder fixed screw (16).
• Install the back grill (7), and tight up by grill lock nut (6) on the motor cover (12).
Install the blades (5) on to the motor shaft (8), and anticlockwise by blade lock nut (4).
•
Install misting board (1) on the front grill (2) and screw up by misting board lock screws
•
(3).
Put the front grill (2) and back grill (7) together, and to fasten grill ring by grill lock nut
•
(11).
