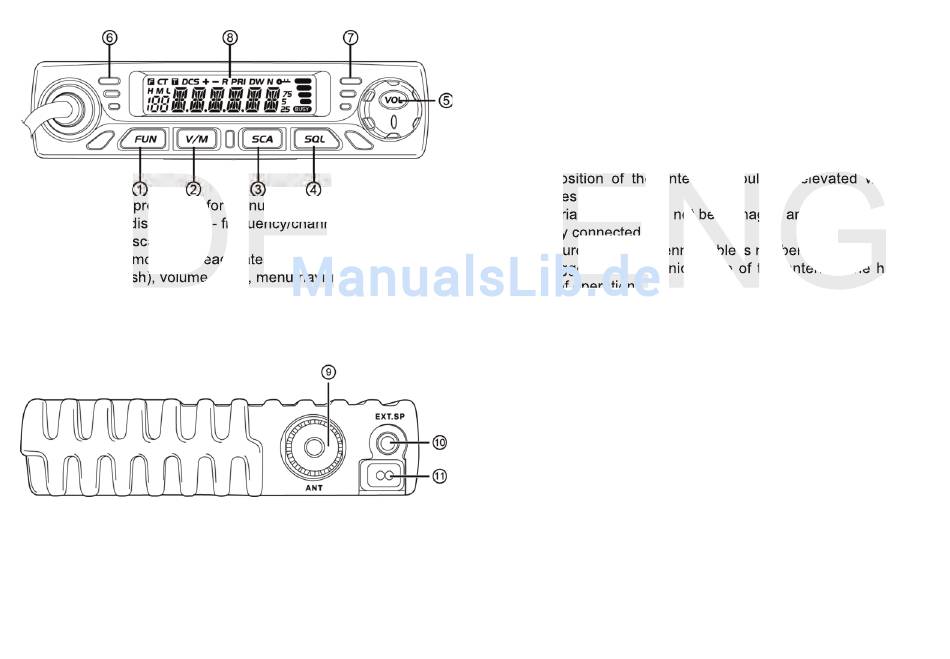

1 FUN key, press long for menu activation
2 V/M key, display type - frequency/channel/name
3 SCA key, scan
4 SQL key, monitor - deactivates squelch
5 on/off (push), volume (turn), menu navigation
6 display relative rx signal strength
7 display relative tx signal strength
8 LCD
9 PL antenna jack
10 3.5 mm jack for external speaker
11 power supply cable
key combination - press shorty, one after the other:

CTCSS/DCS

: FUN key followed by the SQL key,
more infos see CTCSS/DCS
key lock : FUN key followed by on/off key,
more infos see key lock
scan list add/del : FUN key followed by SCA key, delete/add the
channel from/to the scan list - deleted channels
are marked with an additional dot in the display.
18

elements

Installation of a CB antenna
The antenna is one of the most critical parts in the setup. The type
of antenna and its location has a great effect on the range of opera-
tion. Please consider the following criteria for selection of the best
location and the installation of your antenna:
> The antenna has to be designed for the according frequency range
(450-470 MHz / 136-174 MHz.
> The position of the antenna should be elevated without any
obstacles nearby.
> The aerial cable should not be damaged and the plugs should be
properly connected.
> Make sure that the antenna cable is not bent.
> The bigger the mechanical size of the antenna, the higher the
range of operation.
Please consider:
> The antenna should be fixed in the center of a big body-part, e.g.
the trunk.
> The mobile antenna coil should have the closest possible contact
with a conducting metallic surface of the bodywork of the car.
There are other possibilities to fix the antenna onto the car without
having to drill a hole into the bodywork of your car, e.g. mounting the
antenna with a antenna holder onto the gutter or the trunk. Magnetic
mount antennas (with an magnetic base) or windshield antennas,
which are glued onto the glass, are also alternatives.
> All connected cables including the antenna cable must not exceed
a length of 4.5 m.

SETUP

19
