1 The device can be set up freely or mounted using the housing cutouts.
2 Connect the supplied P-Con cable to the device's power input (6) and then connect the effects devices to the
FX SHOT 4 via the P-Con outputs (5).
Notes: After inserting the P-Con plug into the socket, turn it to the right until it clicks into place. To remove it,
pull back the safety latch on the plug and turn the plug to the left. A P-Con plug must not be inserted or
removed under load or under voltage. Therefore, disconnect the power plug before establishing the P-Con
connection.
3 To prepare the controller for use, first unlock the control panel by turning the main key switch to the ON
position (1). The status LED lights up.
4 Turn the safety switch for each channel to the ON position (2) to activate the channels.
5 Pressing the corresponding red trigger switch (3) activates the effects unit.
Turn the main key switch to the OFF position (1) when the device is not in use.
6

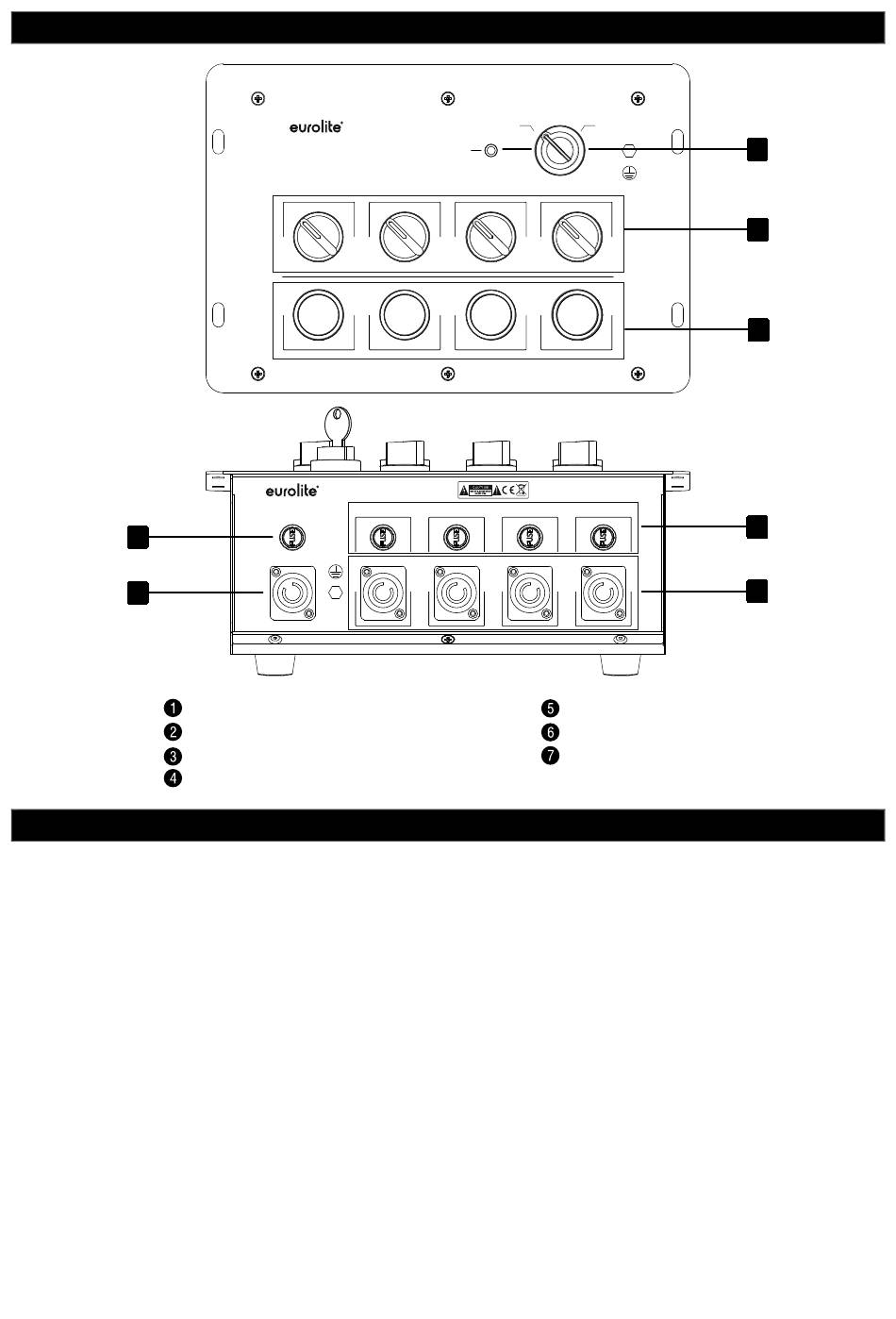

OPERATING ELEMENTS AND CONNECTIONS

4
FX SHOT
CONTROL
1
OFF ON
FX SHOT
FUSE
T8A 250V
POWER INPUT
230V~ 50Hz 3W
Key switch with status LED
Fire safety key switches
Fire switches
Fuse holders to protect the outputs
OFF
ON
2 3
OFF ON OFF ON
ARM
FIRE
4
CONTROL
FUSE
4 3 2
F2A 250V
POWER OUTPUT

SETUP

14 • EN
POWER
ON
4
OFF ON
