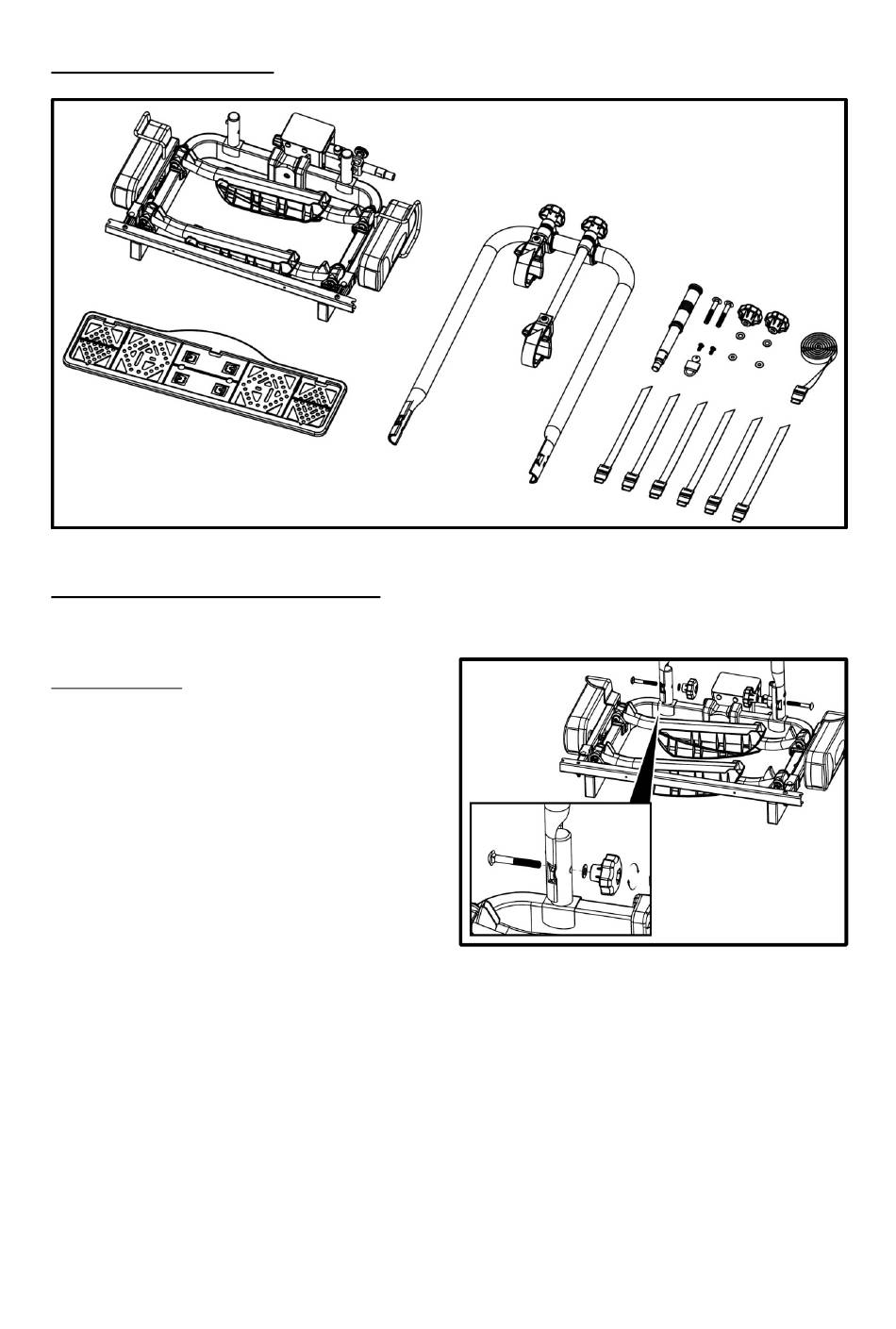

SCOPE OF DELIVERY
PREPARATION FOR FIRST USE
The bike carrier still has to be partially assembled.
The U-frame:
Slide the U-frame against the outside of
the U-frame holders of the base frame.
Secure this U-frame with the supplied
carriage bolts (M8x60), washers and
plastic rotary knobs. Make sure the
plastic rotary knobs are on the inside
(see drawing).
Please note: firmly tighten both rotary
knobs so that the U-frame will come on
its place well.
