Remote control terminal (optional)

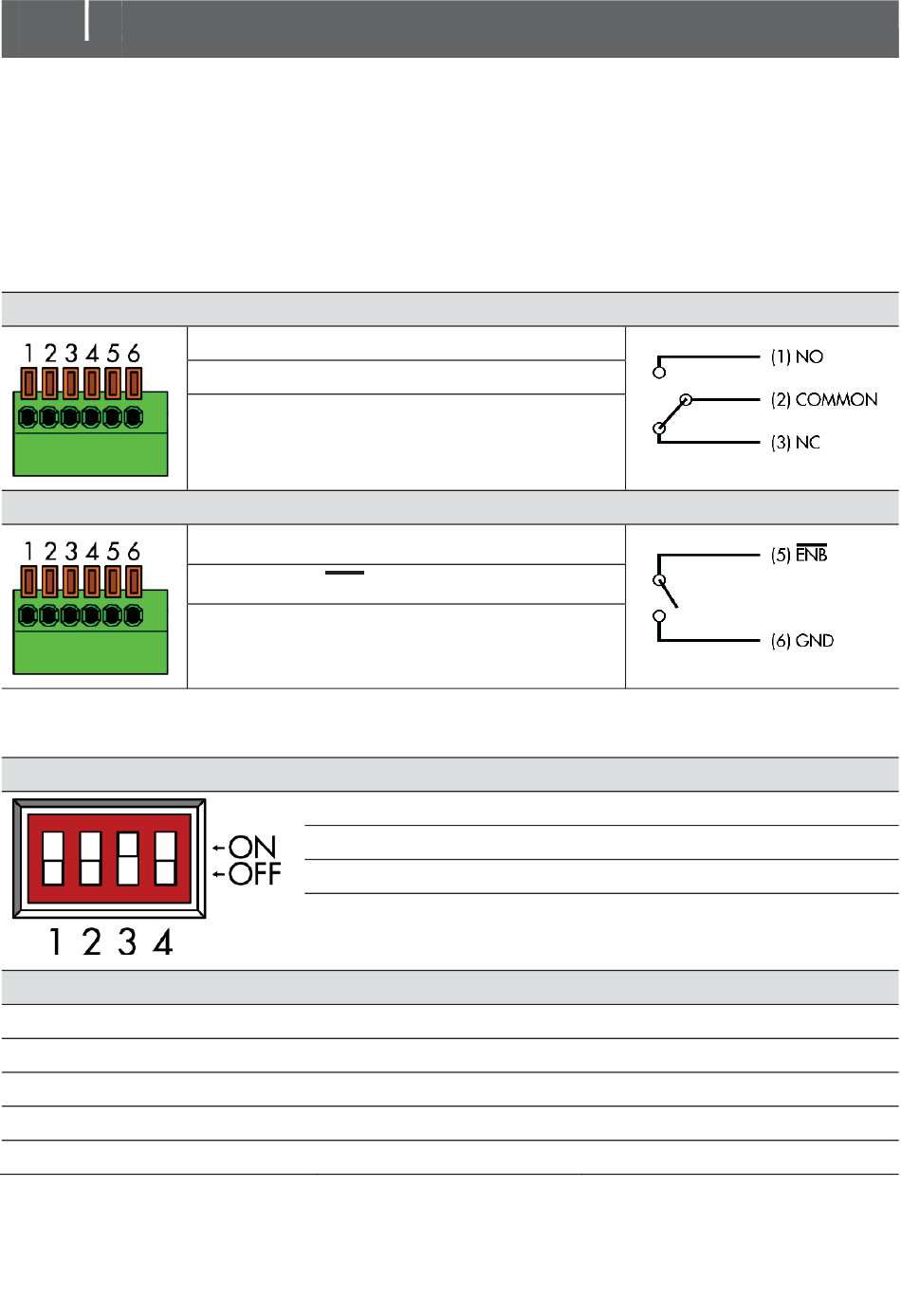

The remote control terminal offers two functions:
• Alarm contact (dry contact)
The alarm contact switches when a fault occurs.
• Remote switch
Install a switch for remote operation. Make sure the main switch is at "REMOTE" position.
Alarm contact (maximum load 30 V / 1 A)
Remote control

7. Configuration

DIP switch functions
Output voltage selection
Output voltage
200 V
220 V
230 V
240 V
1 Normally Open (NO)
2 Common
3 Normally Closed (NC)

4
Enable (ENB)

5
Enable (ENB)
6 Ground (GND)
(same polarity with negative battery input)
1 Output voltage selection
2 Output voltage selection
3 Output frequency selection
4 Power saving mode ON/OFF
DIP switch 1
OFF
ON
OFF
ON
DIP switch 2
OFF
OFF
ON
ON
