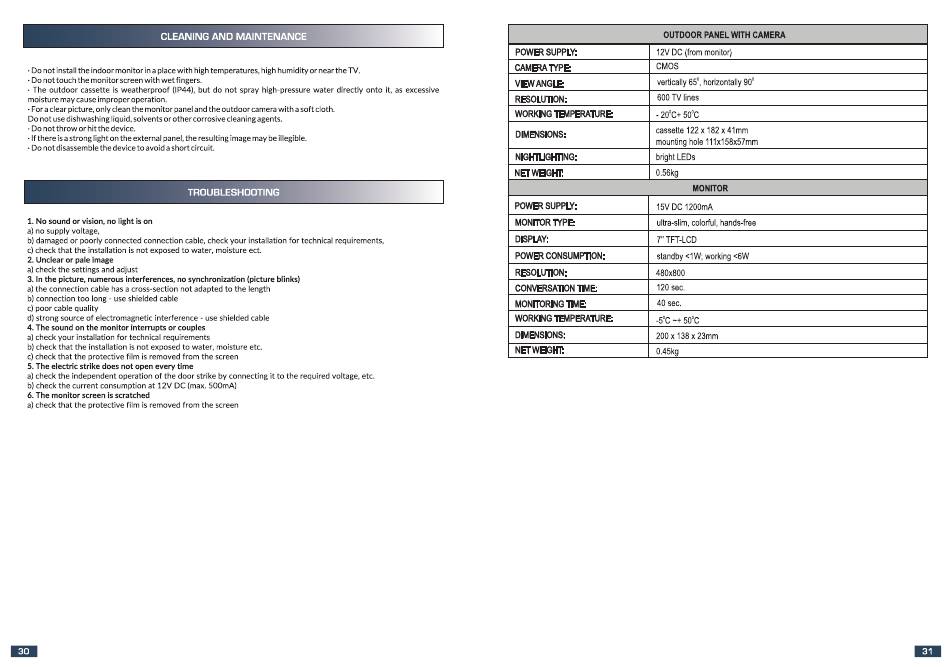

CLEANING
• Do not install the indoor monitor in a place with high temperatures,
• Do not touch the monitor screen with wet fingers.
• The outdoor cassette is weatherproof (IP44), but do not spray high-pressure
moisture may cause improper operation.
• For a clear picture, only clean the monitor panel and the outdoor camera with a soft cloth.
Do not use dishwashing liquid, solvents or other corrosive cleaning agents.
• Do not throw or hit the device.
• If there is a strong light on the external panel ,the resulting image may be illegible.
• Do not disassemble the device to avoid a short circuit.
TROUBLESHOOTING
1. No sound or vision, no light is on
a) no supply voltage,
b) damaged or poorly connected connection cable, check your installation for technical requirements,
c) check that the installation is not exposed to water, moisture ect.
2. Unclear or pale image
a) check the settings and adjust
3. In the picture, numerous interferences, no synchronization
a) the connection cable has a cross-section not adapted to the length
b) connection too long - use shielded cable
c) poor cable quality
d) strong source of electromagnetic interference
4. The sound on the monitor interrupts or couples
a) check your installation for technical requirements
b) check that the installation is not exposed to water, moisture etc.
c) check that the protective film is removed from the screen
5. The electric strike does not open every time
a) check the independent operation of the door strike by connecting
b) check the current consumption at 12V DC (max. 500mA)
6. The monitor screen is scratched
a) check that the protective film is removed from the screen
30
AND MAINTENANCE
high humidity or near the TV.
water directly onto it, as excessive
(picture blinks)
use shielded cable
it to the required voltage, etc.
OUTDOOR
POWER SUPPLY: 12VDC(frommonitor)
CMOS
CAMERA TYPE:
vertically 6 50, h orizontally 900
VIEW ANGLE:
600 TV lines
RESOLUTION:
WORKING TEMPERATURE: 200+ 50t
cassette 122 x 182 x 41mm
DIMENSIONS:
mounting hole111x158x57mm
NIGHTLIGHTING: bright LEDs
NET WEIGHT: 0.56kg
MONITOR
POWER SUPPLY:
15V DC 1200mA
MONITOR TYPE: ultra-slim, colorful, hands-free
DISPLAY:
7" TET-LCD
POWER CONSUMPTION:
standby <IW; working <6W
RESOLUTION: 480x800
120 sec
CONVERSATION TIME:
40 sec.
MONITORING TIME:
WORKING TEMPERATURE:
-5t -+ 500C
DIMENSIONS:
200 x 138 x 23mm
NET WEIGHT.
0 45k
PANEL WITH CAMERA
