WIRING

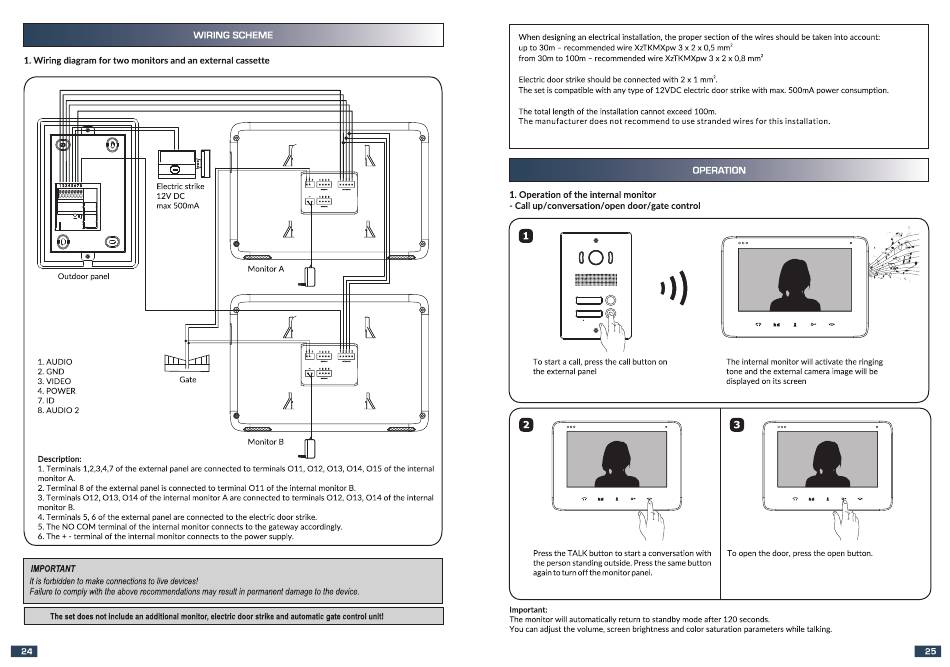

1. Wiring diagram for two monitors and an external
Electric strike
12345618
12V DC
max 500mA
Outdoor panel
1. AUDIO
2. GND
Gate
3 VIDEO
4. POWER
8. AUDIO 2
Description:
1. Terminals 1,2,3,4,7 of the external panel are connected to terminals 011, 012, 013, 014, 015 of the internal
monitor A.
2. Terminal 8 of the external panel is connected
3. Terminals 012, 013, 014 of the internal monitor
monitor B.
4. Terminals 5, 6 of the external panel are connected to the electric door strike.
5. The NO COM terminal of the internal monitor connects to the gateway accordingly.
6. The + - terminal of the internal monitor connects to the power supply.
IMPORTANT
It is forbidden to make connections to live devices!
Failure to comply with the above recommendationsmay result in permanent damage to the device.
The set does not include an additional monitor, electric door strike and automatic gate control unit!
SCHEME
cassette
Monitor A
Monitor B
to terminal 011 of the internal monitor B.
A are connected to terminals 012, 013, 014 of the internal
When designing an electrical installation, the proper section of the wires should be taken into account:
up to 30m recommended wire XzTKMXpw 3 x 2 x
from 30m to 100m recommended wire XzTKMXpw 3 x 2 x
Electric door strike should be connected with 2 x 1 mm
The set is compatible with any type of 12VDC electric door strike with max. 500mA power consumption.
The total ength of the installation cannot exceed 100m.
The manufacturer does not recommend to use
1. Operation of the internal monitor
- Call up/conversation/open door/gate control
GOD
To start a call, press the cal button on
the external panel
Press the TALK button to start a conversation
the person standing outside. Press the same button
again to turn off the monitor panel.
Important:
The monitor will automatically return to standby mode after 120 seconds.
You can adjust the volume, screen brightness and color saturation parameters while ta king.
mm
mm2
.
stranded wires for this installation.
OPERATION
The internal monitor will activate the ringing
tone and the external camera image will be
displayed on its screen
with To open the door, press the open button.
