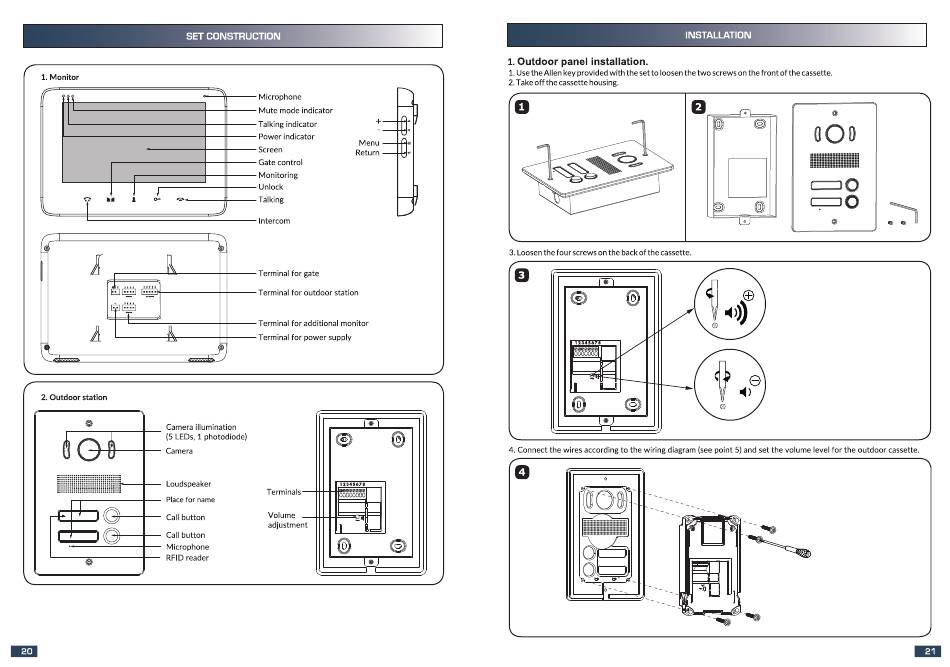

SET CONSTRUCTION
1. Monitor
2. Outdoor station
Camera illumination
(5 LEDs, 1 photodiode)
Camera
Loudspeaker
Place for name
Call button
Call button
Microphone
RFID reader
20
Microphone
Mute mode indicator
Talking indicator
Power indicator
Menu
Screen
Return
Gate control
Monitoring
Unlock
Talking
Intercom
Terminal for gate
Terminal for outdoor station
Terminal for additional monitor
Terminal for power supply
12345678
Terminals
ezzeee
Volume
adjustment
INSTALLATION
I. Outdoor panel installation.
1. Use the Allen key provided with the set to loosen the two screws on the front of the cassette.
2. Take off the cassette housing.
3. Loosen the four screws on the back of the cassette.
12345678
eeazeez
4. Connect the wires according to the wiring diagram (see point 5) and set the volume level for the outdoor
(10
o
GOD
O
o
e
o
cassette.
O
