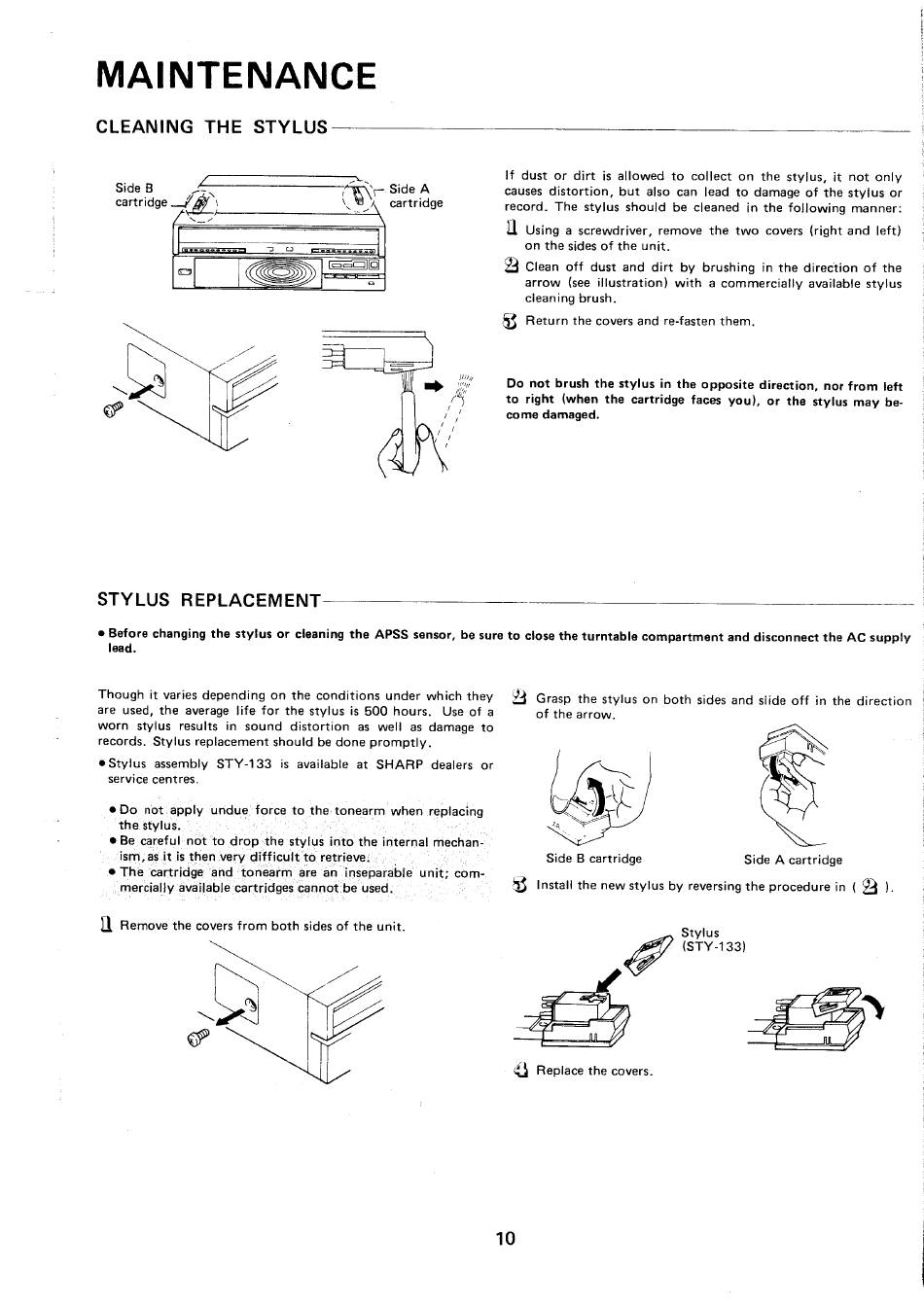

MAINTENANCE
CLEANING THE STYLUS
Side B
cartridge
STYLUS REPLACEMENT
• Beforechangingthe stylus or cleaningthe APSSsensor,be sureto closethe turntable compartmentand disconnectthe AC supply
lead.
Though it varies depending on the conditions
are used, the average life for the stylus
worn stylus results in sound distortion
records. Stylus replacement should be done promptly.
• Stylus assembly ST Y -133
service centres.
• Do not apply undue force to the tonearm when replacing
the stylus.
• Be carefulnot to drop the stylus into the internal mechan-
ism,as it is then very difficult
• The cartridge and tonearm
mercially available cartridges
Remove the covers from both sides of the unit.
s ide A
cartridge
under which they
is 500 hours. Use of a
as well as damage to
is available at SHARP dealers or
to retrieve.
are an inseparable unit; com-
cannot be used.
If dust or dirt is allowed to collect on the stylus, it not only
causes distortion, but also can lead to damage of the stylus
record. The stylus should be cleaned in the following
Using a screwdriver, remove the two
on the sides of the unit.
Clean off dust and dirt by brushing in the direction of the
arrow (see illustration)
cleaning brush.
Return the covers and re-fasten
Do not brush the stylus in the opposite direction, nor from left
to right (when the cartridge facesyou), or the stylus may be-
come damaged.
Grasp the stylus on both sides and siide off in the direction
of the arrow.
Side B cartridge
Install the new stylus by reversing the procedure in
Replace the covers.
10
covers (right and left)
with a commercially available stylus
them.
Side A cartridge
Stylus
(ST Y-133)
or
manner:
).
