CHAPTER 2: HARDWARE INSTALLATION

2.1 I C
NSTALLING ENTRAL
Notice:
1. Remove Pin Cap before installation, and make good preservation for future use.
When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin
legs won't be damaged.
2. The motherboard might equip with two different types of pin cap. Please refer
below instruction to remove the pin cap.

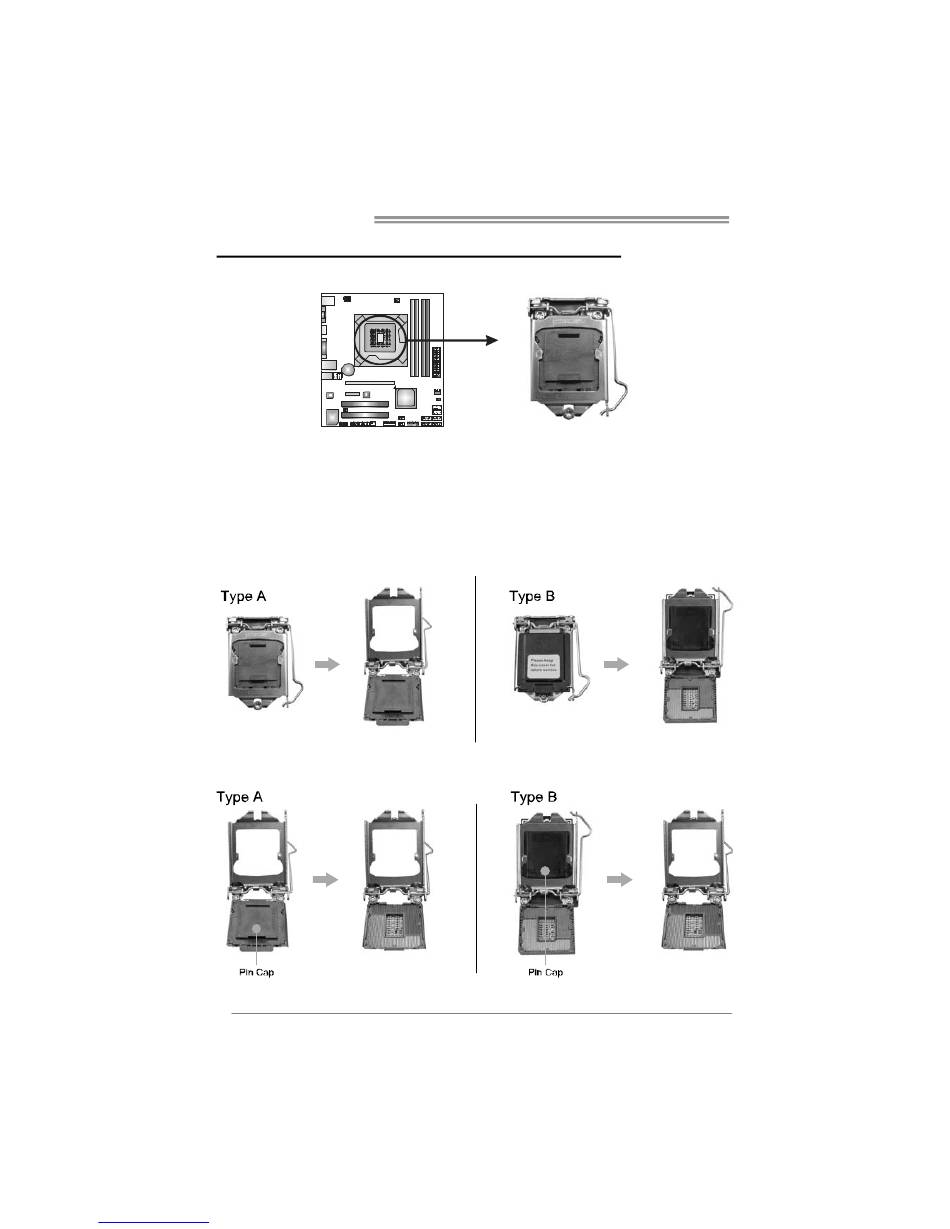

Step 1: Pull the socket locking lever out from the socket and then raise
the lever up.
Step 2: Remove the Pin Cap.
