2.4 C
ONNECTORS AND

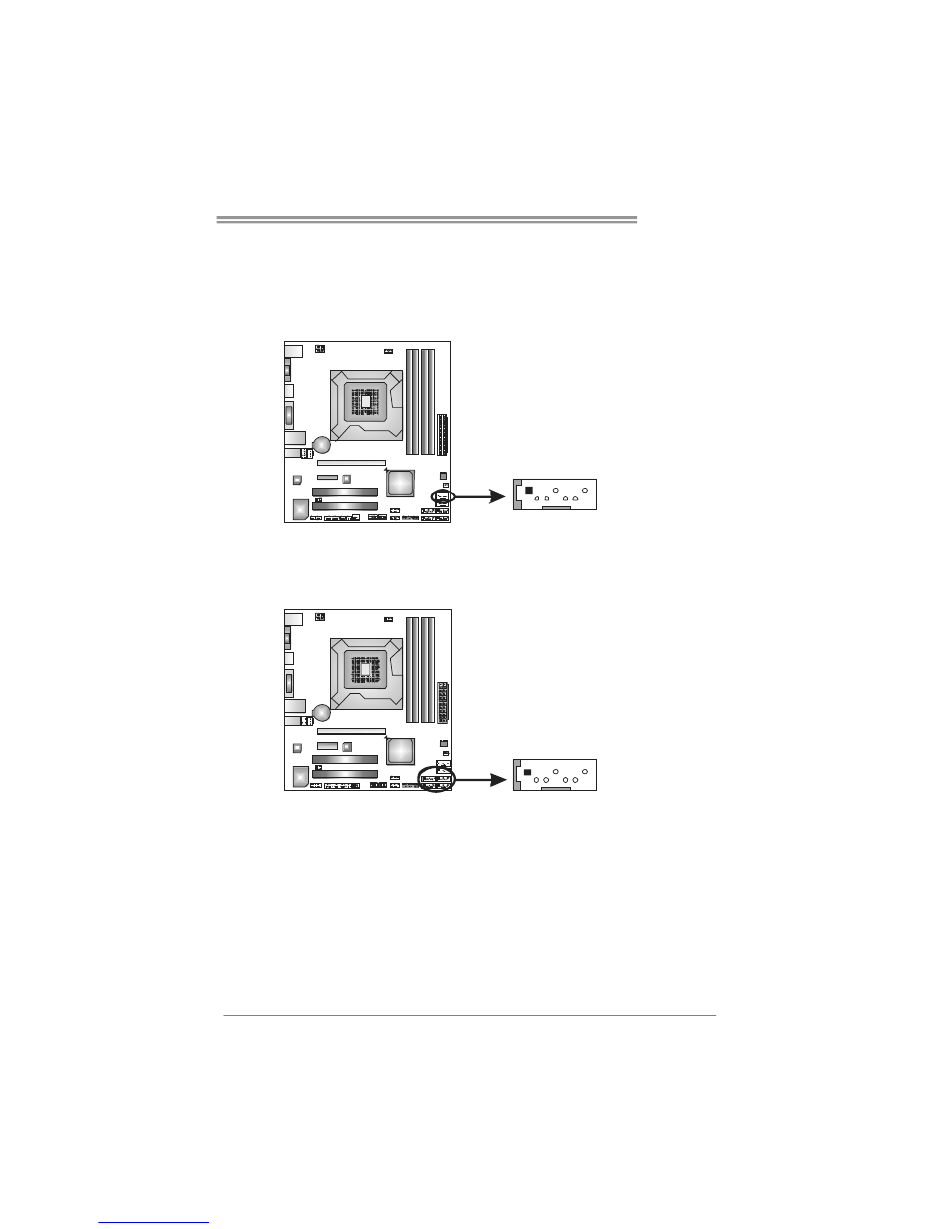

SATA1: Serial ATA3.0 Connectors
The motherboard has a PCI to SATA Controller with 1 channels SATA interface,
it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.
SATA2 ~ 6: Serial ATA2.0 Connectors
The motherboard has a PCI to SATA Controller with 5 channels SATA2 interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
manuals search engine
S
LOTS
Pin
1 4 7
Pin
SATA2
SATA5 SATA3
SATA6 SATA4
1 4 7
B 7 5 M U 3 +
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
11
