4.6 Downtube battery packs

• Battery pack size
Depending on the model, your bike will be equipped with either a "RIDE+ C320 battery pack" or a
"RIDE+ C420 battery pack". Removal, putting back and charging are the same for the two packs.
Both packs have the same exterior and are interchangeable.
• ' RIDE+ C320 battery pack', containing 39 Li-Mn (Lithium-Ion) cells, 6.6 Ah, 320 Wh.
• ' RIDE+ C420 battery pack', containing 52 Li-Mn (Lithium-Ion) cells, 8.8 Ah, 420 Wh.

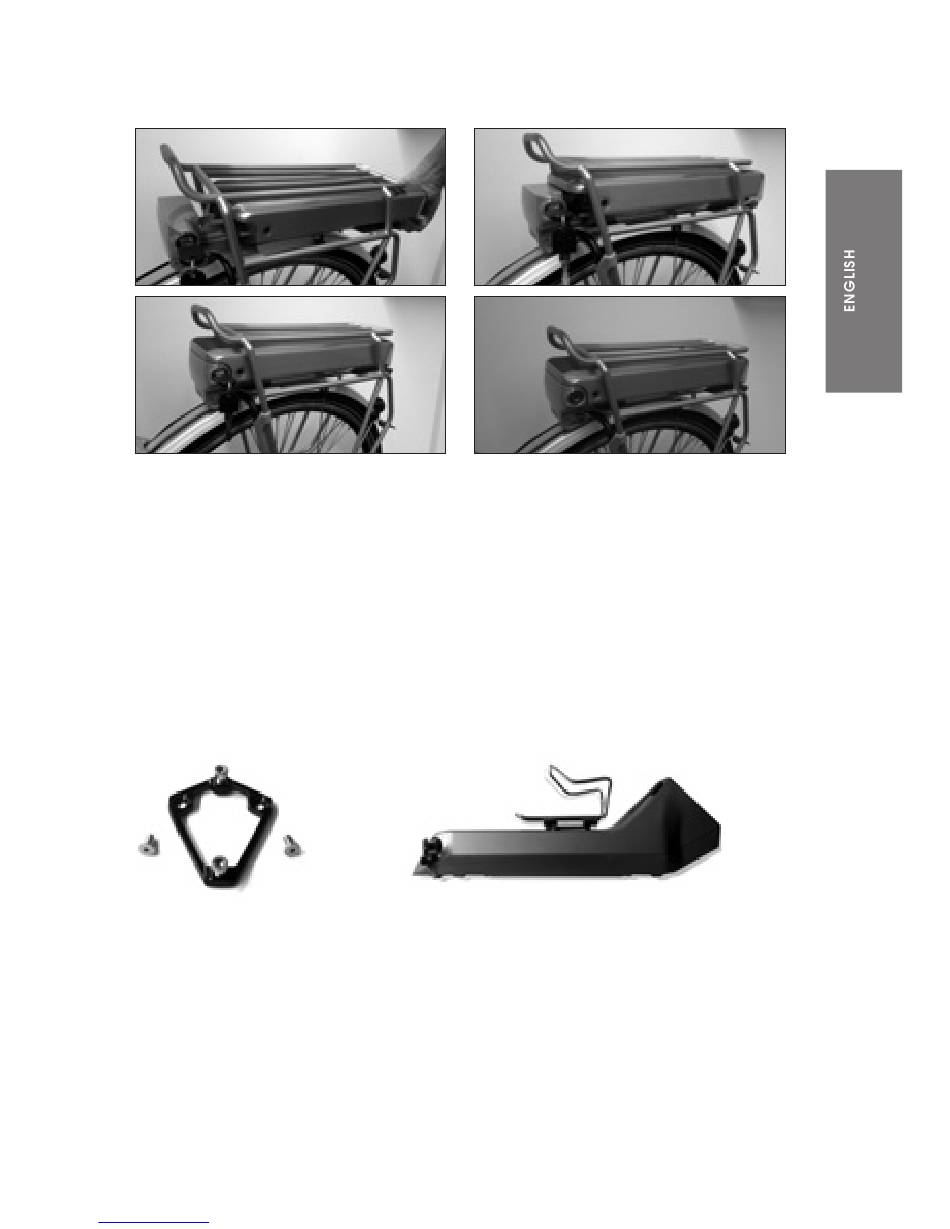

• Bottle cage holder
A bottle cage can be mounted on the RIDE+ C320 and RIDE+ C420 battery packs by installing the
'bottle cage holder'. This adapter can be mounted by 2 bolts. Subsequently, the bottle cage can be
mounted on the adapter. Only use the 4 bolts that are delivered with the holder to prevent damage
to the battery cells inside.
• Removing the battery pack
Put the key in the lock, twist the key clockwise until the lock springs out (step 1,2, see next page).
When the lock springs out, the lever of the battery pack will be released. Now take the key from the
lock and pull the lever of the battery pack so that it slides upwards -parallel to the down tube- until
it releases from the rail (step 3). When the battery pack is not on the bike, always use the
protective cover on the contacts on the frame to protect the electrical system from water (step 5).
Be sure to fasten the cord of the protective cover in a safe way to the frame.
