escription
• Controllers

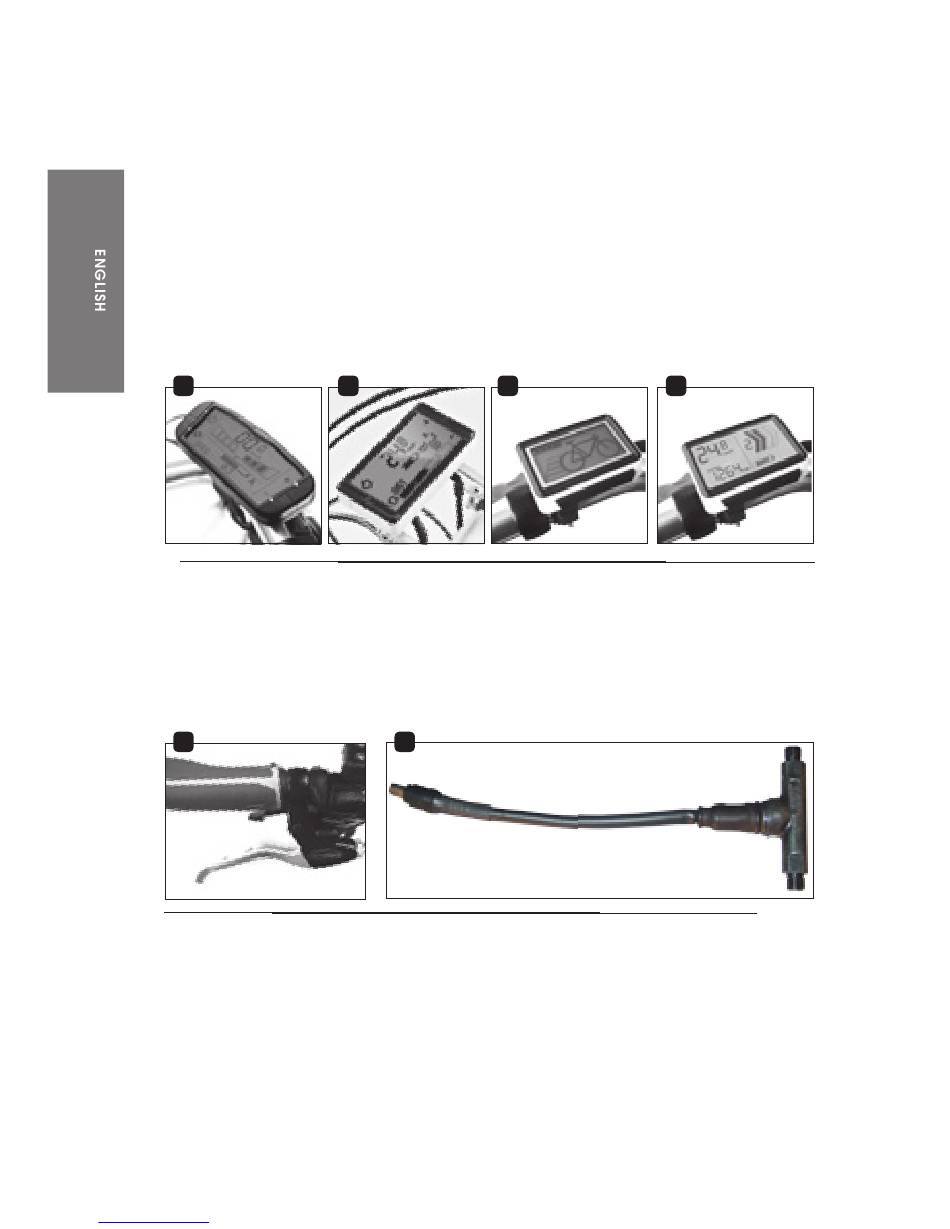

1. BionX G2 controller: controls all functions: On/Off, the four assist levels, the four regenerative
levels and lights On/Off. It also functions as a bicycle computer, measuring speed and distance,
and shows the battery charge level.
2. RIDE+ Pro controller: controls all functions: On/Off, the four assist levels, the four regenerative
levels and lights On/Off. It also functions as a bicycle computer, measuring speed and distance,
and shows the battery charge level. All the information can be provided in different languages
(see 'programming')
3. RIDE+ Easy Controller: controls all functions: On/Off, the four assist levels, and Lights On/Off.
4. RIDE+ Easy II Controller: controls all functions: On/Off, the four assist levels, Lights On/Off, and
trip and total distance.
1
• Brake Switches
1. The right hand brake lever of cable-activated brakes contains a switch that cuts off the power to
the motor, and switches the motor to generation mode as soon as the right hand brake lever is
pulled.
2. On bikes with hydraulic brakes (Magura), the switch is also located in the right hand brake lever,
or a (similar) switch is placed in the hydraulic brake line (disc brakes).
1
• Wiring Harness
The wiring harness links controller, brake switch, battery pack and motor. It runs through the frame
and is linked to the battery pack via the docking station in the rear rack or via the docking station
on the down tube.
