2. Description

2.1 Specific parts for the electric bicycle

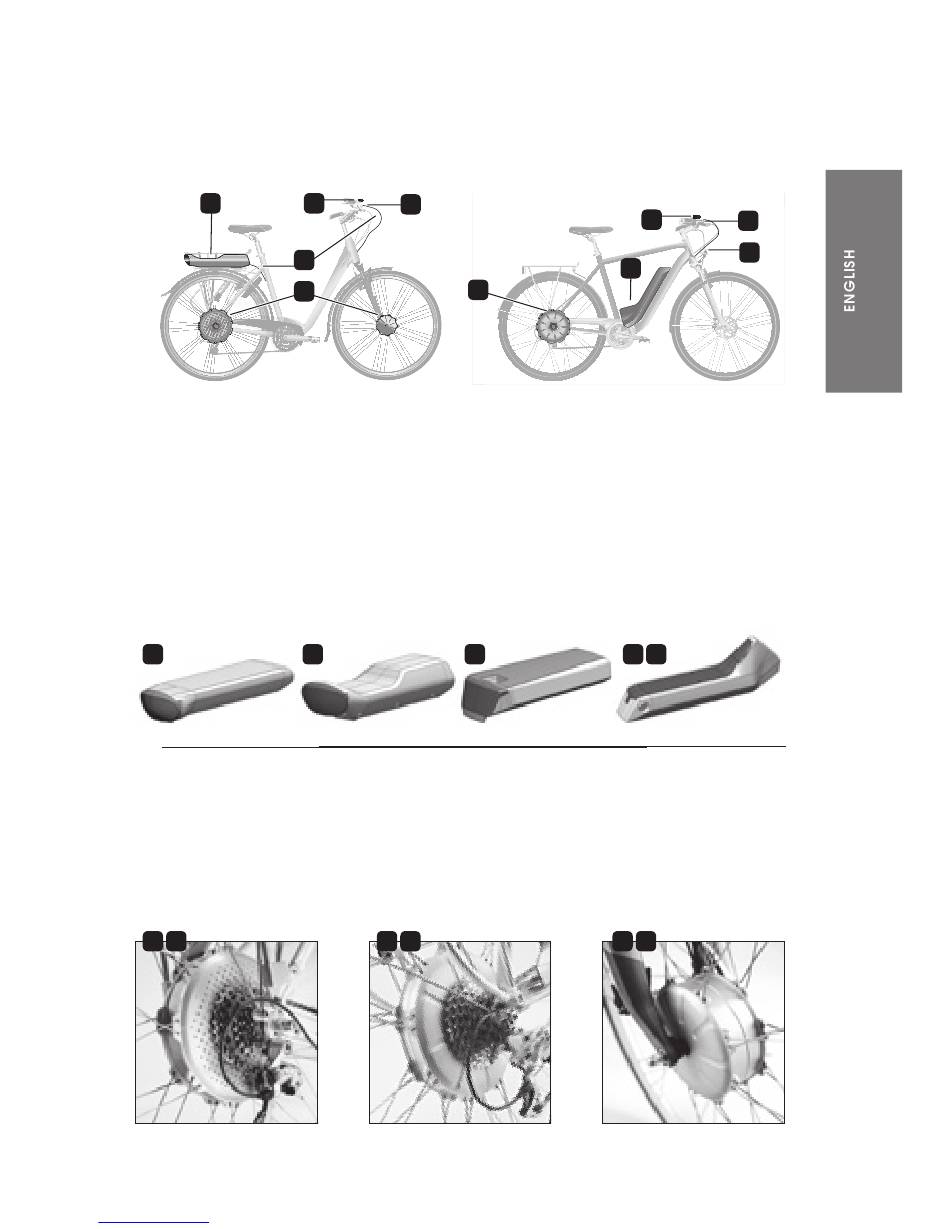

There are several models of electric bicycles, with different equipment options. Find the options
that are on your electric bicycle. In the pictures of the bikes you will find the battery pack (1), the
motor 'front or rear' (2), the controller (3), the brake switch (4), and the wiring harness (5).
• Battery packs
There are four types of battery packs for RIDE+ bicycles:
1.'RIDE+ R250 battery pack', containing 30 Li-Mn (Lithium-Ion) cells, 4.8 Ah, 250 Wh.
2.'RIDE+ R320 battery pack', containing 39 Li-Mn (Lithium-Ion) cells, 6.6 Ah, 320 Wh.
3.'RIDE+ C320 battery pack', containing 39 Li-Mn (Lithium-Ion) cells, 6.6 Ah, 320 Wh.
4.'RIDE+ C420 battery pack', containing 52 Li-Mn (Lithium-Ion) cells, 8.8 Ah, 420 Wh.
1
• Motor configurations
1. 250 W RIDE+ Rear motor, derailleur and Roller Brakes.
2. 250 W RIDE+ Rear motor, derailleur and disc brakes or rim brakes (Magura or V-brakes).
3. 250 W RIDE+ Rear SL motor (lightweight), derailleur and Roller Brakes.
4. 250 W RIDE+ Rear SL motor (lightweight), derailleur and disc brakes or rim brakes (Magura or
V-brakes).
5. 250 W RIDE+ Front motor, Internal gear hub and Roller Brakes.
6. 250 W RIDE+ Front motor, Internal gear hub and rim brakes (Magura or V-brakes).
1 2
