Push Peg Clamp - Duke & Vale Fixture Table Betriebsanleitung

5 IN 1 WORKBENCH

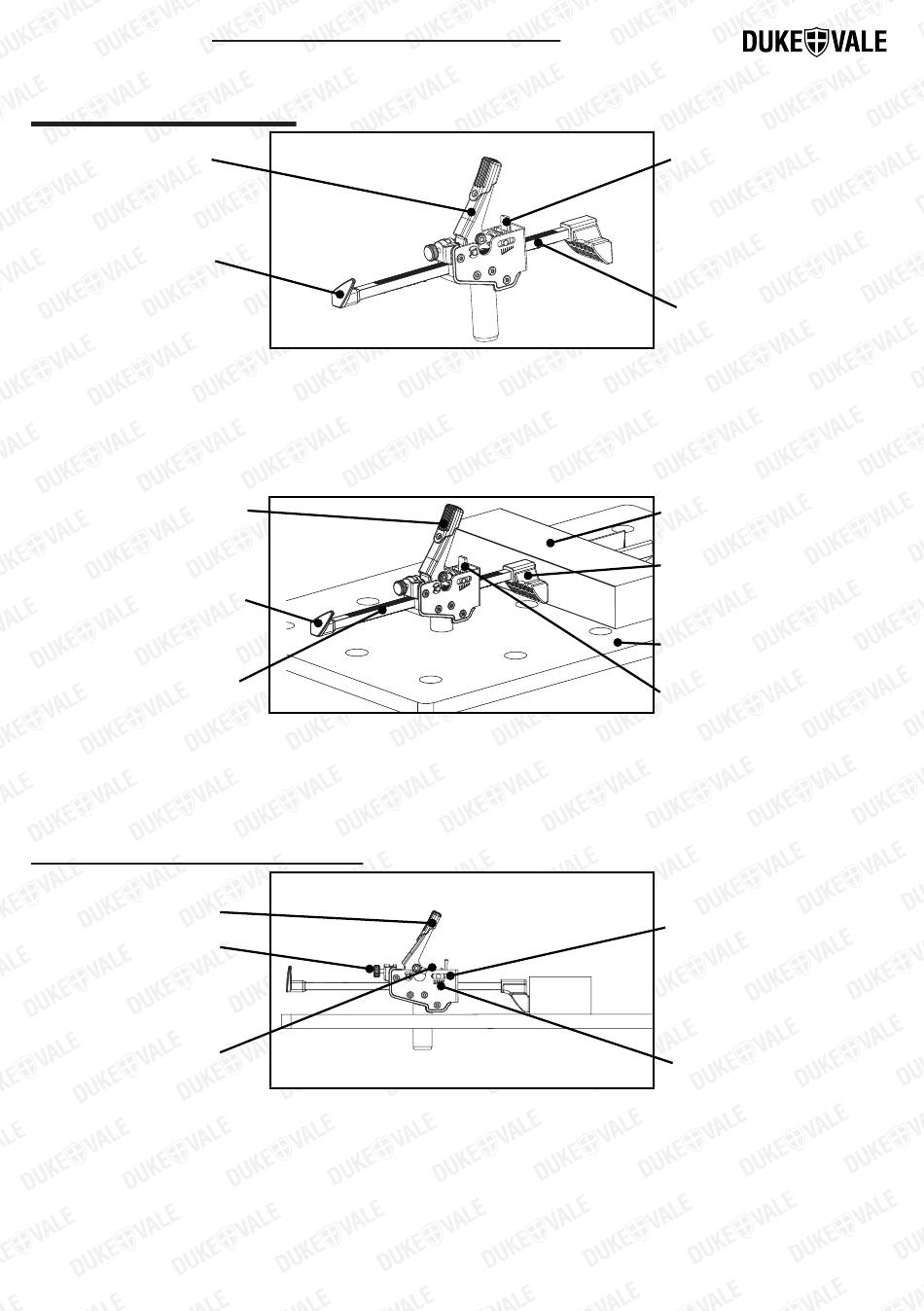

Push Peg Clamp

Clamping Handle
Handle of
Clamping Rod
• Pull the clamping handle upwards to loosen. Pulling at different increments will change the
displacement of the clamping rod accordingly, thus changing the clamping force.
• Press the locking piece and pull the handle to freely move the clamping rod to the initial position,
being sure not to use too much force as this can affect the mobility of the clamping rod.
Clamping Handle
Handle of
Clamping Rod
Clamping Rod
• Insert the peg end of the clamp into the worktable plate.
• Whilst pressing the locking piece, push the clamping rod to move to the clamping head close to the
clamping piece. Then press the clamping handle in a downwards motion to lock in place.
Clamping Force Adjustment
Clamping Handle
Adjustment Knob
Positioning Seat
• By pushing down the clamping handle it will change the displacement of the clamp. The further you
push down on the clamping handle the greater the tension.
• When you push down on the clamping handle, the position of the push shaft changes from left to
right. The clamping force can then be changed according to the corresponding position of the push
shaft and the scale.
• When the clamping handle is adjusted to the required position, the adjustment knob can be tightened
to limit the clamping handle for the next use to help control the clamping force.
English
© DUKE & VALE
Locking Piece
Clamping Rod
Clamping Piece
Clamping Head
Worktable Plate
Locking Piece
Push Shaft
Scale
5
