5 IN 1 WORKBENCH

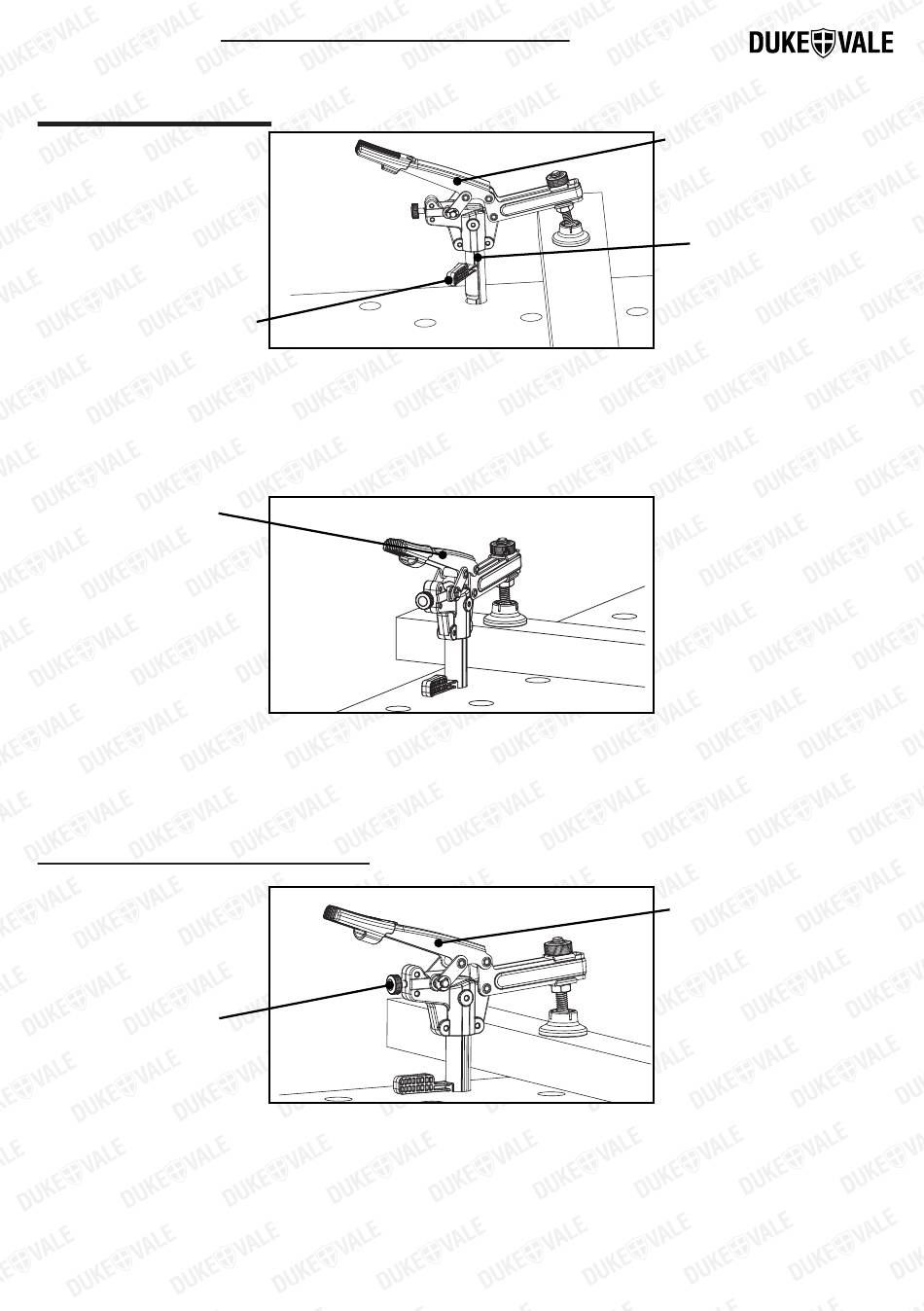

Vertical Clamp

Positioning Blocks
• Pull the clamping handle upwards and insert the clamp into the hole of the workable plate.
• Insert the positioning blocks close to the slot on the right side of the clamping rod into the platen hole
in a downward motion and rotate clockwsie to fix the clamp on the platen.
Clamping Handle
• Push the clamping handle down to lock in place.
Clamping Force Adjustment
Adjustment
Knob
• Pull the clamping handle upwards to loosen the clamping state.
• Turn the adjusting knob to adjust the clamping force. Turn right to increase the clamping force and
turn left to decrease the clamping force.
4 © DUKE & VALE
English
Clamping Handle
Right side of
clamping rod
Clamping Handle
