Technical Data

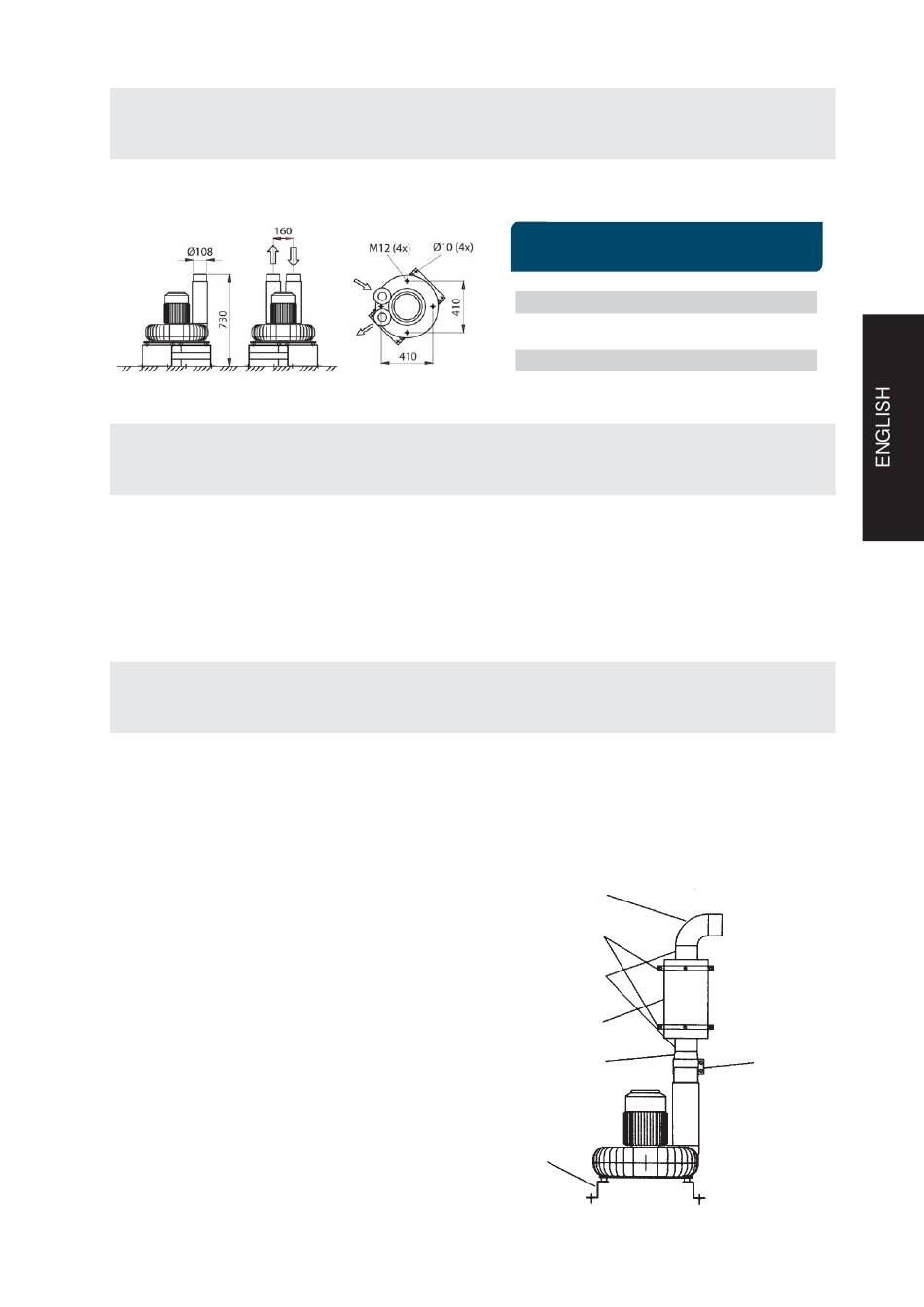

TED 30/36

System Description

Regenerative blowers
Dustcontrol's turbopumps are regenerative blo-
wers. TED 30/36 has one impeller. The impeller
rotate in the blower housing through extremely low
tolerances. The pump cannot tolerate contamina-
ted airfl ow. TPR compresses air and it is therefore
natural that it becomes hot while running.

Installation

1. Ancor the pump to the pump chassis.
2. Connect the ducting to both the inlet and the
outlet. Do not start the pump without having it
connected to the ductwork.
3. The pump inlet should always be connected to
a separator with a fi lter unit. The pump cannot
tolerate contaminated airfl ow .
4. Extra silencing can be installed if the outlet
sound level is to be lowered to approximately
75 dB(A). See Accessories.
5. If the outlet is vertical, and exposed to the
elements, rain protection should be installed.
Exhaust air can be very hot, up to 150
6. Electrical connections may only be performed
by a certifi ed electrician. A separate locka-
ble disconnect should be installed where it
is readily accessible and within view of the
pump.
Part No
230 V
400 V
460 V US/
CAN
575 V CAN
Direct operating
The pump is direct operating by a 3-phase motor.
Cooling air
Cooling air is bled into the pump through a vacuum
relief valve, Part No 8001, which is installed on the
low side in direct connection with the pump.
7. The control panel must be equipped with an
over-load protection that should be adjusted
and tested by a certifi ed electrician. Check for
correct motor rotation.
o
C.
4477
TED 30/36 5.5 kW/10 HP - 13
Hz TED 30
5.5 kW
50 4326
50 4126
60
60
3014
3069
3055
4942
3040
Part No 9041, 9042
TED 36
10 HP
419306
419101
3031
