Terminal Plan, Technical Data - Flamco Spc Extension Module Ergänzungsdokument

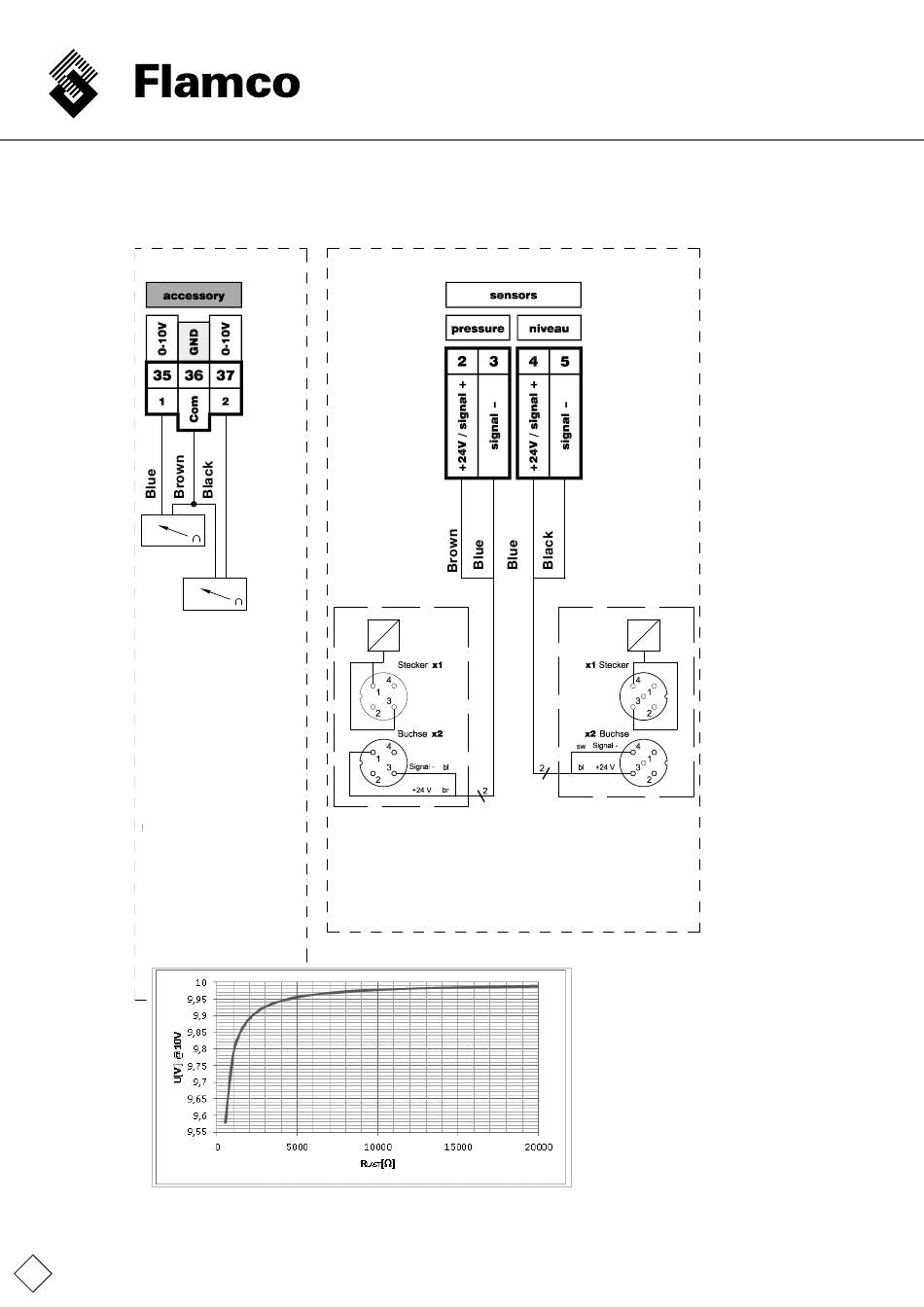

5. Terminal plan, technical data

Outputs:
Working
pressure
0...16bar
Level
0...100%
Short-circuit proof
Nominal values:
0 bar » 0.0 V
16 bar » 10.0 V
0 % » 0.0 V
100 % » 10.0 V
Voltage value tolerance
in the available operating
temperature range of the
control unit:
+ / - 5.5 %;
Voltage rating depending
on the ohmic load:
8
Inputs:
(Example:
Display,
analogue)
Pressure sensor
- Installed pressure
sensor for external
pressure. Controlled
delivery 0-16 bar.
Capacity sensor (FSI)
- Installed capacity force
transducer (FSI) on basic
external pressure vessel.
Matches the nominal
value of the vessel.
