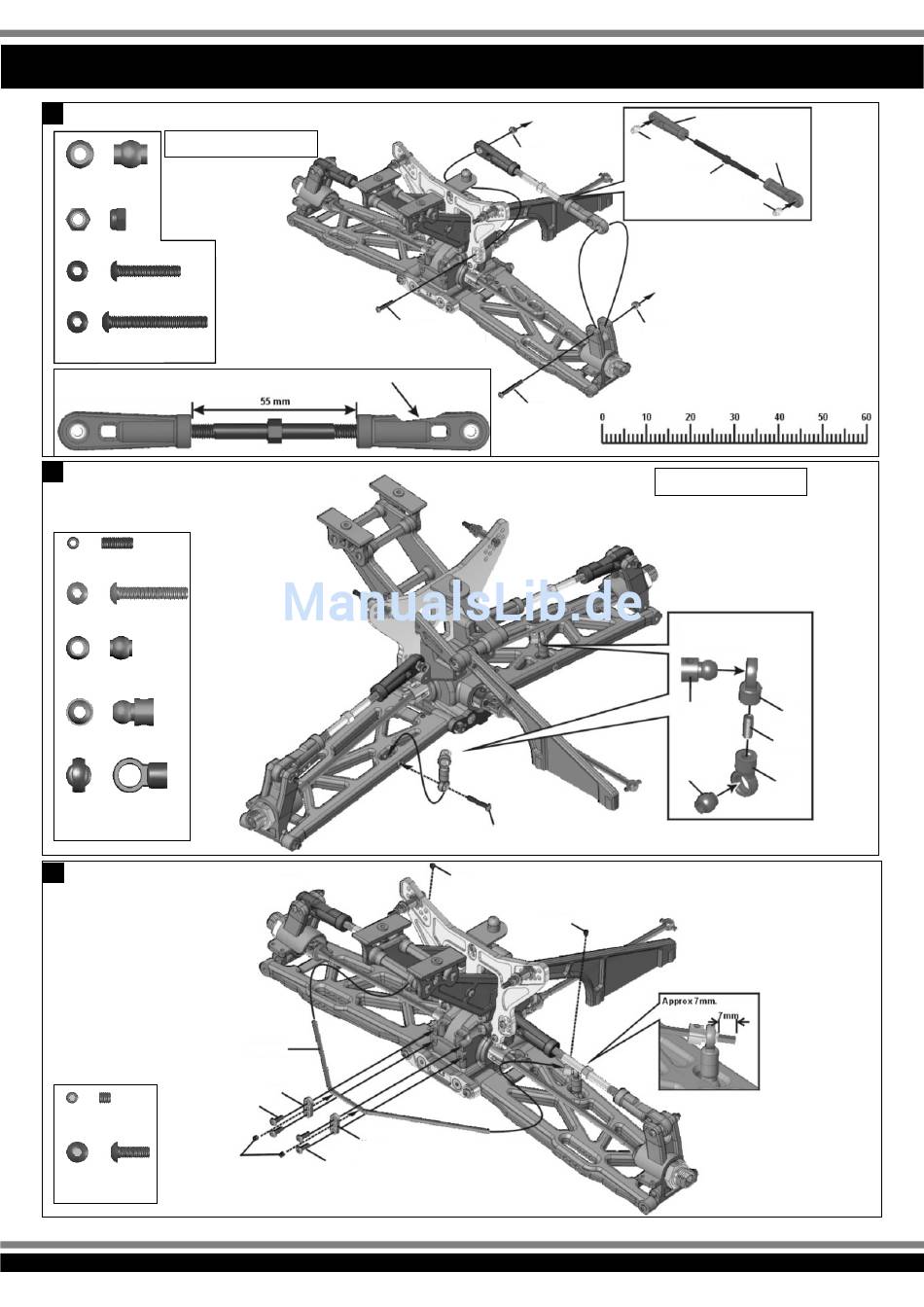

ASSEMBL OF THE REAR SUSPENSION ARMS
Y
25
Assembly for both right and left side.
051758
7mm
Ball and Socket
..........X4
3mm
Nylon Nut
..........X2
3x16mm
Hex Screw
..........X2
3x25mm
Hex Screw
..........X2
Use this ball end on the wheel side. The left and right hand
side are the same. (Note the cut out.)
26
ASSEMBL OF THE REAR STABILIZER
Y
3x8mm
Set Screw
..........X2
3x18mm
Hex Screw
..........X2
053602
6mm
Ball End
..........X2
051767
Stabilizer Ball
..........X2
503224
Stabilizer
Ball End
..........X4
ASSEMBL OF THE REAR STABILIZER
Y
27
3x3mm
Set Screw
..........X4
3x3mm
Set Screw
3x8mm
Hex Screw
..........X4
3x16mm
Hex Screw
500278
Rear Stabilizer
2.8mm
503207
Stabilizer
Mount Plastic
3x8mm
Hex Screw
503207
Stabilizer
Mount Plastic
3x8mm
Hex Screw
3mm
Nylon Nut
3x25mm
Hex Screw
3x18mm
Hex Screw
3x3mm
Set Screw
3x3mm
Set Screw
- 1 4 -
503224
Upper arm
Plastic Rod End
503224
051758
7mm Ball
Upper arm
Plastic Rod End
503316
5x80
Turnbuckle
051758
7mm Ball
3mm
Nylon Nut
Assembly for both right and left side.
Makes two rods for left and
right hand-side.
051767
503224
Stabilizer
Stabilizer Ball
Ball End
3x8mm
Set Screw
051269
6mm
503224
Ball End
Stabilizer
Ball End
