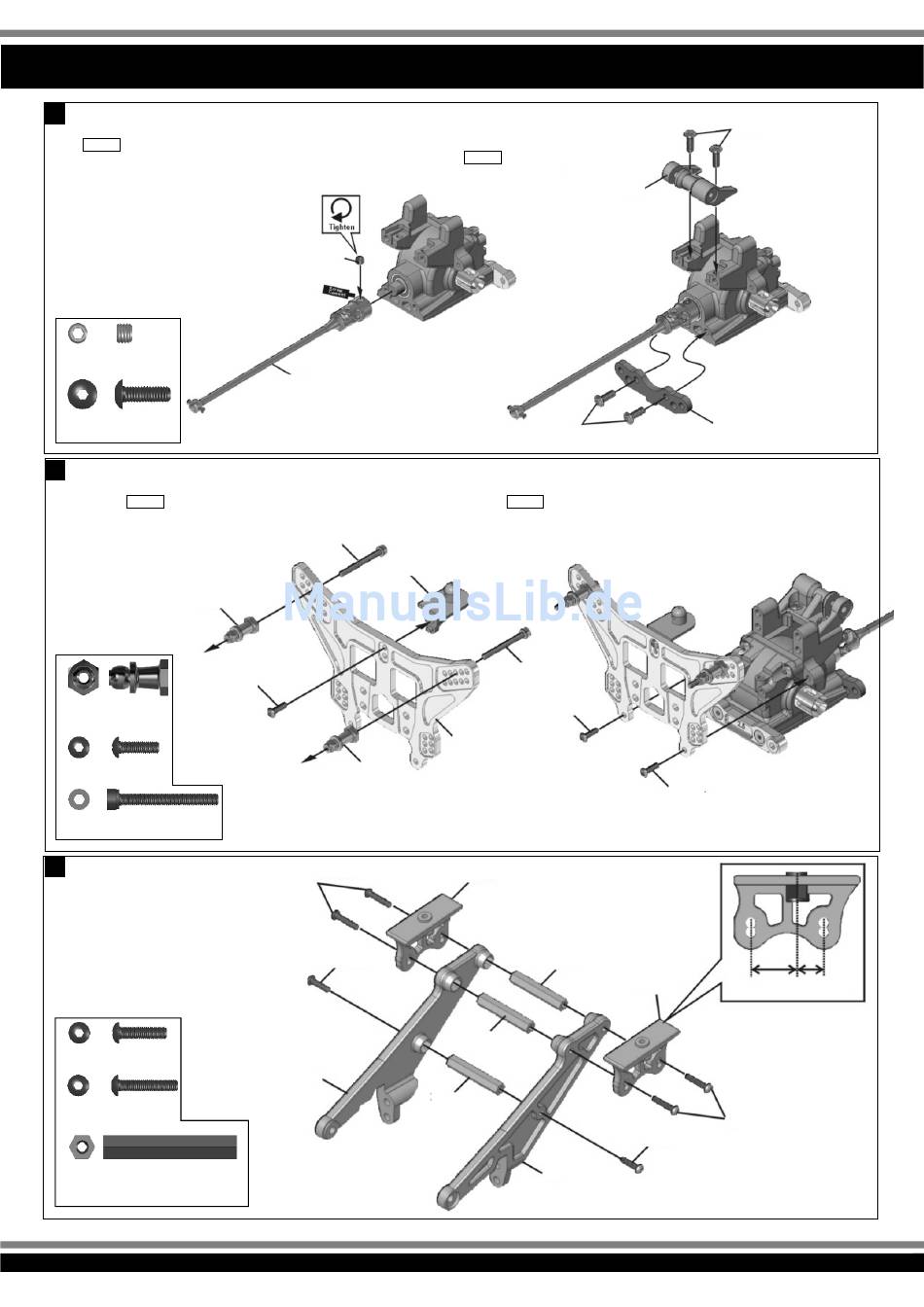

ASSEMBL OF THE REAR GEAR CASE
Y
19
Step 1
5x4mm
Set Screw
..........X1
4x12mm
Hex Screw
..........X4
ASSEMBL OF THE REAR SHOCK STAY
Y
20
Step 1
503212
Shock Ball End Post
one-piece/Top
503212
Shock Ball
End Post
..........X2
3x10mm
Hex Screw
..........X3
3x25mm
Cap Screw
..........X2
21
ASSEMBL OF THE WING STAY
Y
3x12mm
Hex Screw
..........X2
3x15mm
Hex Screw
..........X4
503239
Wing Stay
Post
..........X3
5x4mm
Set Screw
503459
Universal Joint
Conter(Rear/Long)
3x25mm
Cap Screw
503239
Rear body
Post
3x10mm
Hex Screw
503212
Shock Ball End Post
one-piece/Top
3x15mm
Hex Screw
3x12mm
Hex Screw
503239
Wing Stay
Right
Step 2
4x12mm
Hex Screw
Step 2
3x25mm
Cap Screw
3x10mm
Hex Screw
503313
7075 CNC Rear
Shock Tower
503239
Wing Mount
503239
Wing Stay
Post
503239
Wing Stay
Post
503239
Wing Stay
Post
503239
Wing Stay
(Left)
- 1 2 -
4x12mm
Hex Screw
503228
Center bracer
Mount
503312
Rear Lower Arm
Holder(Hard-Coated)
3x10mm
Hex Screw
Long
503239
Wing Mount
3x15mm
Hex Screw
3x15mm
Hex Screw
3x12mm
Hex Screw
Short
