3

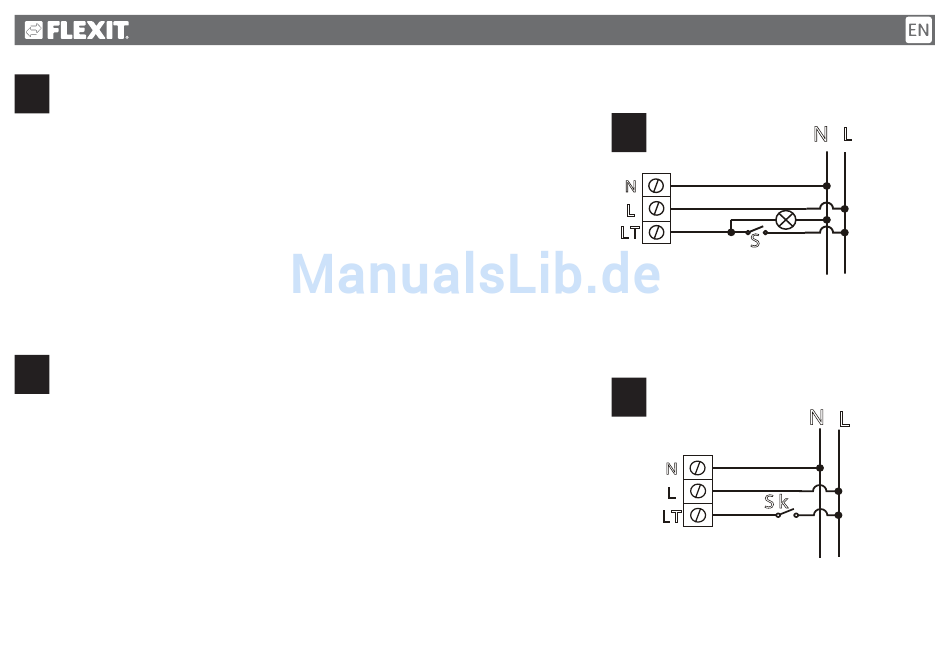

Wiring diagram 3 - External switch
The LT contact is connected to an external switch/light switch.
The fan is in standby and does not run. If 24 Hours mode is activated, the
fan will run continuously at minimum speed.
The external switch activates the fan, which starts in SILENT mode. When
the switch is turned off, the fan returns to standby. As motion sensor is
activated the fan switches to SILENT mode. After no motion is detected the
fan reverts to standby mode.
When the moisture increases, the fan starts in MAX mode (default setting)
or SILENT mode (changed by user). When the moisture has been extracted,
the fan returns to standby or
24 Hours mode.
Wiring diagram 4 - Pulse switch
4
The LT contact is connected to a pulse switch, which
is activated when the door to the room is opened.
The fan is in standby and does not run.
If 24 Hours mode is activated, the fan will run continuously at minimum
speed. The pulse switch activates the fan, which starts in SILENT mode and
runs for the overrun time set on the timer. As motion sensor is activated the
fan switches to SILENT mode. After no motion is detected the fan reverts to
standby mode.
When the moisture increases, the fan starts in MAX mode (default setting)
or SILENT mode (changed by user). When the moisture has been extracted,
the fan returns to standby or 24 Hours mode.
3
N
L
LT
4
47
User guide
N
S
N L
N
L
S k
LT
L
