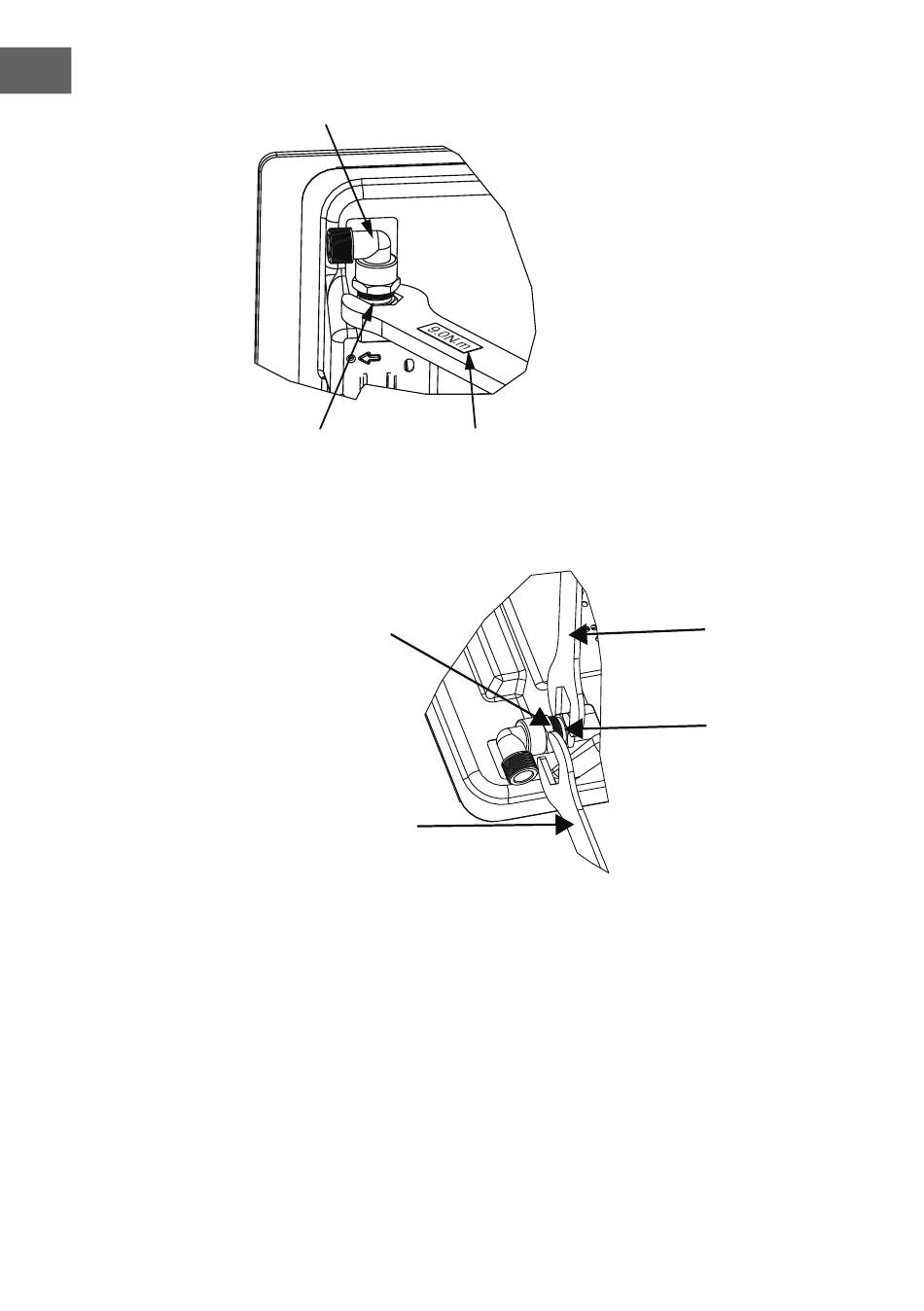

Elbow pipe
Black nut of
manifold
Adjusting the direction of the elbow pipe
Hexagonal
head of the
elbow pipe
Hold still
After loosening the elbow pipe, adjust the elbow interface to the required direction
as necessary and hold the hex head of the elbow stationary with a wrench. Use
a 9±1N.m torque wrench to tighten the black bolt of the gas inlet pipe assembly.
Ensure that the torque of the wrench is within the required range to prevent the
elbow from breaking or being damaged by excessive force.
Once the installation has been tightened, check that the parts are in good
condition and test the airtightness to ensure that the installation is airtight. The
installer is responsible for the results of the process.
Torque 9±1 N.m
Tighten with a
torque wrench
of 9±1 N.m
Black bolt of
the gas inlet
pipe assembly
