TRANSMIT TRANSMIT
RECEIVER
RECEIVER z RECEIVER z
SLEEP SLEEP
HDMI HDMI
1 1 2 2 3 3 4 4
5 5 6 6
AV AV
1 1 2 2 3 3 4 4
5 5 6 6 ZONE A ZONE A
AUX AUX USB USB NET NET ZONE B ZONE B
FM FM AM AM
PRESET PRESET TUNING TUNING
INFO INFO MEMORY MEMORY
MOVIE MOVIE MUSIC SUR. DECODE STRAIGHT MUSIC SUR. DECODE STRAIGHT
BASS BASS ENHANCER ENHANCER DIRECT DIRECT
SCENE SCENE
BD BD
TV TV NET NET RADIO RADIO
DVD DVD
SETUP
SETUP OPTION OPTION
Cursor keys
ENTER VOLUME VOLUME
ENTER
RETURN RETURN DISPLAY DISPLAY
TOP TOP POP-UP POP-UP
MUTE MUTE
MENU MENU MENU MENU
MODE MODE
2
En

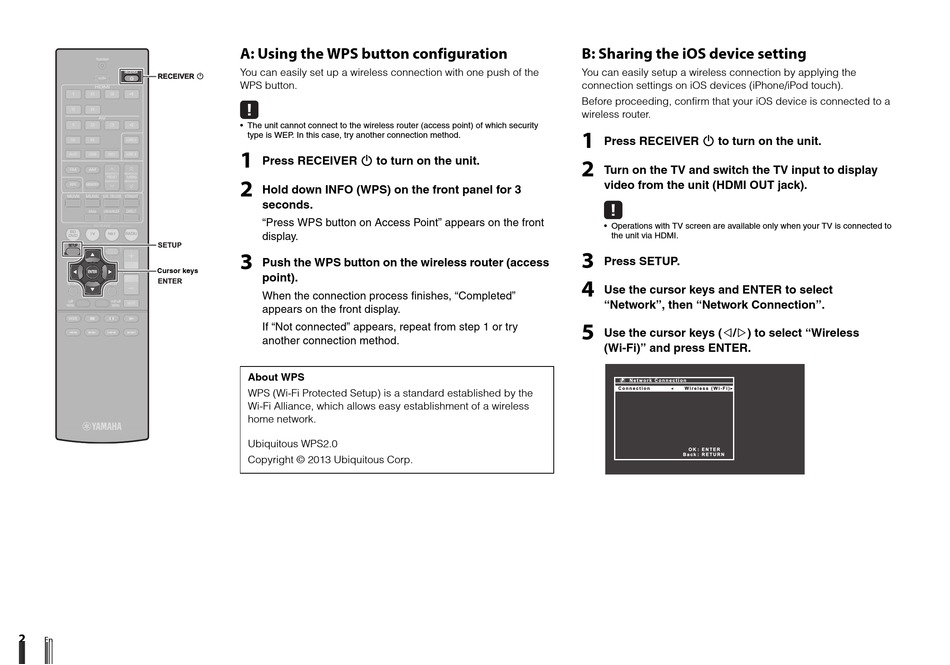

A: Using the WPS button configuration
You can easily set up a wireless connection with one push of the
WPS button.
• The unit cannot connect to the wireless router (access point) of which security
type is WEP. In this case, try another connection method.
1
Press RECEIVER z to turn on the unit.
2
Hold down INFO (WPS) on the front panel for 3
seconds.
"Press WPS button on Access Point" appears on the front
display.
3
Push the WPS button on the wireless router (access
point).
When the connection process finishes, "Completed"
appears on the front display.
If "Not connected" appears, repeat from step 1 or try
another connection method.
About WPS
WPS (Wi-Fi Protected Setup) is a standard established by the
Wi-Fi Alliance, which allows easy establishment of a wireless
home network.
Ubiquitous WPS2.0
Copyright © 2013 Ubiquitous Corp.
B: Sharing the iOS device setting
You can easily setup a wireless connection by applying the
connection settings on iOS devices (iPhone/iPod touch).
Before proceeding, confirm that your iOS device is connected to a
wireless router.
1
Press RECEIVER z to turn on the unit.
2
Turn on the TV and switch the TV input to display
video from the unit (HDMI OUT jack).
• Operations with TV screen are available only when your TV is connected to
the unit via HDMI.
3
Press SETUP.
4
Use the cursor keys and ENTER to select
"Network", then "Network Connection".
5
Use the cursor keys (e/r) to select "Wireless
(Wi-Fi)" and press ENTER.
N e t w o r k C o n n e c t i o n
C o n n e c t i o n W i r e l e s s ( W i - F i )
O K : E N T E R
B a c k : R E T U R N
