Renz Slide Montageanleitung Seite 37

Slide
Sicherheitshinweise
6.
Height adjustment - Observe the safety instructions!
The height of the upper part on the media element can be adjusted by opening the locking pin in the central
column. It can be adjusted in 5cm - steps to adjust the monitor position to the desired height.
SEVERAL persons are required for adjustment for safety reasons. UNLOAD or SECURE the upper part BEFORE
pulling the locking pin. Only then pull the locking pin backwards (by turning it 30°, the pin can be locked in the
open position if necessary).
Lift or lower the upper part until the pin completely engages by itself and check the

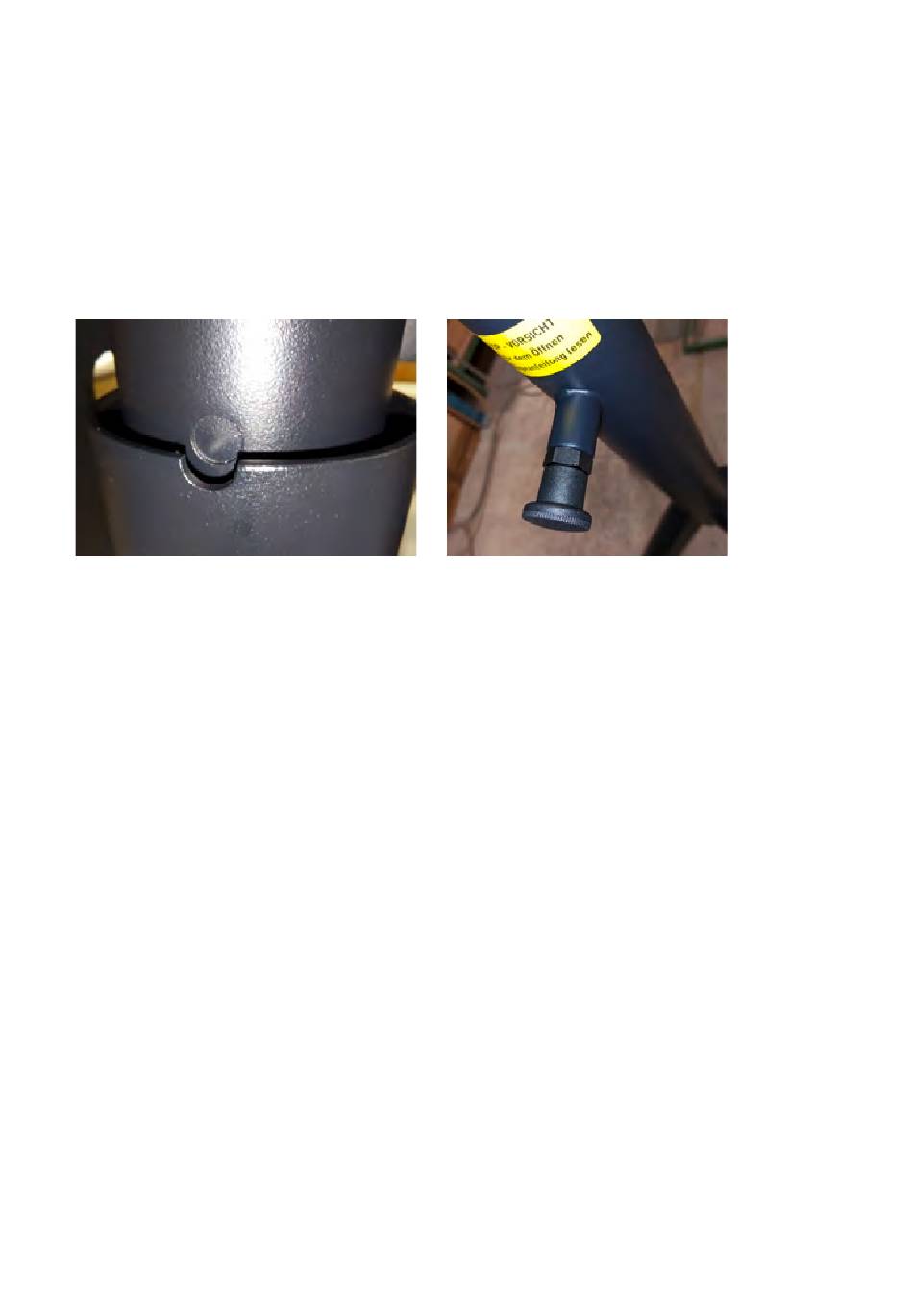

locking. Markings on the back of the inner tube indicate the distance to the next locking point. The locking pin must
be closed see figure:
As the load increases, the support provided by the gas strut decreases! The upper part must not be twisted against
the lower part when the locking pin is open! Risk of damage and tipping!
