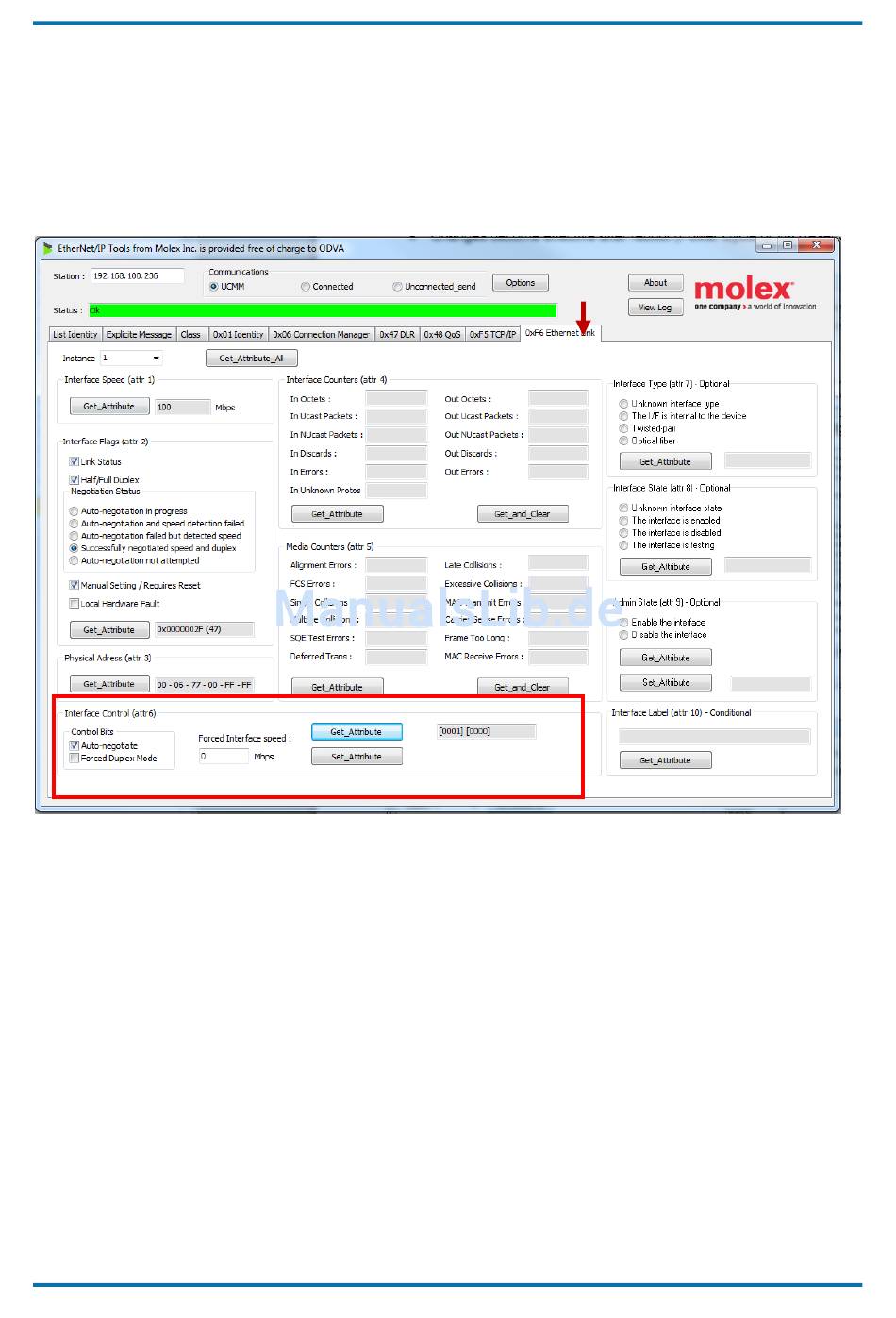

Go to the Ethernet Link tab
•
Read attribute 6 (Interface control) by clicking "Get_Attribute"
o If auto-negotiate is turned on the device will ignore all other parameters within attribute
6.
o Forced Duplex Mode 0 => half duplex, 1=> full duplex
o Forced Interface Speed can be set 10 and 100.

2.1.5. Explicit read of an attribute within the position sensor object
