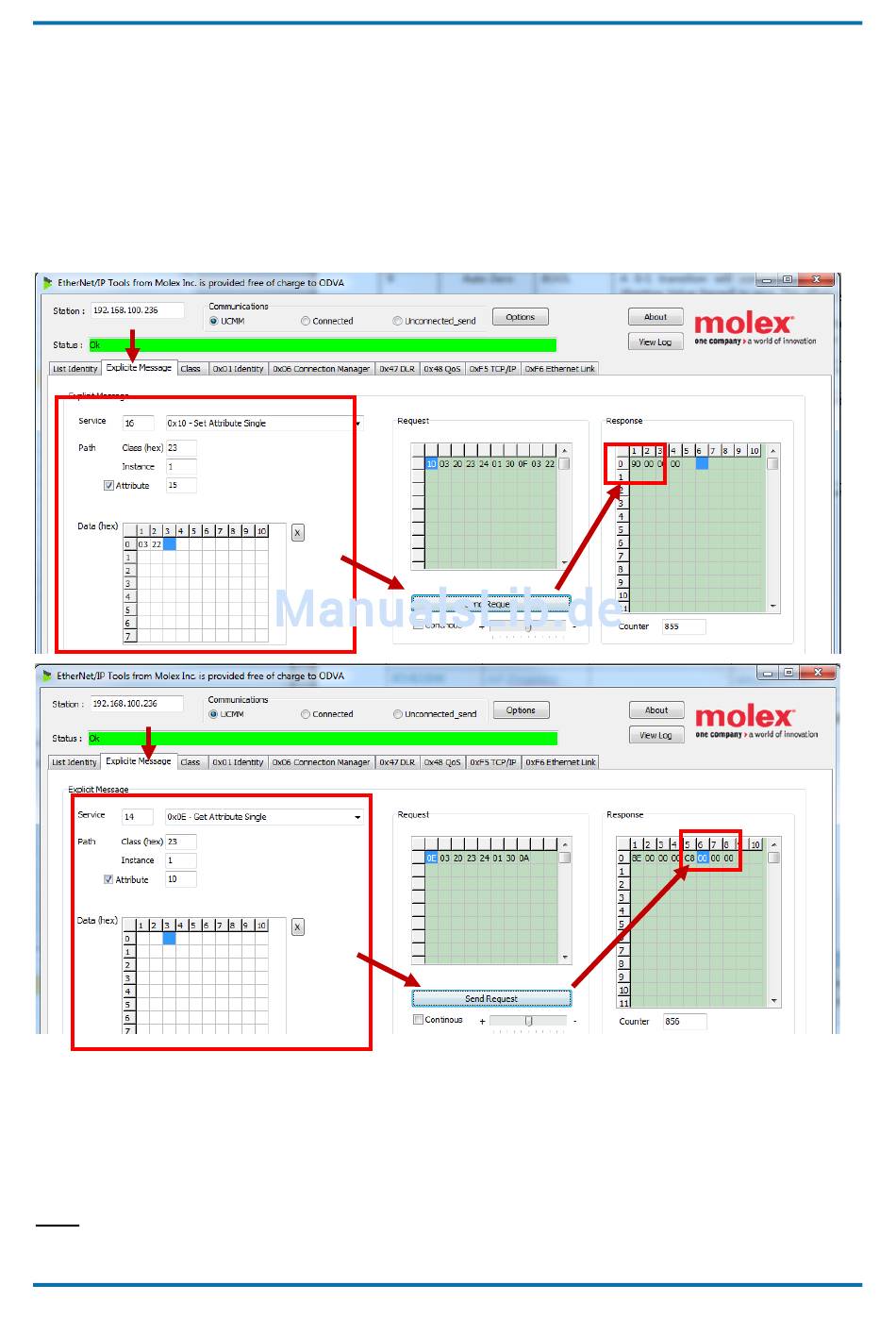

Change resolution to 1mm => 0x2203
•
Change endianes => 0x0322
•
Send Request
•
First byte 0x90 => success
•
Go to the previous section an observe that the position value changed to 0xC8 => 200. This is
expected as the resolution was changed from 1/10mm to 1mm.

2.1.1. Apply a static preset

Note: Attribute 105 can only be written using implicit messaging
