MIX 10 NG2 – Controls and Indicators
3.
Controls and Indicators

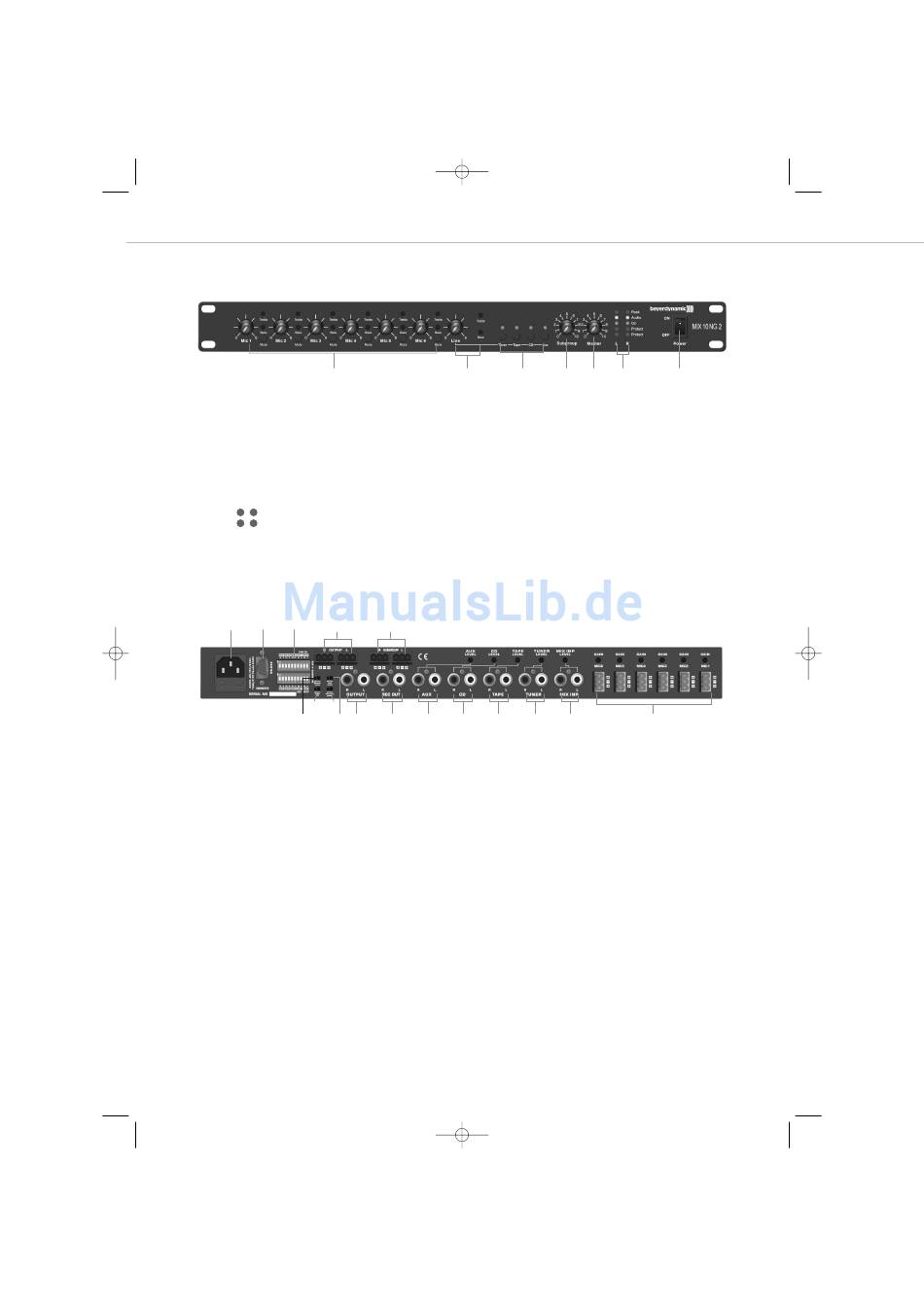

Front view
(1)
Volume control microphone inputs (Mic 1 to Mic 6) with treble, bass controls and mute
(2)
Volume control Line to set the level of CD, tape, tuner or Aux with treble and bass controls
(3)
Input selection control for active Line input (CD, Tape, Tuner, Aux) and status LEDs
(4)
Subgroup - volume control
(5)
Master - volume control
(6)
LEDs for left (L) and right (R) channel
Peak - Red LED is illuminated, when the peak of a signal occurs
Audio - Yellow LED is illuminated, when the output signal is present with 0 dB
On - Green LED is illuminated, when the device is switched on
Protect - Red LEDs for monitoring the balanced Master outputs (8)
The upper LEDs represent the positive output signal
2
2
The lower LEDs represent the negative output signal
3
3
2 or 3 is illuminated when a short circuit against ground occurs (Pin 1).
L
R
2 and 3 are illuminated simultaneously when a short circuit between Pin 2 and 3 occurs
(7)
Mains switch
Rear view
(10)
(11)
(16)
(12) (13)
(14)
(8)
Master Output R + L, 3-pin terminals, balanced
(9)
Sub Group R + L, 3-pin terminals, balanced
(10)
Mains supply (230 V/115 V) with fuse (315 mA/T / 500 mA/T))
(11)
RS 232 interface, 9-pin Sub D, male
(12)
Ground Lift to separate operating ground from mains ground. The ground lift is activated when the switch is switched to the right.
(13)
Phantom Power – Off/On to activate or deactivate a phantom power of 27 volts when using condenser microphones.
(14)
Master Mono to bridge the master outputs into a mono operation, stereo line sources are in mono at the master L/R outputs
(15)
Sub Mono to bridge the sub outputs into a mono operation, stereo line sources are in mono at the sub group L/R outputs
(16)
Dip switches to allocate the input channels to the master output (M) or sub group output (S). If the Dip switch is switched to the top,
the input channel is routed to the appropriate output.
(17)
Master Output, +6 dB, master output R/L unbalanced, RCA
(18)
REC - Record ouput L/R for the microphone master
(19)
Aux input with separate volume control
(20)
CD input with separate volume control
(21)
Tape input with separate volume control
(22)
Tuner input with separate volume control
(23)
MIX INP - Stereo input with separate volume control for the connection of mixing consoles or more MIX 10 NG2
(24)
MIC 1 - MIC 6 - Electronically balanced microphone inputs with gain control (input sensitivtity), 3-pin terminals
01.02.2008
10:30 Uhr
Seite 22
(1)
(2)
(8)
(9)
(15)
(17)
(18)
(19)
(20)
(21)
(3)
(4)
(5)
(6)
(7)
(22)
(23)
(24)
