OPERATING INSTRUCTIONS MIX 10 10-CHANNEL-STEREO-MIXING-SYSTEM
Thank you for selecting the MIX 10 10-channel-stereo-mixing-system. Please take some time to read carefully through this manual
before setting up the equipment.
1.
Version
MIX 10
10-channel-stereo-mixing-system . . . . . . . . . . . . . . . . Order # 452.858
MIX 10-232
10-channel-stereo-mixing-system . . . . . . . . . . . . . . . . Order # 454.508
The MIX 10 has 6 microphone inputs and 4 switchable line inputs with a common master control and sound equalisation controls (treble
and bass equalisation). The microphone signal can be processed via an insert point with an external effect device. Voice-controlled priority
output control (ducking) can be set via internal jumpers to operate only with microphone input 1 or all of the microphone inputs. In this
mode the selected microphone inputs fade in and all other inputs fade out.
The current programme (Microphone inputs 2 to 6 and line or only line) is gently faded out.
As an option the MIX 10 can be operated via a standard serial RS 232 interface with the AP 232 PCB or via VCA with the AP 100.
2.
Safety Information
•
There are no user-serviceable parts inside the MIX 10. As with all electrical appliances, dangerous electrical shock may result if unqualified
personnel attempt repair. Authorized personnel should always perform service.
•
Never expose the MIX 10 to water or excessive humidity levels which can increase to exclude the risk of electrical shock. Therefore,
do not install the amplifier near swimming pools, spas, in a wet basement, or in any other excessively humid environments.
•
Do not install or use the MIX 10 near sources of high excessive heat, such as radiators, heat registers, flood lamps, spotlights, stoves,
or other heat generating appliances.
•
Always route cables running to the unit where they will not be pinched or cut by heavy or sharp objects.
•
Always turn off the power to the MIX 10 when making input or output connections.
•
When unpacking the unit, inspect it for transport damage. If there is transport damage, notify the transportation
company without delay. Delay in reporting transport damage could result in the loss of your rights to a claim.
3.
Controls and Indicators

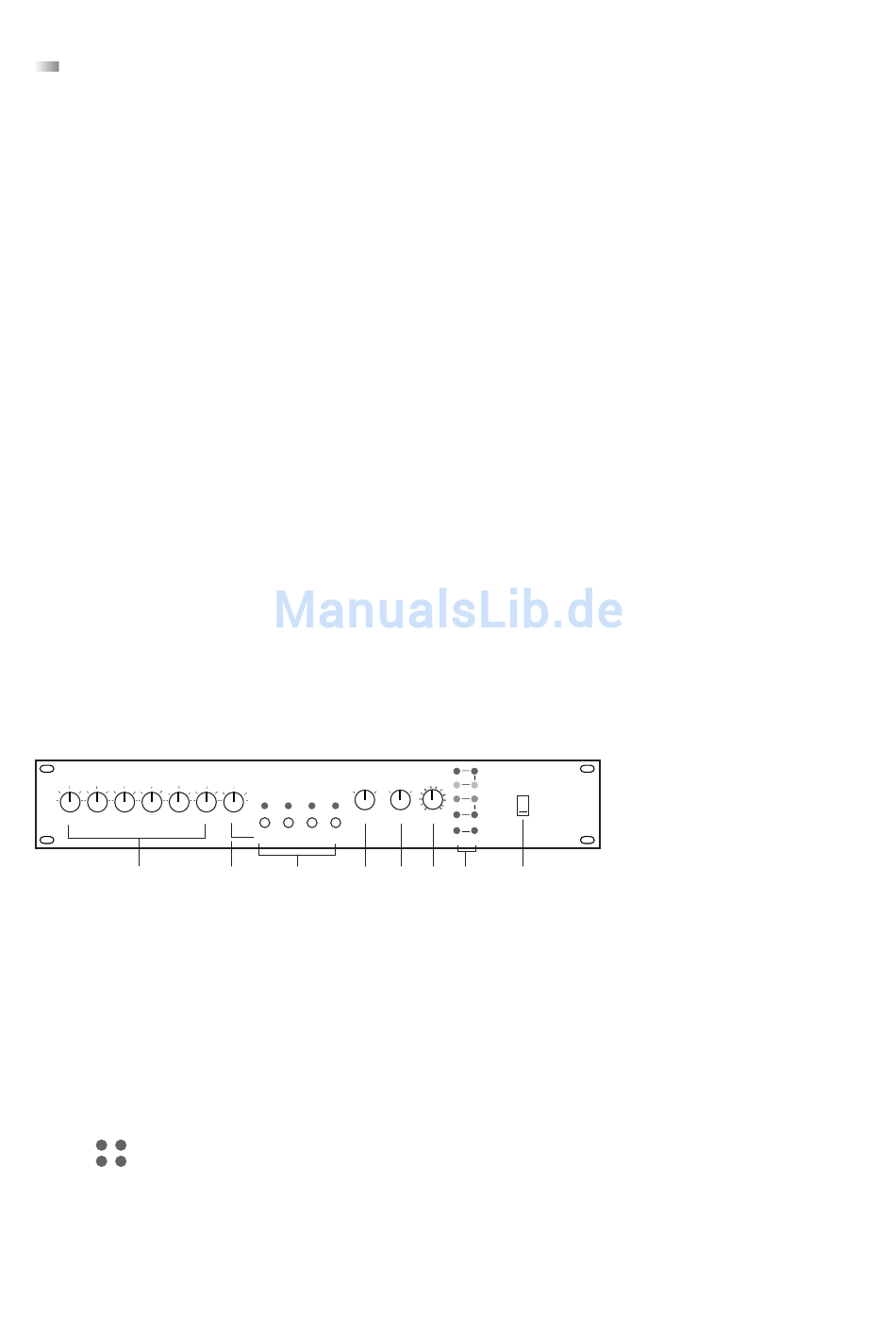

Front view
0
6
0
6
0
6
0
6
0
Mic 1
Mic 2
Mic 3
Mic 4
Mic 5
(1)
(1)
Volume controls Microphone inputs MIC 1 to MIC 6
(2)
Volume control Line to adjust the level of CD, Tape, Tuner or Aux
(3)
Source selection switch for LINE (CD, Tape, Tuner, Aux) with LED status control
(4)
Bass control
(5)
Treble control
(6)
Master volume control
(7)
LED indications for left (L) and right (R) channel
Peak - Red LED is illuminated, when the peak of the signal occurs
Audio - Yellow LED is illuminated, when the output signal is present with 0 dB
On - Green LED is illuminated, when the device is switched on
Protect - Red LED's for the control of the balanced outputs (12)
The upper LED's represent Pin 2 or the positive output signal
2
2
The lower LED's represent Pin 3 or the negative output signal
3
3
L
R
2 or 3 is illuminated when a short circuit against ground occurs (Pin 1)
2 and 3 are illuminated simultaneously when a short circuit between Pin 2 and 3 occurs.
(8)
Mains switch
24
-12
6
0
6
0
6
Mic 6
Line
Tuner
Tape
CD
Aux
(2)
(3)
(4)
Peak
Audio
0
0
On
+12
-12
+12
Protect
Bass
Treble
Master
Protect
L
R
(5) (6)
(7)
(8)
beyerdynamic))))
M
IX 10
