MIX 10 NG2 – Operation
25
7.3

Operation

7.3.1 Control Panel

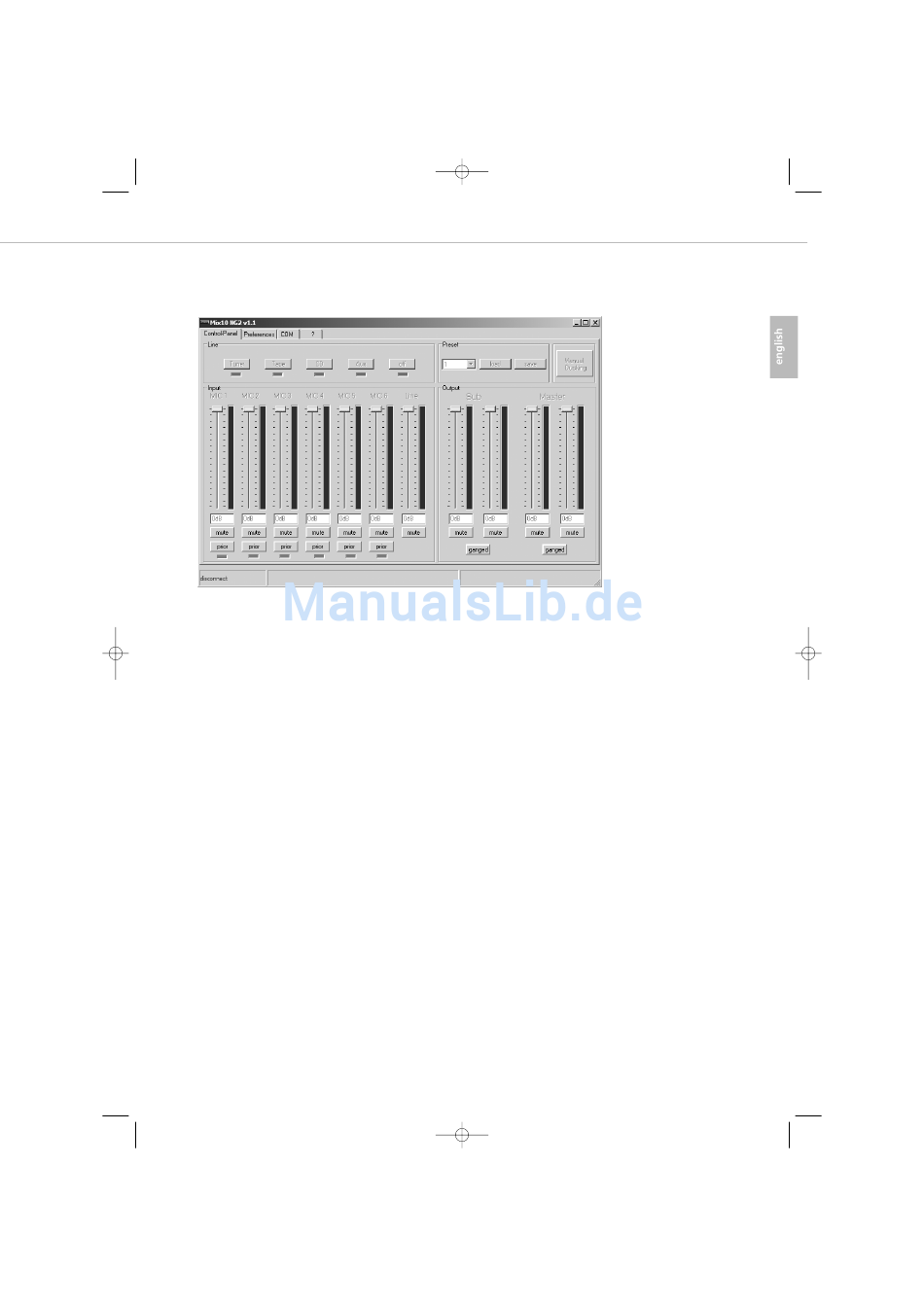

When you start the "MIX 10 NG2" program, the user interface "Control panel" is opened.
Here you can operate the most important volume controls and switching functions:
Line field
In the "Line" field you can select the line source connected to the MIX 10 NG2 by selecting the corresponding button "Tuner", "Tape",
"CD", "Aux". If you select the "off" button, you switch off all line sources.
The LEDs below the buttons indicate the selected line source of the MIX 10 NG2. Changes at the MIX 10 NG2 itself are also displayed.
Input
There is one fader and mute button for each input channel. In addition to that, the microphone input channels provide a "Prior" button and
an LED.
Using the fader you can control the input volume of individual microphone input channels and the volume of the selected line signal in dB.
With the appropriate mute button you can mute the respective channel. You can directly enter the attenuation values in dB into the window.
If the "Prior" button is activated for one or several microphone channels, they are in a priority switching. After setting more parameters
(chapter 7.3.2) the selected channels prompt an attenuation of the other input channels when speaking. This can be used for instance for
attenuating background music in stores during announcements.
Output
For the stereo master outputs "Master" and "Sub" there are two separate controls for the left and right channels with appropriate mute
buttons. This enables the control of the master signals which are routed to the appropriate channel via the Dip switches. With the "ganged"
button the channels can be combined when there is no different volume control for the left and right channel desired. With one control you
can operate the whole master or sub group volume.
Manual Ducking
Here you can manually prompt the attenuation of the channel without priority. Normally, this is done for testing purposes.
Preset
The internal memory of the Mix 10 NG2 allows storing up to 3 presets. One preset stores all settings which can be selected with the software
such as volume settings, priority switching and so on.
How to store presets:
1. Set all software settings as desired.
2. Select the desired preset (1, 2 or 3) with the drop-down menu in the "Preset" field.
3. Select the "save" button.
How to load presets:
1. Select the desired preset (1, 2 or 3) from the drop-down menu in the "Preset" field.
2. Select the "load" button.
