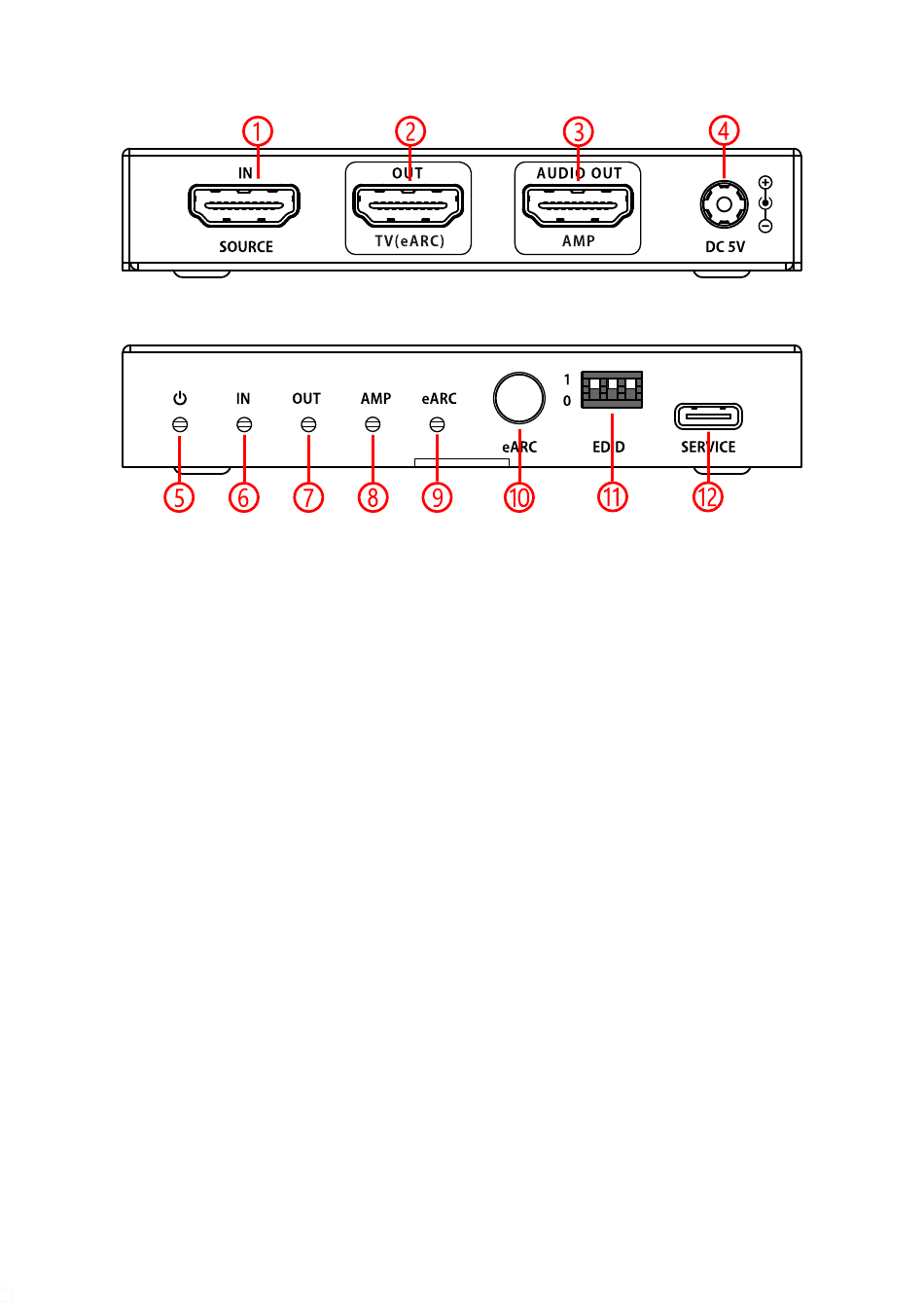

Connections, Displays & controls
1. HDMI IN input for connecting the external player
2. HDMI OUT connector, for connecting the TV, monitor or video projector (use HDMI ARC/eARC
port if available)
3. HDMI audio output for the amplifier or sound device
4. DC 5V, connection for 5 V power supply.
5. Power LED, lights when the device is powered
6. IN LED, lights up when the active source is connected
7. OUT LED, the LED lights up when a signal is output to connected display
8. AMP LED, lights up when an HDMI device is connected to the HDMI Audio output
9. eARC LED, lights up when ARC or eARC is active and the sound from the TV is extracted to
the HDMI audio output. The ARC LED flashes if an error in CEC communication occurs and
there is no output.
10. eARC button, switches between sound from the TV or from the player. Press and hold for 5
seconds to switch the HDMI 2.1 Audio Extractor off, press again to switch it back on.
11. EDID dip switch
12. SERVICE, USB-C interface for service purposes and firmware update
