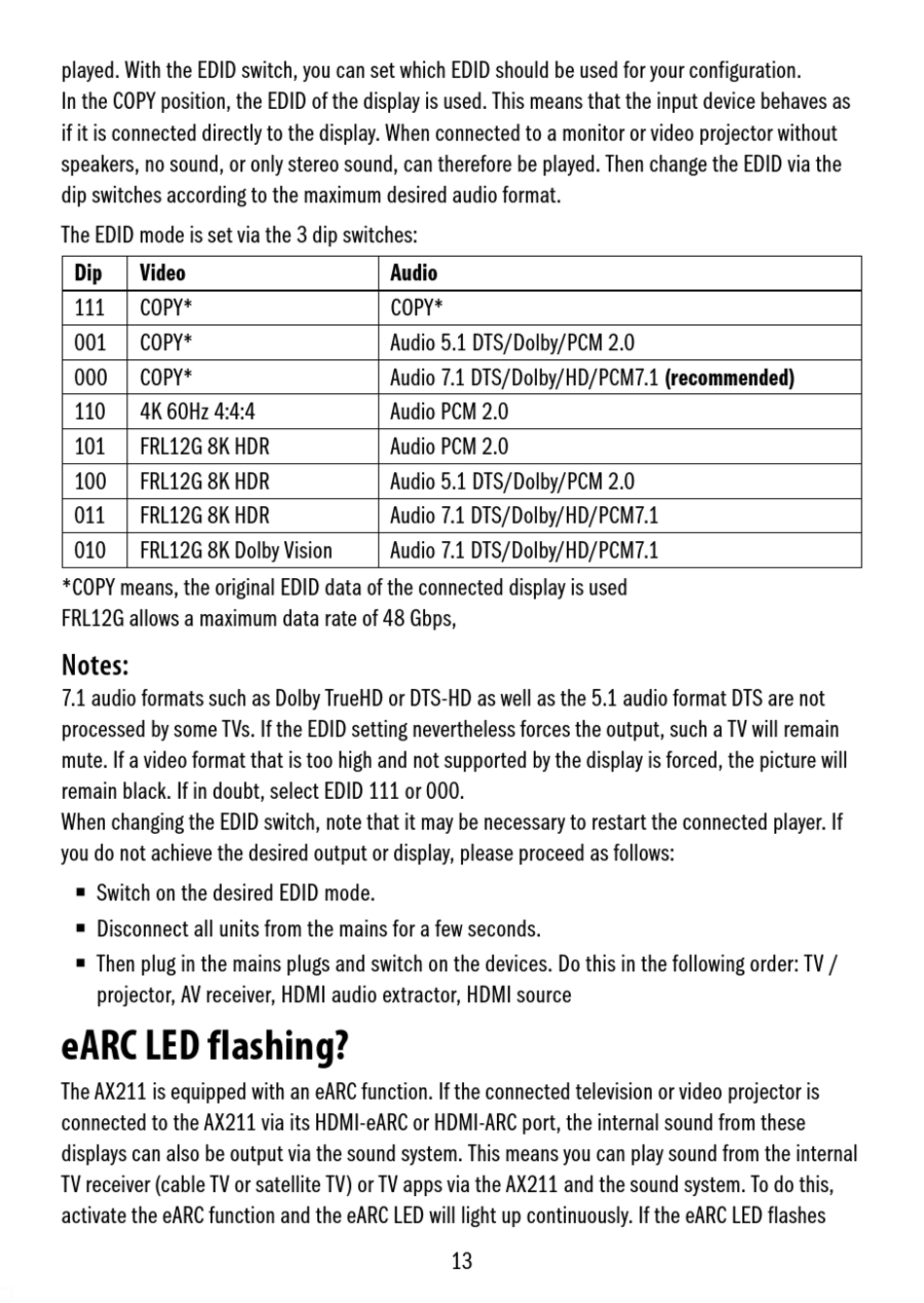

played. With the EDID switch, you can set which EDID should be used for your configuration.
In the COPY position, the EDID of the display is used. This means that the input device behaves as
if it is connected directly to the display. When connected to a monitor or video projector without
speakers, no sound, or only stereo sound, can therefore be played. Then change the EDID via the
dip switches according to the maximum desired audio format.
The EDID mode is set via the 3 dip switches:
Dip Video
111 COPY*
001 COPY*
000 COPY*
110 4K 60Hz 4:4:4
101 FRL12G 8K HDR
100 FRL12G 8K HDR
011 FRL12G 8K HDR
010 FRL12G 8K Dolby Vision
*COPY means, the original EDID data of the connected display is used
FRL12G allows a maximum data rate of 48 Gbps,
Notes:
7.1 audio formats such as Dolby TrueHD or DTS-HD as well as the 5.1 audio format DTS are not
processed by some TVs. If the EDID setting nevertheless forces the output, such a TV will remain
mute. If a video format that is too high and not supported by the display is forced, the picture will
remain black. If in doubt, select EDID 111 or 000.
When changing the EDID switch, note that it may be necessary to restart the connected player. If
you do not achieve the desired output or display, please proceed as follows:
◾ Switch on the desired EDID mode.
◾ Disconnect all units from the mains for a few seconds.
◾ Then plug in the mains plugs and switch on the devices. Do this in the following order: TV /
projector, AV receiver, HDMI audio extractor, HDMI source
eARC LED flashing?
The AX211 is equipped with an eARC function. If the connected television or video projector is
connected to the AX211 via its HDMI-eARC or HDMI-ARC port, the internal sound from these
displays can also be output via the sound system. This means you can play sound from the internal
TV receiver (cable TV or satellite TV) or TV apps via the AX211 and the sound system. To do this,
activate the eARC function and the eARC LED will light up continuously. If the eARC LED flashes
Audio
COPY*
Audio 5.1 DTS/Dolby/PCM 2.0
Audio 7.1 DTS/Dolby/HD/PCM7.1 (recommended)
Audio PCM 2.0
Audio PCM 2.0
Audio 5.1 DTS/Dolby/PCM 2.0
Audio 7.1 DTS/Dolby/HD/PCM7.1
Audio 7.1 DTS/Dolby/HD/PCM7.1
