REF 542plus
REF 542plus
60
Feldsteuer- und Schutzgerät
Technisches Referenzhandbuch
7 6 B 6 A 3 3 3 03 6 S Z 4 1

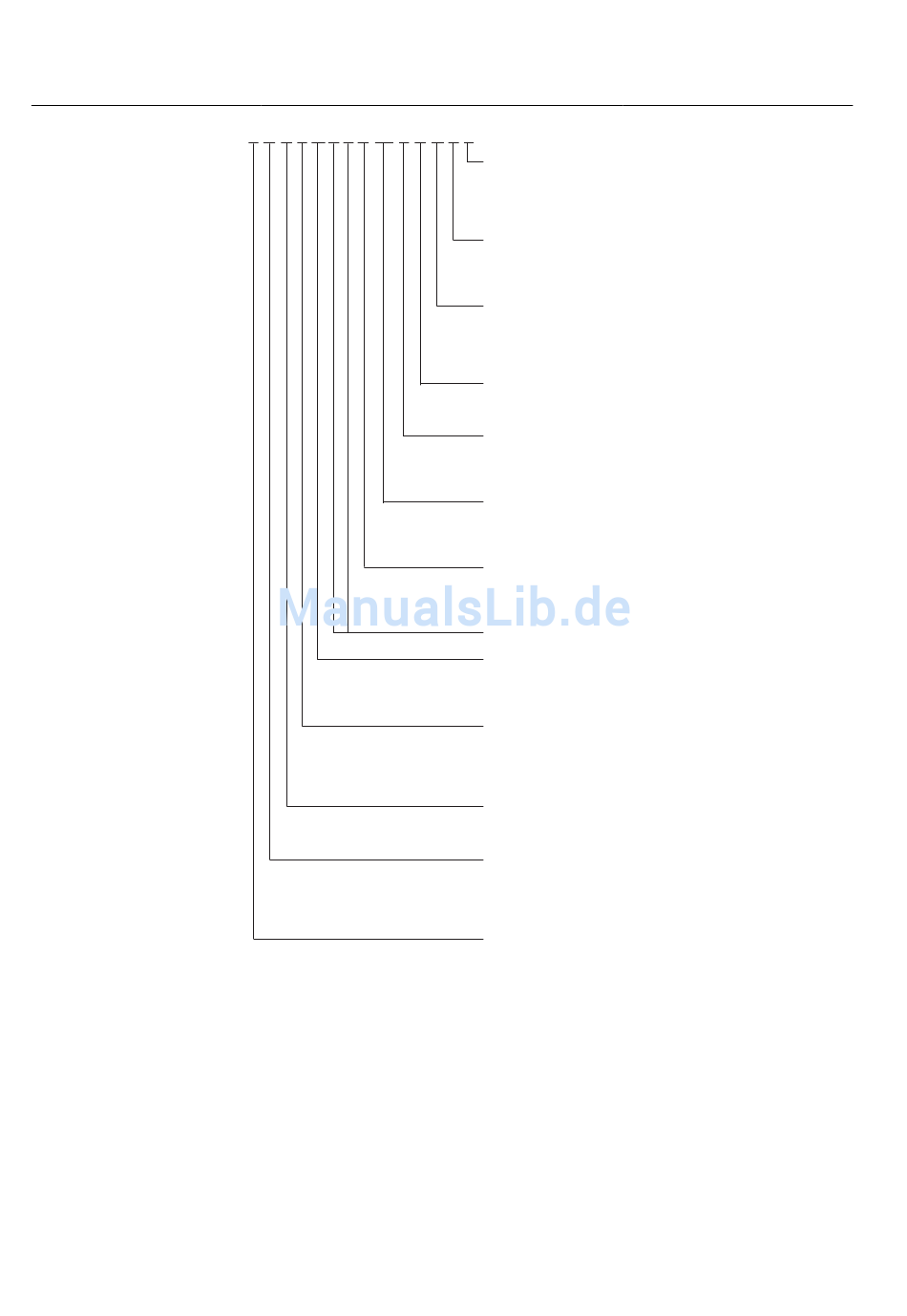

Abb. 7.-2
Bestellcodeschlüssel
Software
SW-Level:
1 = Base
2 = High
3 = Basic low
(Mehr Information siehe Tabelle 7.-14)
Displaykabel
N = Ohne
1 = 1,8 m Kabel
2 = 2,5 m Kabel
(Mehr Information siehe Tabelle Displaykabel)
Display (HMI)
N = Keine Display
A = HMI V5 für IEC, 48 - 90 V DC
B = HMI V5 für IEC, 110-220 V DC
C = HMI V5 für IEC, 110-220 V DC, mit Haube
(Mehr Information siehe Tabelle 7.-2)
Gehäuse
S = Normal
W = Breit
(Mehr Information siehe Tabelle 7.-11)
Kommunikation
N = Keine Kommunikation
1 = Modbus/SPABUS RS485
2 = Modbus/SPABUS Plastik.LWL, ST-Buchsen
(Mehr Information siehe Tabelle 7.-10)
Analogeingänge
01 = Sensoren
10-17 = Gemischt, Sensoren und Wandler
30-43 = Gemischte Wandler
(Mehr Information siehe Tabellen 7.-7 und 7.-9)
Binäre I/O 1
1 = Transistor-E/A
2 = Transistor-E/A ohne Auskreisüberwachung
3 = Relais-E/A Vers. 3
(Mehr Information siehe Tabelle 7.-6)
Binäre I/O 2 und Binäre I/O 3
(Mehr Information siehe Tabelle 7.-6 und Seite 52)
Analoge I/O-Karten
N = Keine
A = Analoge Eingangskarte 0(4)-20 mA
B = Analoge Ausgangskarte 4-20 mA
(Mehr Information siehe Tabelle 7.-5)
Versorgungsspannung
1 = 110 V DC
2 = 220 V DC
3 = 48-220 V DC
6 = 48-220 V DC, DNV/Marine
(Mehr Information siehe Tabelle 7.-4)
Mainboard
B = Basis
S = Standard
(Mehr Information siehe Tabelle 7.-3)
Anwendungen
6 = REF 542plus
A = REF 542plus, DNV/Marine
B = REF 542plus, ATEX-1
C = REF 542plus, ATEX-1 + DNV/Marine
(Mehr Information siehe Tabelle 7.-2)
Familienschlüssel
7 = REF 542plus
(Mehr Information siehe Tabelle 7.-1)
1MRS756481
A060520_2
A060520
