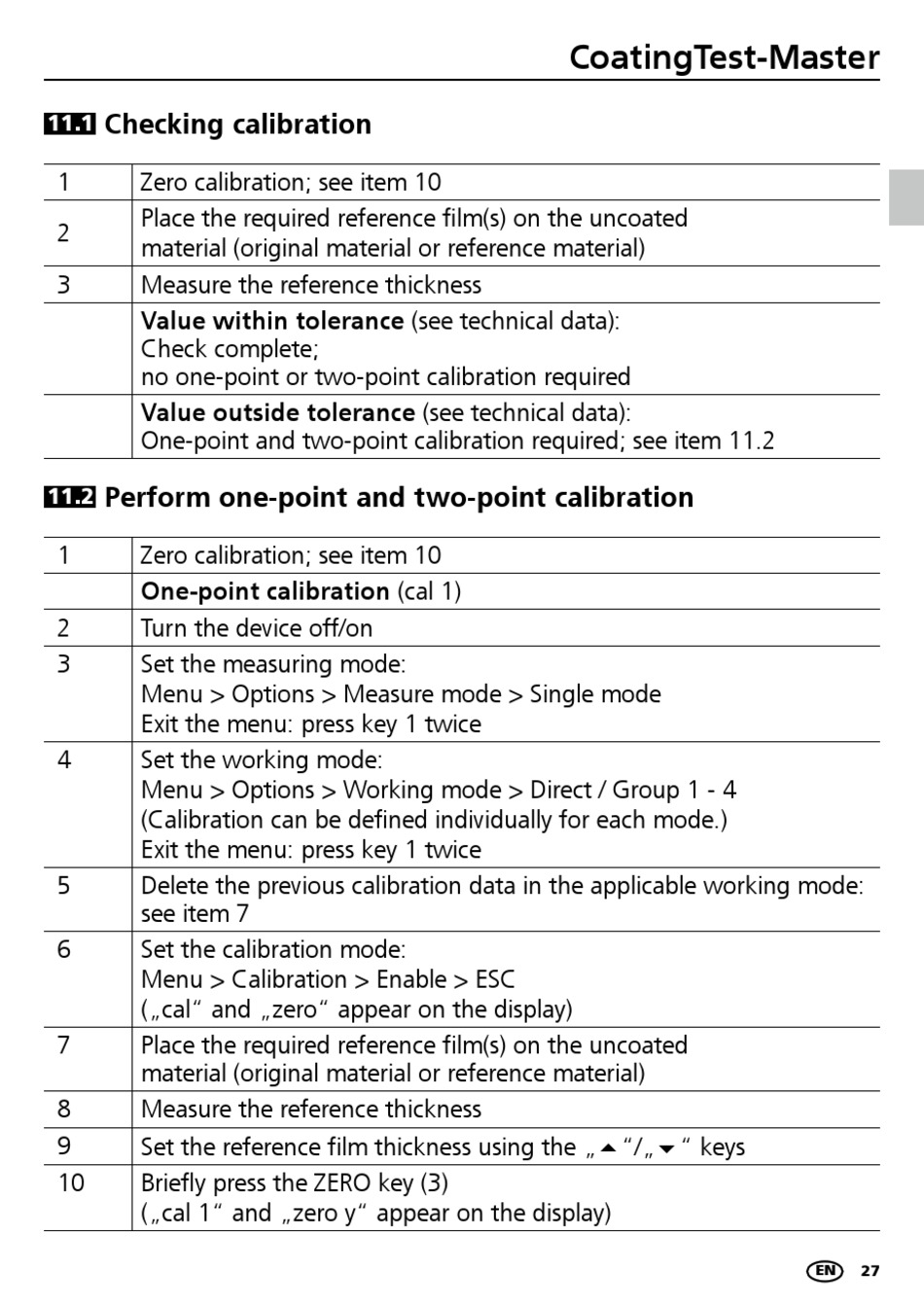

Checking calibration

11.1
1 Zero calibration; see item 10
Place the required reference film(s) on the uncoated
2
material (original material or reference material)
3 Measure the reference thickness
Value within tolerance (see technical data):
Check complete;
no one-point or two-point calibration required
Value outside tolerance (see technical data):
One-point and two-point calibration required; see item 11.2
Perform one-point and two-point calibration
11.2
1 Zero calibration; see item 10
One-point calibration (cal 1)
2 Turn the device off/on
3 Set the measuring mode:
Menu > Options > Measure mode > Single mode
Exit the menu: press key 1 twice
4 Set the working mode:
Menu > Options > Working mode > Direct / Group 1 - 4
(Calibration can be defined individually for each mode.)
Exit the menu: press key 1 twice
5 Delete the previous calibration data in the applicable working mode:
see item 7
6 Set the calibration mode:
Menu > Calibration > Enable > ESC
(„cal" and „zero" appear on the display)
7 Place the required reference film(s) on the uncoated
material (original material or reference material)
8 Measure the reference thickness
9
Set the reference film thickness using the „5"/„6" keys
10 Briefly press the ZERO key (3)
(„cal 1" and „zero y" appear on the display)
