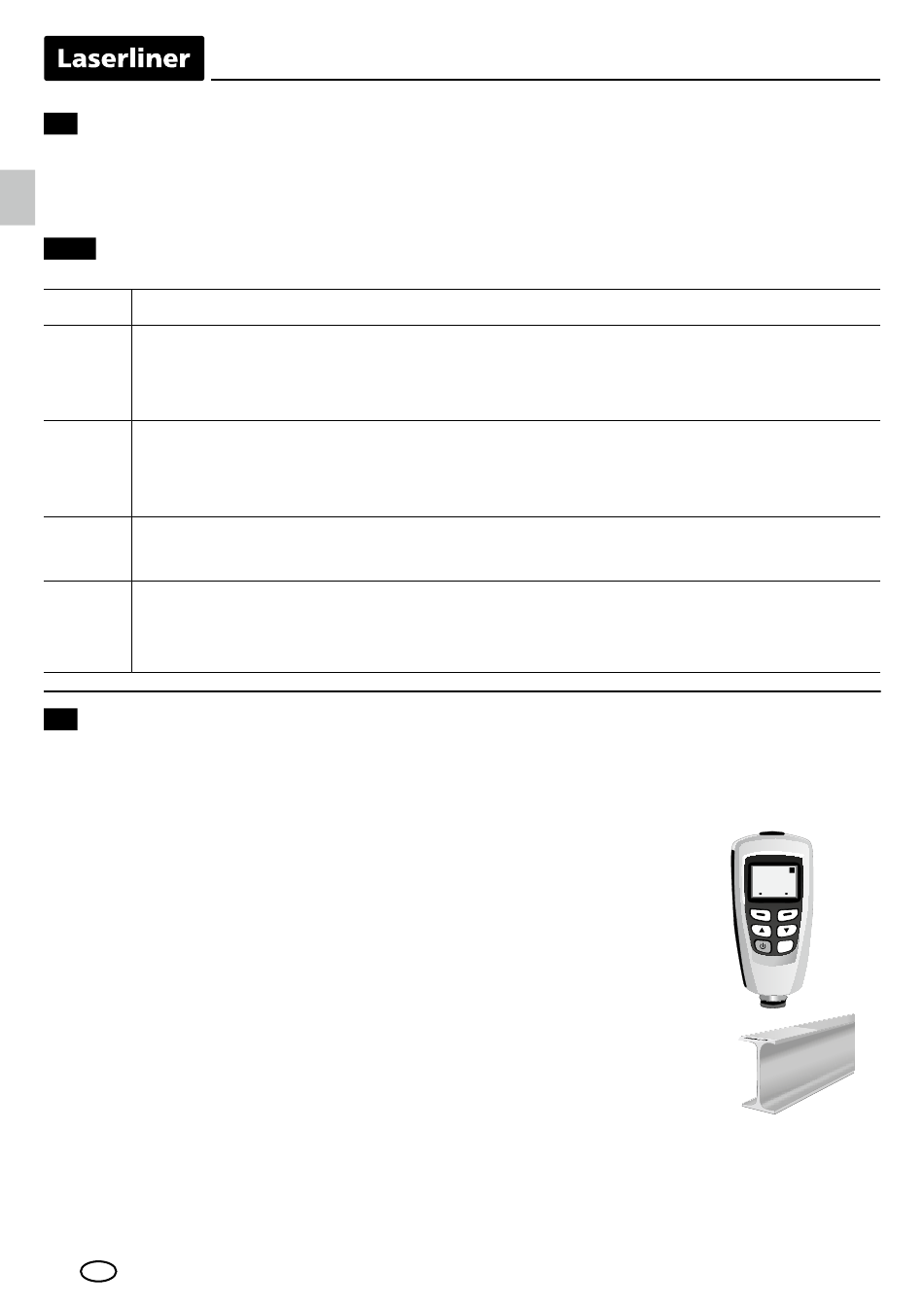

Zero calibration

10
The zero point setting should be checked and, if necessary, corrected before
each measurement.
Checking/Calibrating the zero point
10.1
1 Turn the device off/on
2 Set the measuring mode:
Menu > Options > Measure mode > Single mode
Exit the menu: press key 1 twice
3 Perform measurement (see item 12):
measurement on uncoated material
(original material or reference material)
Value within tolerance (see technical data):
check complete; no calibration necessary
Value outside tolerance (see technical data):
Calibration required: press and hold the ZERO key (3);
repeat steps 1-3 to check
One-point and two-point calibration
11
One-point calibration calibrates a coating thickness as close
to the expected measured value as possible.
Two-point calibration defines a second coating thickness
in order to increase the measuring accuracy. The expected
measured value should be as close as possible to the mid-
point between the calibration points (cal 1 and cal 2).
Multiple films may be combined for greater coating
thicknesses.
Example: expected coating thickness: 75 µm
Calibration point 1:
Measurement with reference film 50 µm ± 1%
Calibration point 2:
Measurement with reference film 101 µm ± 1%
26
EN
Fe
DIR
101.0
µm
NO 1 AVG 100
Zero
