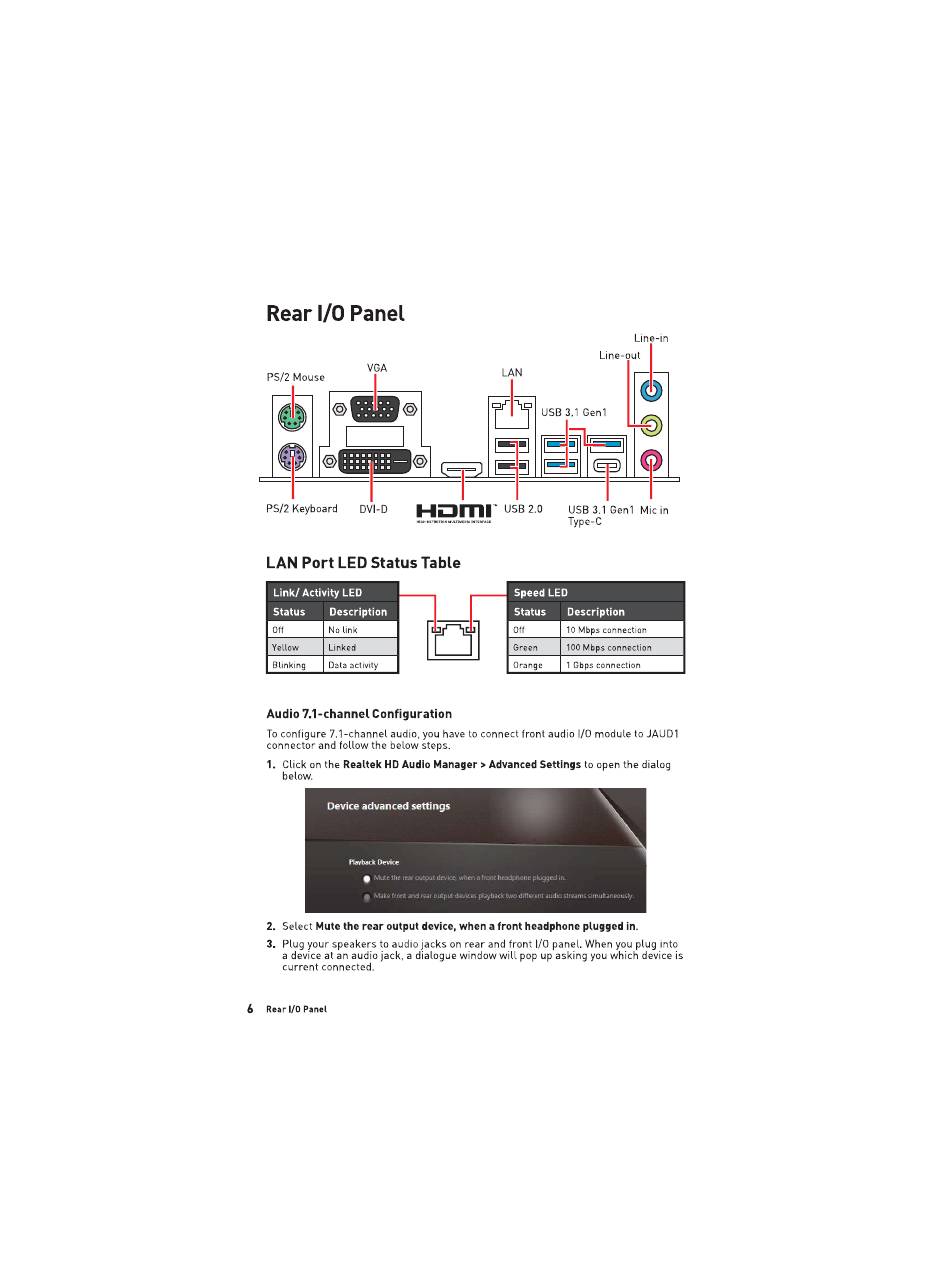

Rear 1/0 Panel

VGA
PS/2 Mouse
Qbouo
PS/2Keyboard
I-aornl
DVI-D
LAN Port LED Status Table
Link/ Activity LED
Status Description
No link
Yellow Linked
Blinking Data activity
Audio 7.1-channel Configuration
Toconfigure 7.1-channel audio, you haveto connect front audio 1/0module to JAUDI
connector and follow the below steps.
1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog
below.
Device advanced settings
Wte
front
2. Select Mute the rear output device. when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front 1/0panel. When you plug into
a device at an audio jack. a dialogue window will pop up asking you which device is
current connected
6
Rear 1/0 Panel
Line in
Line-out
LAN
O
USB3 1 Genl
USB 2.0
USE 3.1 Genl Micin
Type C
speed LED
Status Description
l' Mbps connection
Green 100 Mbps connection
Orange I Gbps connection
two
