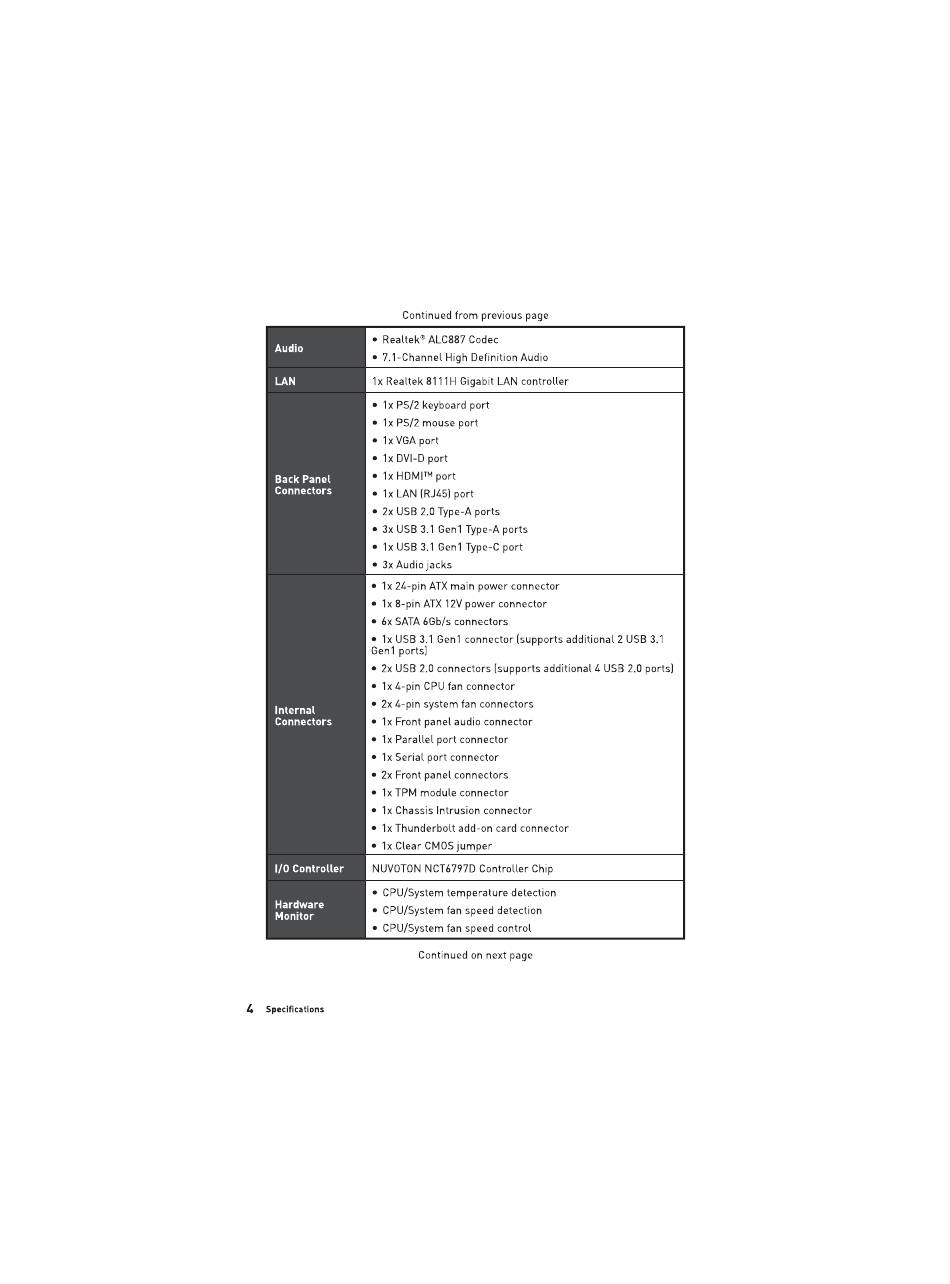

MSI B360M PRO-VDH Benutzerhandbuch Seite 4

Continued from previous page
• Realtek@ ALC887
Audio
• 7.1 -Channel High Definition Audio
LAN lx Realtek 811 1H Gigabit LAN controller
• lx PS/2 keyboard port
• lx PS/2mouse port
lx VGA port
• lx DVI-D port
lx
Back Panel
Connectors
• lx LAN (RJ451 port
• 2x USB 2.0 Type-A ports
3x USB 3.1 Genl Type-A ports
• lx USB 3.1 Genl Type C port
3x Audio jacks
lx 24-pin ATX main power connector
lx 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
lx USB 3 1 Genl connector (supports additional 2 USB 3.1
Genl ports)
2x USB2.0 connectors (supports additional USB2.0 ports)
lx4 pin CPU fan connector
2x pin system fan connectors
Internal
Connectors lx Front panel audio connector
lx Parallel port connector
lx Serial port connector
• 2x Front panel connectors
lx TPM module
•
lx Chassis
lx Thunderbolt
•
lx Clear CMOS jumper
1/0 Controller
NUVOTON NCT6797D Controller Chip
• CPU/System temperature detection
Hardware
CPU/Systemfan speed detection
Monitor
• CPU/System fan speed control
Continued on next page
