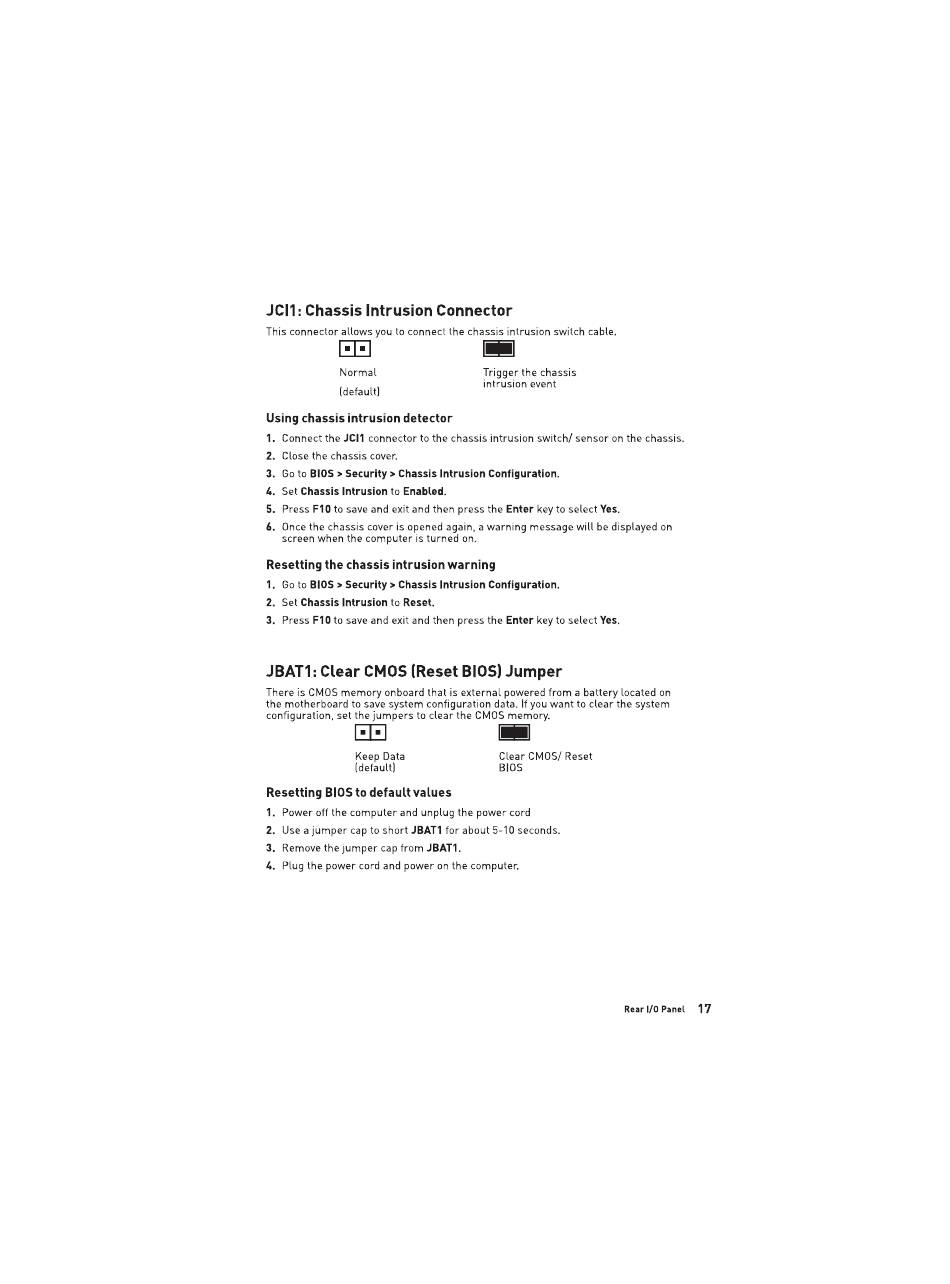

JCII: Chassis Intrusion Connector
This connector allows you to connect the chassis intrusion switch cable.
Normal
(default)
Using chassis intrusion detector
Connect the JCII connector to the chassis
2. Close the chassis cover.
3. Go to BIOS > Security > Chassis Intrusion Configuration
4. Set Chassis Intrusion to Enabled.
Press FIO to save and exit and then press the Enter key to select Yes.
5.
Once the chassis cover is opened again. a warning message will be displayed on
6.
screen when the computer is turned on
Resetting the chassis intrusion
1. Go to BIOS > Security > Chassis Intrusion Configuration
2. Set Chassis Intrusion to Reset.
3. Press FIO to save and exit and then press the Enter key to select Yes
JBATI : Clear CMOS(Reset BIOS)Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration
configuration, set the jumpers to clear the CMOS memory.
Keep Data
(default)
Resetting BIOS to default values
Power off the computer and unplug the power cord
2. Use a jumper cap to short 'BATI
3. Remove the jumper cap from JBATI
4. plug the power cord and power on the computer.
Trigger the chassis
intrusion event
intrusion switch/ sensor on the chassis
warning
data. If you want to clear the system
Clear CMOS/ Reset
BIOS
for about 5-10 seconds
