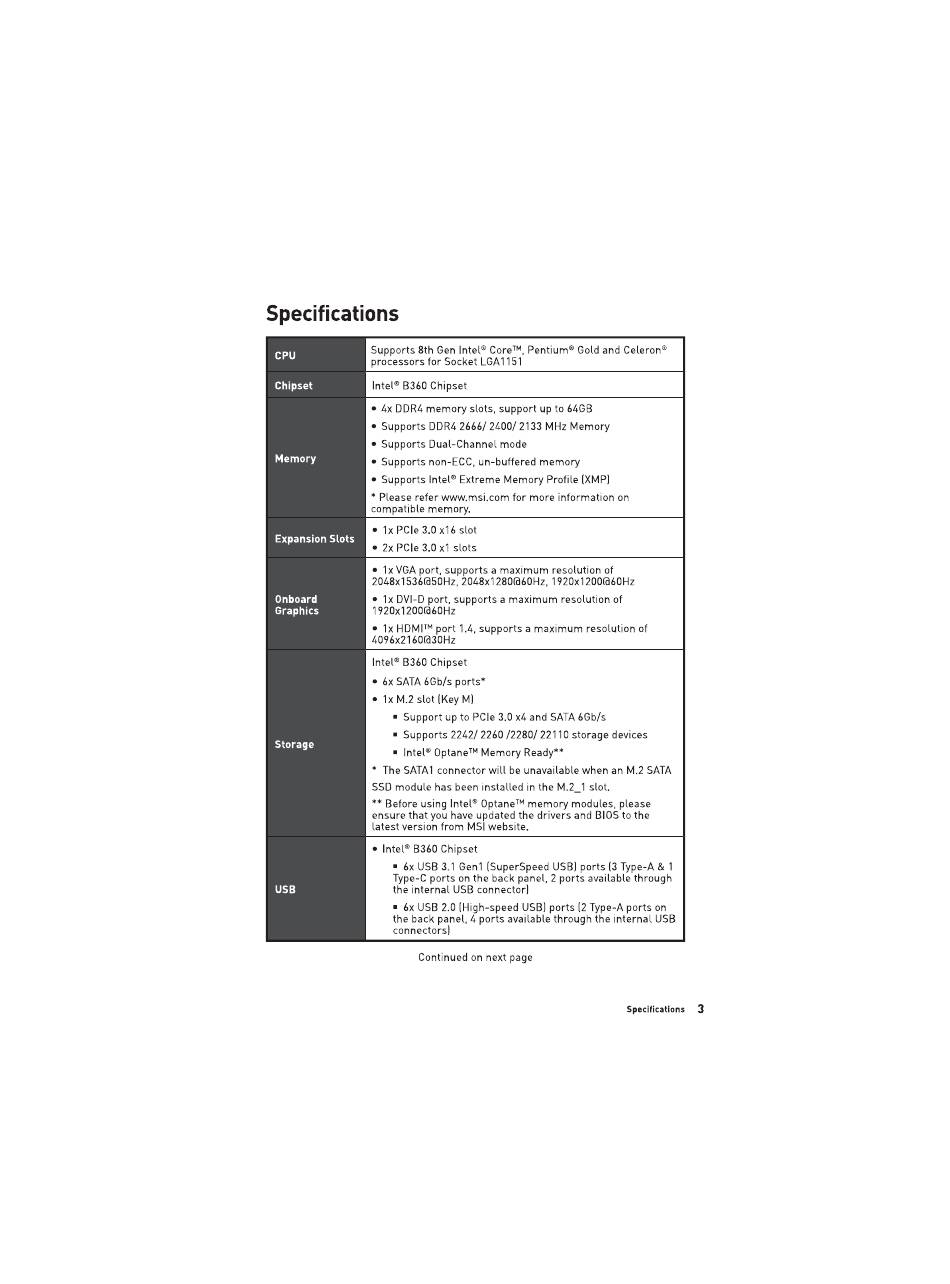

Specifications

Supports 8th Gen Intel 8 CoreTM,Pentium@ Gold and Celeron'
CPU
processors for Socket LGA1151
Chipset ntel@8360 Chipset
• 4x DDR4 memory slots, support up to 64GB
• supports DDR4 2666/ 2400/ 2133 MHz Memory
• Supports Dual-Channel mode
Memory
• Supports non-ECC, un-buffered memory
• Supports Intel@Extreme Memory Profile (XMPI
* Please refer www.msi.com
compatible memory
lx PCIe 3.0 xib
Expansion Slots
• 2x PCIe 3.0 xl
• lx VGA port, supports a maximum resolution of
Onboard • lx DVI-D port, supports a maximum resolution of
Graphics 1 920x1200ß60Hz
lx HDMIIM port 1.4, supports a maximum resolution of
4096x2160ß30Hz
ntelØ8360 Chipset
• 6x SATA6Gb/s ports*
• lxM2 slot (Key MI
Support up to PCIe3.0x4 and SATA6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
Storage
• Intels OptaneTMMemory Ready**
The SATAI connector
SSD module has
Before using Intel@ OptaneTMmemory modules, please
ensure that you have updated the drivers and BIOS to the
latest version from
• Intel' 8360 Chipset
• 6x USB3.1 Genl (SuperSpeedUSB)ports (3Type-A & 1
Type-C ports on the back panel, 2 ports available through
the internal USB connector)
USB
• 6x USB 2.0 (High speed IJSB) ports (2 Type-A ports on
the back panel,
connectors)
Continued on next page
for more information on
slot
slots
1920x12001d60Hz
will be unavailable when an M 2 SATA
been installed in the M2 1 slot.
MSI website
ports available through the internal USB
Specifications
