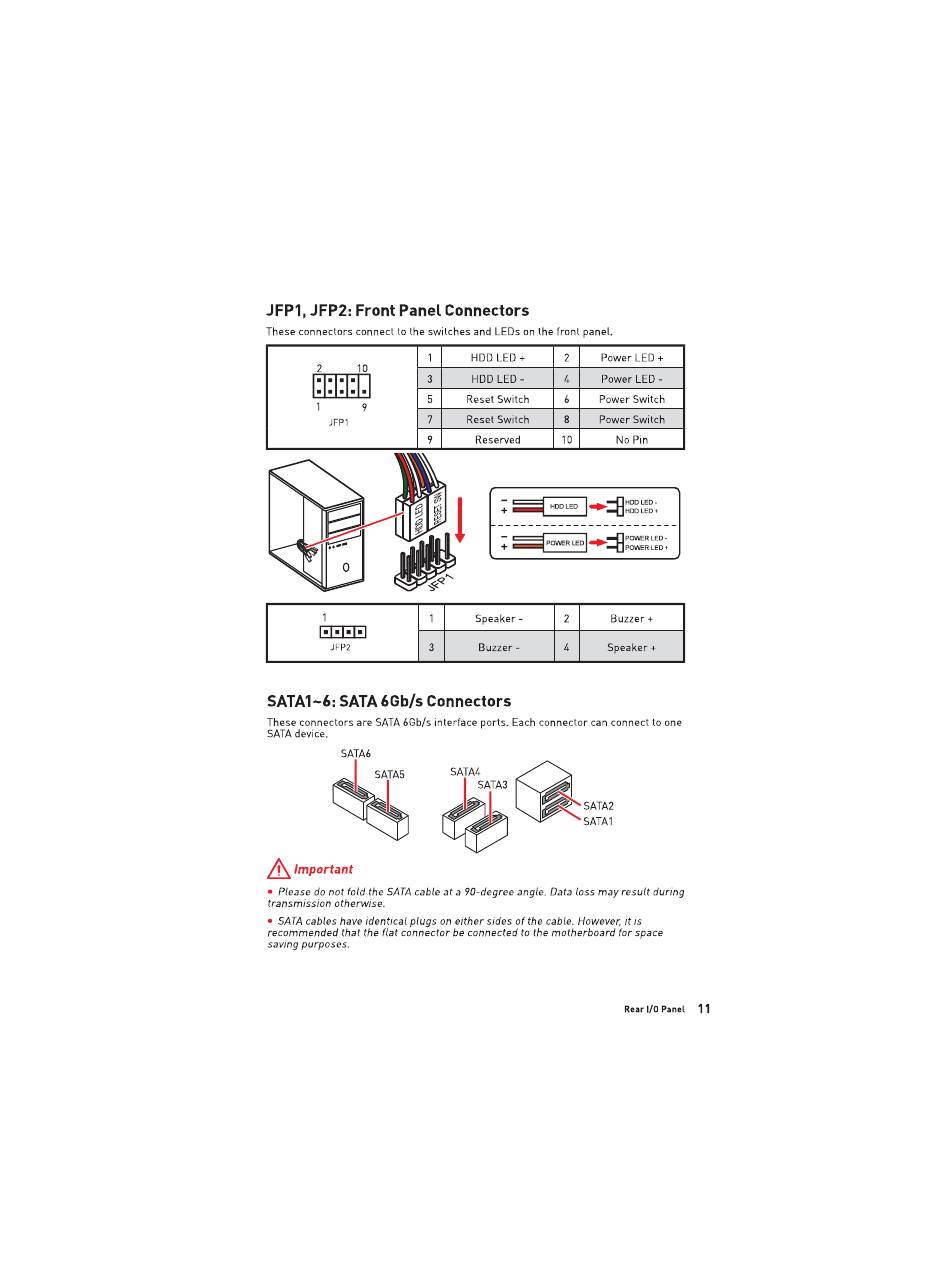

JFPI, JFP2: Front Panel Connectors

These connectors connect to the switches and LEDs on the front panel.
2 10
3
5
7
JFPI
9
3
JFP2
SATA1-6: SATA 6Gb/s Connectors
hese connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device
SATA6
SATA5
! Important
• Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
• SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard
sav'ng purposes.
HDD LED + 2 Power
HDD LED Power
Reset Switch Power
Reset Switch 8 Power
Reserved 10 No Pin
HDD
HDD
Speaker Buzzer
2
Buzzer Speaker +
SATA4
SATA3
> SATA2
SATA I
for space
