2. Remove the receiver bracket from the package and
place it under the top lip of the spreader hoper on the
driver's side (See Figure 1-8).

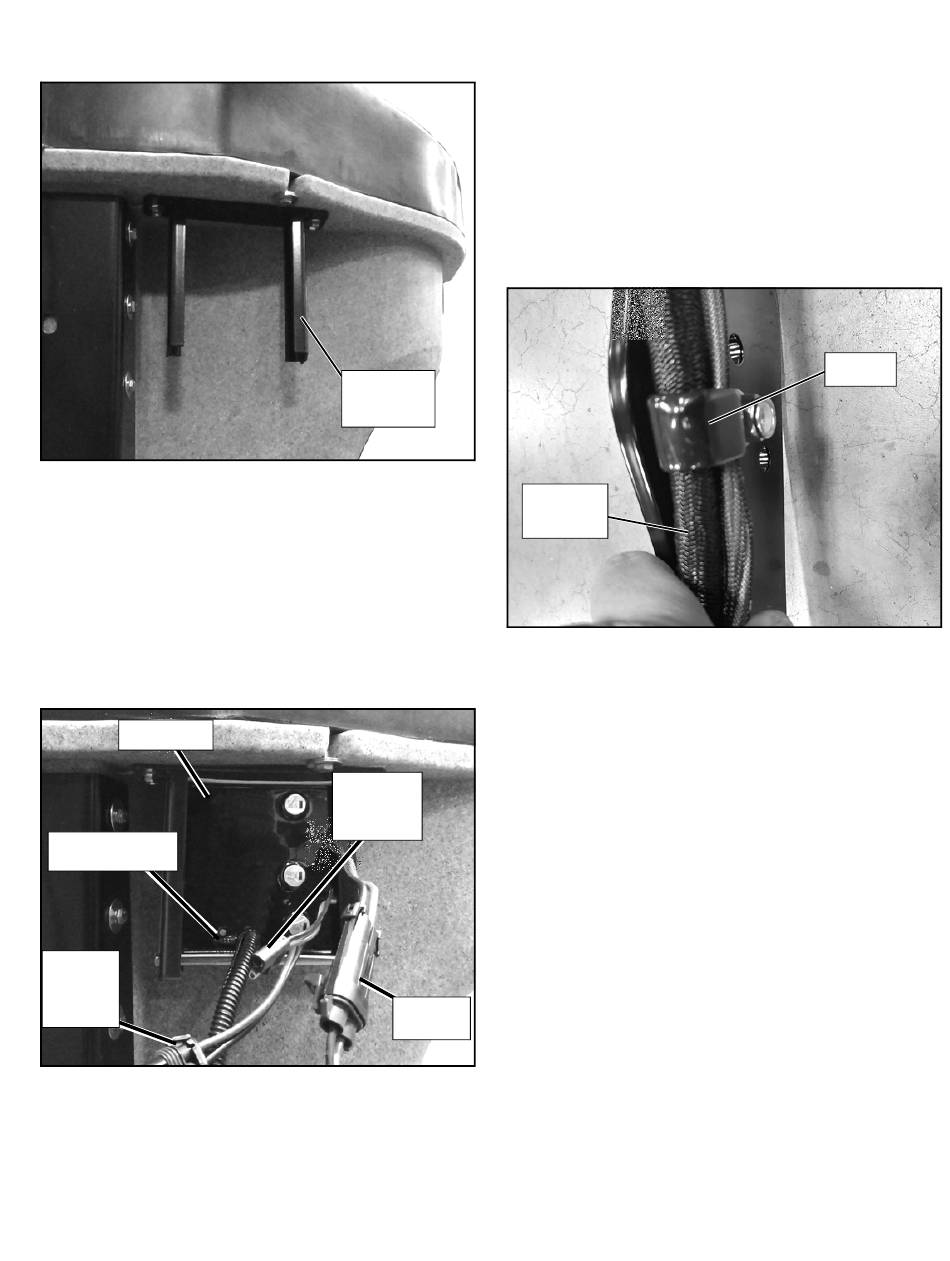

Figure 1-8
3. Secure the receiver by driving (2) 5/16" self-drilling
screws thru the holes in the bracket and into the hopper.
4. Slide the receiver into the bracket with the 6-Pin in
circuit programing pins located on the bottom. Secure the
receiver with (1) 1/4" x 6" hex head cap screw and (1)
1/4" lock nut (See Figure 1-9).
5. Plug the spreader spinner motor harness and vibrator
harness (optional) into the mating plugs on the receiver
(See Figure 1-9).
RECEIVER
PROGRAMMING
PINS
TO
TRUCK -
POWER
IN
Figure 1-9
Control Harness Installation On Plow and
Truck
unit over to the main power harness (See Figure 1-1).
Cable tie where necessary to the main power harness.
Ensure the control wire harness is routed in the power
harness clamp and continue running with the main power
harness. Leave enough room to connect harness to the
ESS vehicle harness. Ensure the cable is clear of pinch
points and latching mechanism. Any excess cabling
should be kept and tied under the pump cover (See
Figure 1-10).
RECEIVER
BRACKET
end of the plow harness.
NOTE: If the ESS Vehicle Control Package has not
already been installed on the vehicle, now would be a
good point to do so.
TO
VIBRATOR
(Optional)
TO
SPINNER
1. Run the 10 pin connector harness on the receiver
POWER
HARNESS
Figure 1-10
2. Attach the 10 pin dust cap from the control kit to the
