Receiver Installation on Salt Spreader

6 & 9 Cubic Foot Spreaders

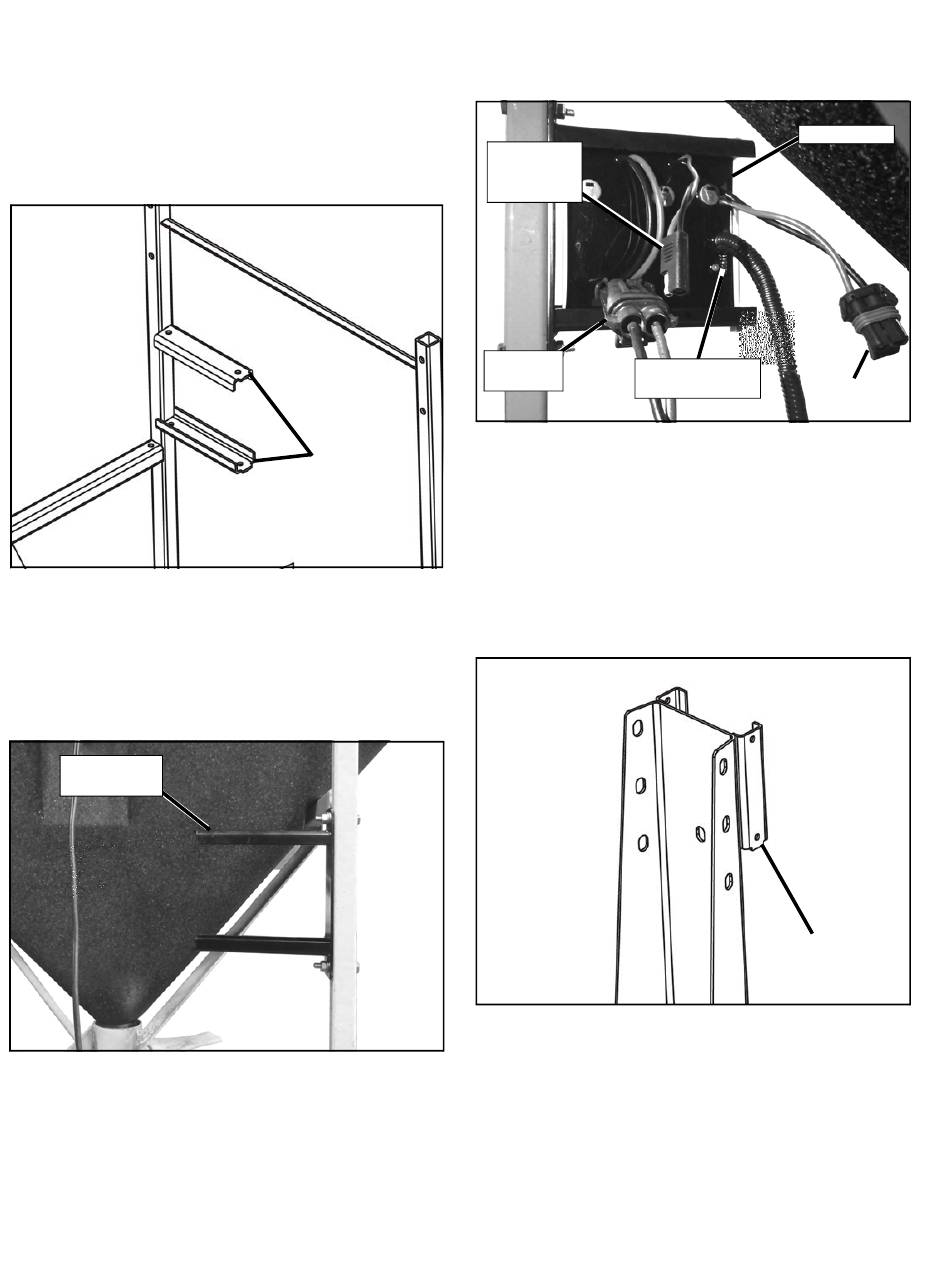

1. Skip steps 2 and 3 if your spreader has welded
receiver brackets to hold the receiver (See Figure 1-4).
The receiver bracket from the control box can be
discarded.
Figure 1-4
2. Remove the receiver bracket from the package and
place it on the driver's side vertical tube of the spreader
frame. The bracket should be located to the inside of the
frame about midway along the tube. Make sure that both
the spreader motor harness and vibrator harness can
reach the receiver module (See Figure 1-5).
RECEIVER
BRACKET
Figure 1-5
3. Using the bracket as a guide, mark and drill two 9/32"
holes all the way thru the tube (If a 9/32" drill is not
available use a 5/16"). Secure bracket to the spreader
with (2) 1/4" x 1-3/4" hex head cap screws, (2) 1/4" flat
washers and (2) 1/4" lock nuts (See Figure 1-5).
6
4. Slide the receiver into the bracket with the 6-Pin in
circuit programing pins located vertically in the open end
of the bracket. Secure the receiver with a ¼" x 6" hex
head cap screw and a ¼" lock nut (See Figure 1-6).
VIBRATOR
SPINNER
WELDED
RECEIVER
5. Plug the spreader spinner motor harness and vibrator
BRACKETS
harness (optional) into the mating plugs on the receiver.

4 Cubic Foot Spreader

1. Skip Steps 2 and 3 if your spreader has a welded
receiver bracket to hold the receiver (See Figure 1-7).
The receiver bracket from the control box can be
discarded.
TO
(Optional)
TO
PROGRAMMING
Figure 1-6
Figure 1-7
RECEIVER
PINS
TO TRUCK
- POWER IN
WELDED
RECEIVER
BRACKET
