Basic Functions:
29RVHD Plows

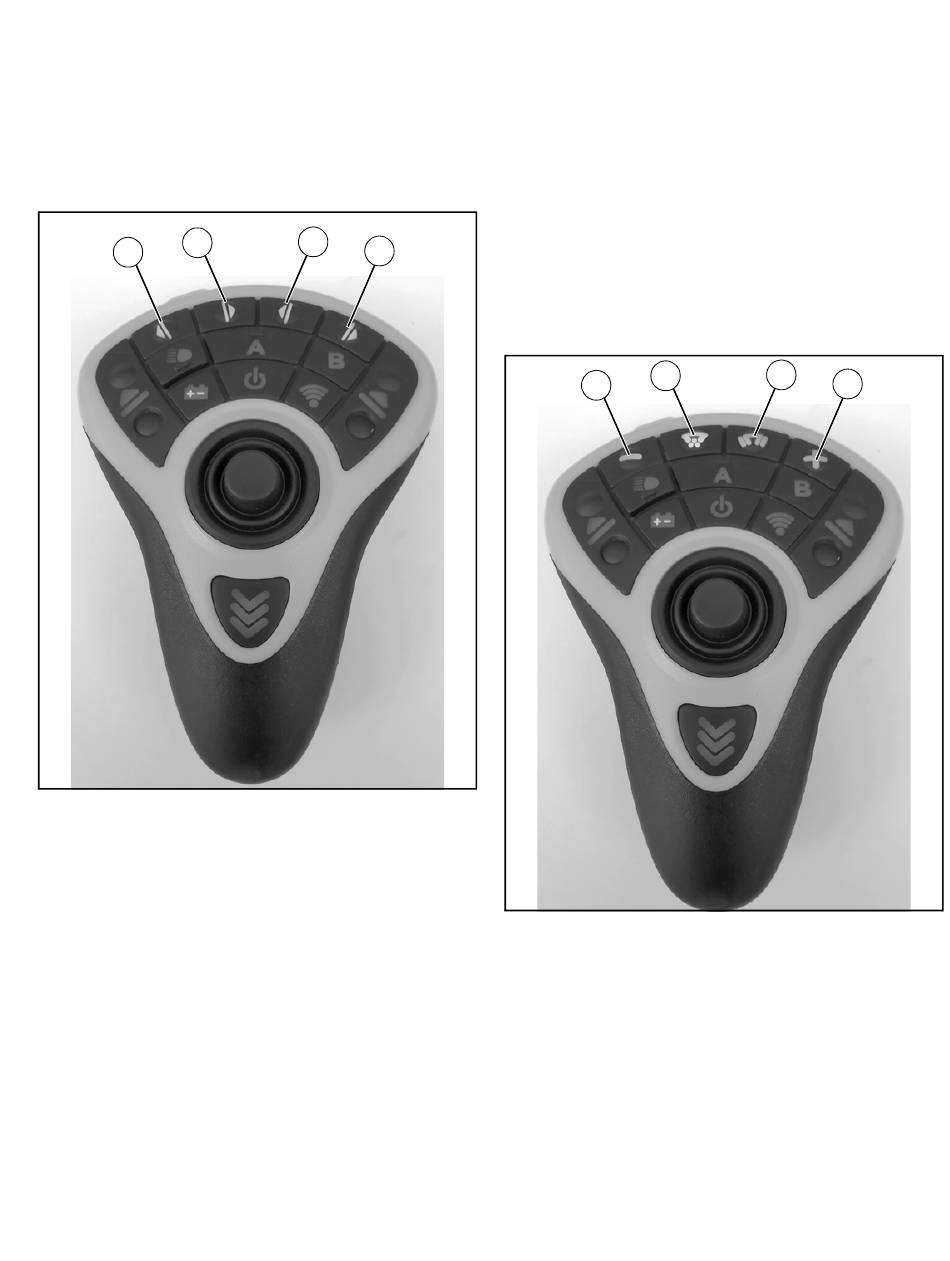

1. The button on the top row, left of center (Figure 1-19,
G) is the Driver's Side Revolution Wing button. Push the
button to perform a driver's side revolution wing extend
function. Push the button on the left of the top row (Figure
1-19, H) to perform a driver's side revolution wing retract
function.
G
H
Figure 1-19
2. The button on the top row, right of center (Figure 1-
19, F) is the Passenger's Side Revolution Wing button.
Push the button to perform a passenger's side revolution
wing extend function. Push the button on the right of the
top row (Figure 1-19, I) to perform a passenger's side
revolution wing retract function.
Basic Functions: Salt Spreaders
(ProControl 2 Plus™)
The top row of buttons on the ProControl 2 Plus™
transmitter are used to control a Sno-Way tailgate
spreader, except for 29RVHD transmitters. 29RVHD
transmitters do not have the ability to also operate tailgate
spreaders.
F
I
1. The button on the top row, left of center (Figure 1-20,
K) is the on/off button for the spinner motor. To start or
stop the spinner press and release the button. When the
motor is running, the light behind the button (salt light)
will turn on. The light will blink slowly in speed step 1.
As the speed is increased, the light will blink faster until
reaching speed step 4 (top speed) where the light will be
on constant.
The salt light and DP light will flash together if there is a
jam condition and then shut off. The spinner motor always
runs at full speed (speed step 4) when it is first started.
After a few seconds it will slow to the speed step it was in
when it was stopped.
When the control is in a speed lower than speed step 4
holding the button down will put the spreader into blast
mode (speed step 4) until the button is released.
K
J
Figure 1-20
2. The button on the top row, right of center (Figure 1-
20, L) is the vibrator button. Holding the button down will
turn on the vibrator (if equipped). Releasing the button
will turn it off.
3. The button on the left of the top row (Figure 1-20, J)
is the speed reduction button. Pushing and releasing the
button will drop the spinner one speed step. There are a
total of four speed steps available.
4. The button on the right of the top row (Figure 1-20,
M) is the speed increase button. Pushing and releasing
the button will raise the spinner one speed step. There
are a total of four speed steps available.
L
M
13
