Receiver Installation on Plow Power Pack

1. Loosen the fasteners holding the pump cover in place
and then lift and remove the pump cover.
2. Remove the 1/4" cap screw and the 1/4" nylock nut
from the top of the receiver mounting bracket.

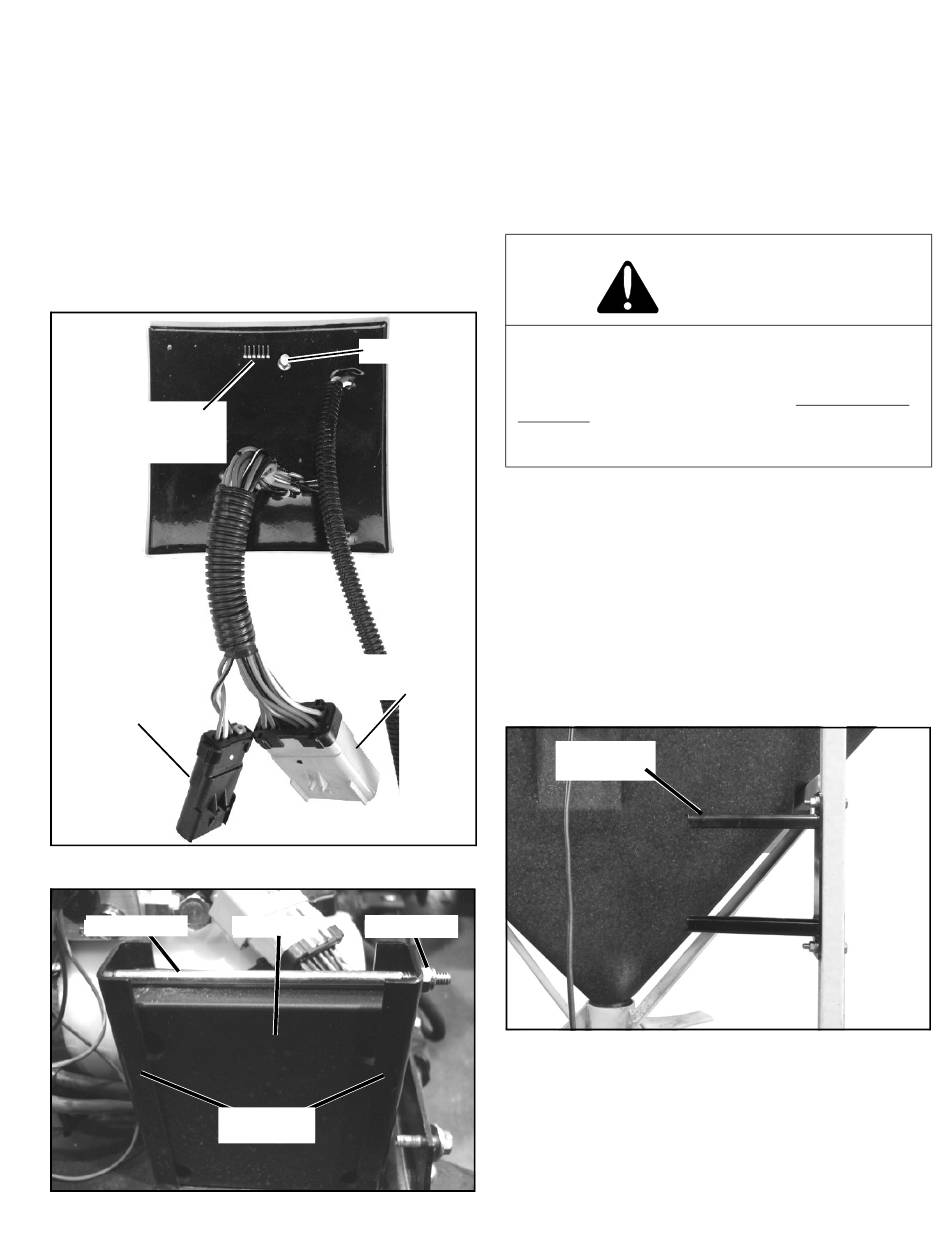

3. With the 6-pin in-circuit programming pins positioned
on the top of the unit (See Figure 1-1), slide the receiver
module into the receiver mounting channel with the
exposed wires of the receiver box positioned toward the
hydraulic reservoir (See Figure 1-2).
6 PIN
IN-CIRCUIT
PROGRAMMING
4 TERMINAL
CONNECTOR
Figure 1-1
CAP SCREW
MOUNTING
CHANNELS
Figure 1-2

INSTALLATION

LED
14 TERMINAL
CONNECTOR
RECEIVER LOCK NUT
4. Re-install the cap screw and nylock nut previously
removed.
5. Connect the 14 terminal connector on the receiver
module to the snow plow power pack. On 29VHD,
Revolution and R Models only, also connect the four (4)
terminal connector on the receiver to the connector on
the snow plow power pack.
.
CAUTION
The connectors must be plugged in correctly.
The connectors are keyed; you must line up the
slots with the tabs when plugging in the
connectors. Failure to do so WILL CAUSE
FAILURE of the receiver. When plugged in
correctly, the wire colors on each connector will
match.

Receiver Installation on Salt Spreader

6 & 9 Cubic Foot Spreaders
1. Remove the receiver bracket from the package and
place it on the driver's side vertical tube of the spreader
frame. The bracket should be located to the inside of the
frame about midway along the tube. Make sure that both
the spreader motor harness and vibrator harness can
reach the receiver module (See Figure 1-3).
RECEIVER
BRACKET
Figure 1-3
2. Using the bracket as a guide, mark and drill two 9/32"
holes all the way thru the tube (If a 9/32" drill is not
available use a 5/16"). Secure bracket to the spreader
with (2) 1/4" X 1-3/4" hex head cap screws, (2) 1/4" flat
washers and (2) 1/4" lock nuts (See Figure 1-3).
5
