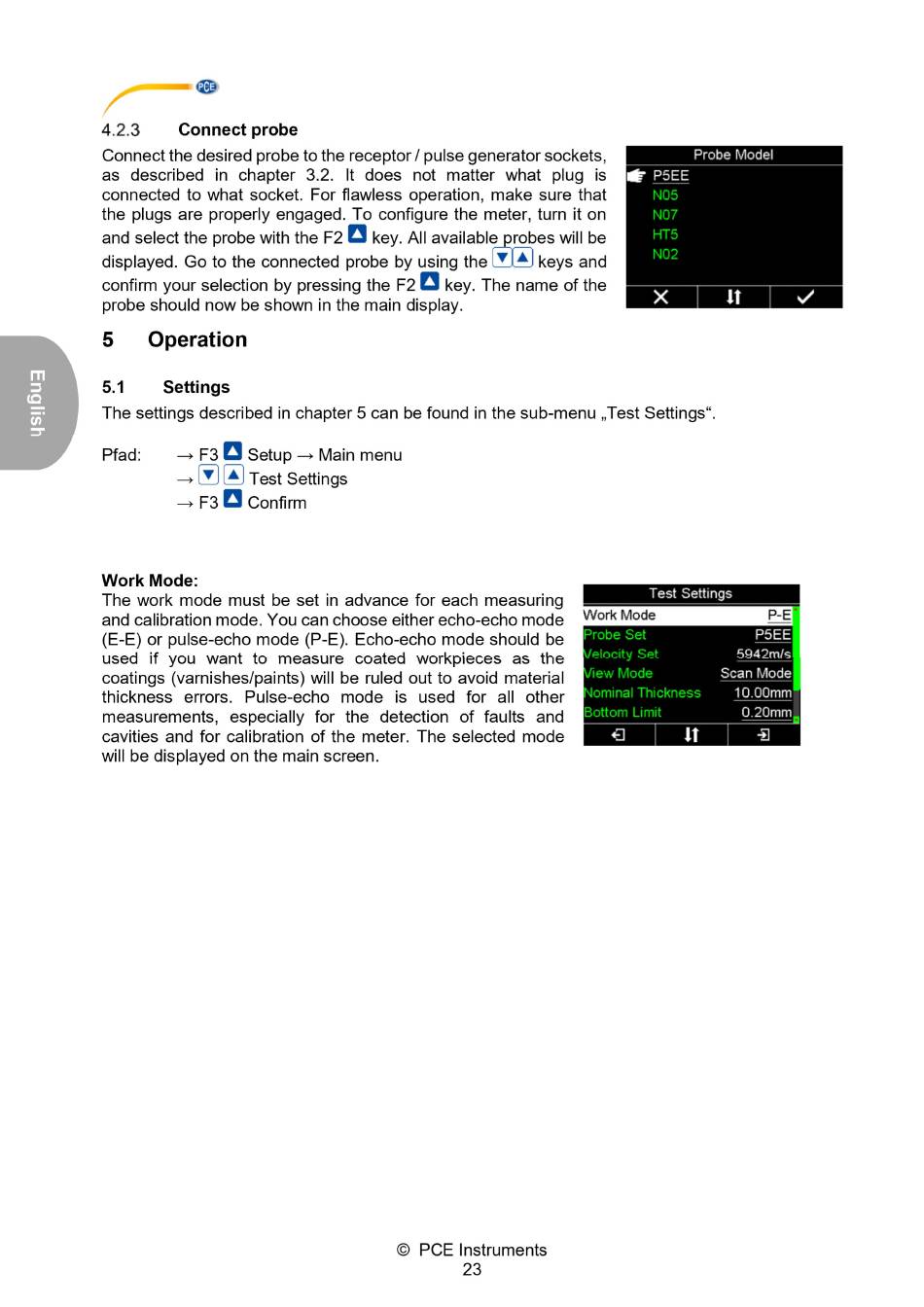

Connect probe
4.2.3
Connect the desired probe to the receptor / pulse generator sockets,
as described in chapter
connected to what socket. For flawless operation,
the plugs are properly engaged. To configure the meter, turn it on
andselectthe probewiththe F2
displayed.Go to the connected probe by using the v A keys and
confirm your selection by pressing the F2
probe should now be shown in the main display.
5

Operation

5.1

Settings

The settings described
F3 Setup —i Main menu
Pfad:
v A Test Settings
F3 Confirm
Work Mode:
The work mode must be set in advance for each measuring
and calibration mode. You
(E-E) or pulse-echo mode (P-E). Echo-echo
used if you want to measure coated workpieces
coatings (varnishes/paints) will be ruled out to avoid material
thickness errors. Pulse-echo
measurements, especially
cavities and for calibration
will be displayed on the main screen.
3.2. It does not matter
key.All available_prgbes will be
key. The name of the
in chapter 5 can be found in the sub-menu
can choose either echo-echo
mode should be
mode is used
for the detection
of the meter. The selected
O PCE
what plug is
make sure that
„Test Settings".
Work Mode
mode
Probe Set
elocity Set
as the
lew Mode
Nominal
for all other
Bottom Limit
of faults and
mode
Instruments
23
Probe Model
P5EE
N05
N07
HT5
N02
It
Test Settings
P5EE
5942m/s
Scan Mode
Thickness 10.00mm
0.20mm
