Installing expansion cards

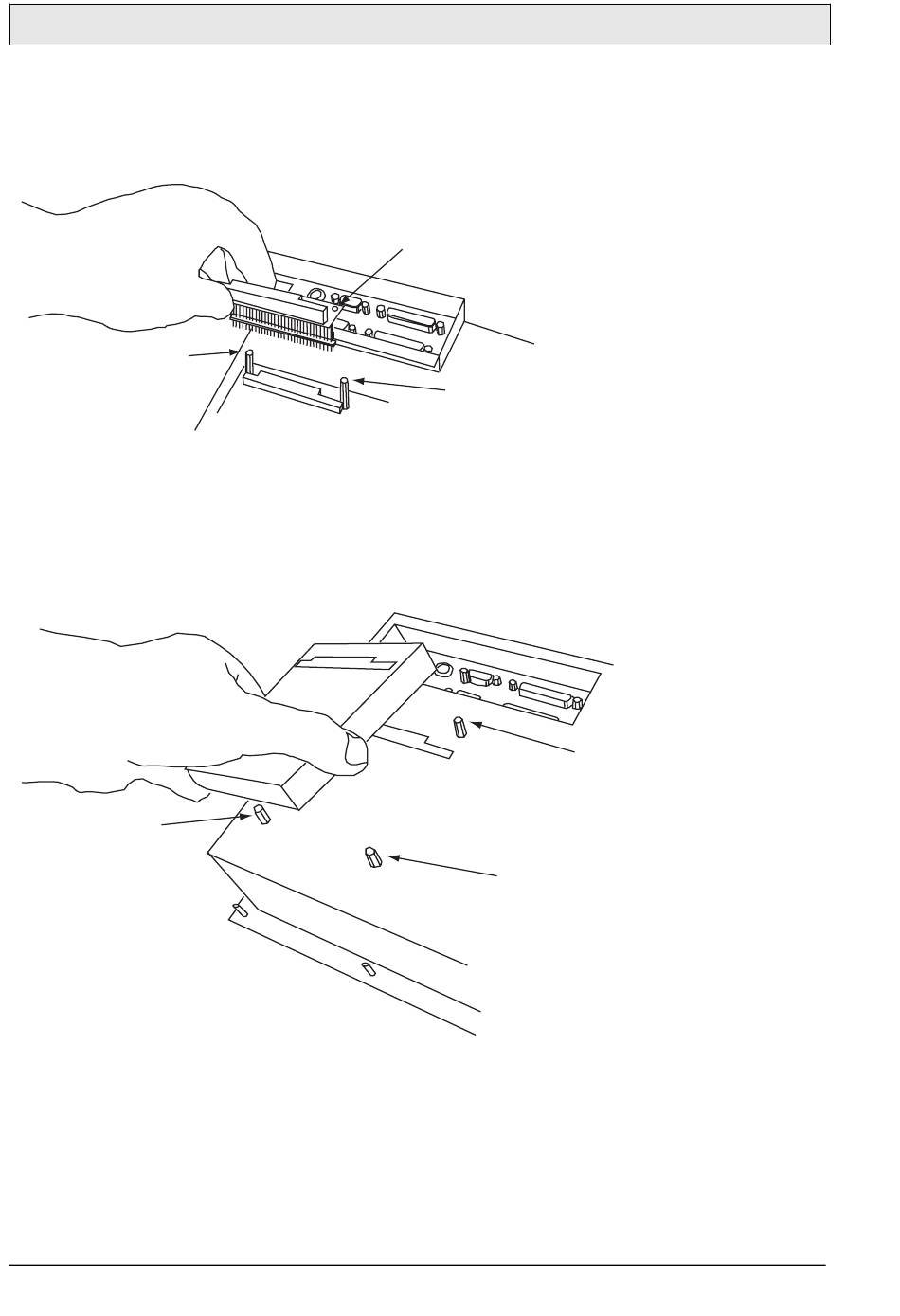

– The connection contact is extended with an expansion contact. In order to
fasten this firmly, two spacers must be mounted by the connection contact.
Do not remove the nuts.
Spacer
– Remount the casing and screw the four spacers (M3x17) firmly onto the rear
of the terminal. Mount the PC104 card in the PC104 universal cover (cut out
flaps to make the card fit). Secure the PC104 card in the universal cover by
screws and lock washers. Press the PC104 card's expansion contact into place
on the back of the terminal and secure the universal cover with four screws.
1-16
Screw
Spacer
M3x17 spacers
Beijer Electronics, MA00670
